|Power Type:||Diesel Engine/electric||Application:||Water Well Drilling/mining Drilling|
|Apacity Control:||0~100% Stepless Speed Regulation||Flow:||26m3/min,950CFM|
atlas copco screw air compressor,
diesel engine air compressor

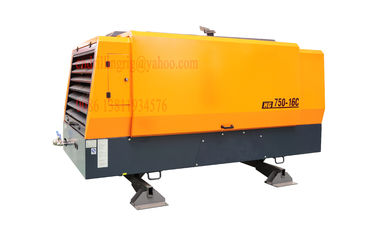

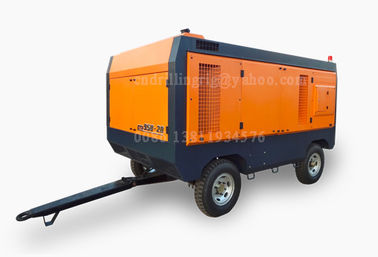

Water Well Drilling High Pressure Portable Screw Air Compressor Diesel Engine Type
Portable Screw Air Compressors (Diesel power series)
Portable Screw Air Compressors (Diesel power series) are widely used in various industries for roads, railways, mines, water conservation and supplies, shipbuilding, city development, energy development, military services, and others.
Our Portable Screw Air Compressors (Diesel power series) are highly efficient and reliable with a full range of selections. The power range falls between 37 kW to 300 kW, the displacement covers up to 40 m3/min, and the discharge pressure amounts up to 2.5 MPa.
1. Compressor: With our patented large diameter, the master engine is directly connected to the diesel engine through highly flexible coupling. Without overdrive gear, the master engine rotates in parallel with the diesel engine, resulting in higher efficiency, better reliability, and longer service.
2. Diesel engine: Diesel engines under such domestic and overseas brands as Cummins and Yuchai comply with the national Tier 2 motor vehicle emission standards. These diesel engines have strong impetus with a low level of fuel consumption. They are also covered under the national aftersales network, so users may quickly access complete services.
3. The air capacity control system is simple and reliable. Based on the size of the air capacity, air injection, as well as the automated diesel accelerator, can be automatically adjusted from 0% to 100%. As a result, diesel oil consumption can be optimized.
4. With an intelligence microcomputer in place, many types of operating data can be effectively monitored, including discharge pressure, discharge temperature, diesel rotational speed, oil pressure, water temperature, and oil capacity. In addition, it is built with an automated alarm system and protective shutdown mechanism.
5. With multilevel air filters, our products can operate in a dusty working environment. Our multilevel fuel filters are also built to accommodate the current oil quality in the domestic market. Featuring an oil and water cooler with an ultra-high capacity, our compressors are also suitable for environments with a high temperature or high pressure.
6. With vast maintenance and repair space, all components and parts that require maintenance are completely accessible, including maintenance work on air filters, oil filters, fuel tanks, batteries, and oil coolers, thus reducing shutdown time.
7. Despite adverse topographic conditions, our products can be flexible and portable. Each compressor is equipped with a hanging ring for safe loading and transporting purposes.
|Type||Double-Flighted Screw/Portable/Oil cooler|
|Application||Water Well Drilling|
|Nominal volume flow||m3/min||15||14||15||17||21||22||26|
|Rated Discharge Pressure||bar||14||16||16||16||8||20||20|
|Rated Output Power||KW||140||153||179||194||194||264||264|
|Lubricating oil Capacity||L||18||24||24||24||24||24||24|
|Fuel Tank Capacity||L||335||350||350||350||350||350||350|
|Q'ty & Spe of air supply valve||1-G2'', 1-G1''|
|Recommend Hole Dia.||mm||138||146-152||152-180||152-180||203-219||203-219||203-219|
|Recommend Hole Depth||m||100-120||100-130||100-130||100-130||100-130||100-130||120-150|
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
