Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer

Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer
Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer

Large Image :  Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: LUY50-7
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: 100
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram

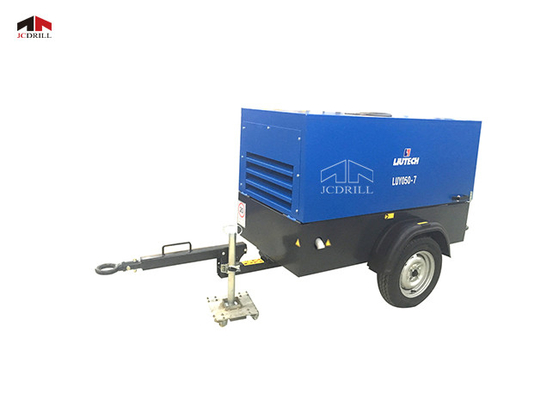

Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer

Description
Brand: Liutech Power: Diesel
Weight: 650kgs Dimentions: 1940*1200*1240mm
Level: High Pressure Flow Rate: 7M3/min
Pressure: 5bar Engine Power: 33kw
Color: Blue Portable: Kubota
Wheels: Four Wheels Certification: ISO9001
High Light:

small portable rotary screw air compressor

,

diesel portable rotary screw air compressor

,

low pressure portable screw air compressor

Small low pressure portable rotary screw air compressors mounted one two wheel for jack hammer




Application
Liutech is wholy-owned subsidiary of Atlas Copco,it's air compressor driven by diesel engine and electricity, it's 90% spare parts originally imported from Atlas Copco,so the liutech portable screw air compressor are Europen quality, Chinese price.

Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer 0

Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer 1
Characteristics
High efficiency
The combination of a high efficient engine and the Atlas Copco compressor element guarantees high efficiency and reduced wear.
Low operational cost, high fuel autonomy
A stepless and fully automatic regulator varying the engine speed ensures a reduced power and fuel consumption.
We are agent of portable double screw air compressor of Atlas Copco,Sullair, Liutech,by which ,we can provide drilling rig users with high quality professional drill rig air compressor solution and relative after-sales service also.


Specification

Model Nominal volume flow m3/min(CFM) Working Pressure bar/psi Engine Outlet Valve Configuration
LUY025-7 2.5/88 7/102 KUBOTA D1105 2*G3/4
LUY055-7 5.3/187   DEUTZ D2011L03 3*G3/4
LUY079-7 7.9/275   4BT3.9C80 3*G3/4 1*G1 1/2
LUY085-14 8.5/300 14/204 4BT3.9-C130 3*G3/4 1*G1 1/2
LUY100-10 10/350 10/146 4BT3.9-C130 3*G3/4 1*G1 1/2
LIU100-12 10/350 12/175 4BT3.9-C130 3*G3/4 1*G1 1/2
LUY108-7 10.8/380 7/102 4BT3.9-C130 3*G3/4 1*G1 1/2
LUY118-7 11.8/400 7/102 4BT3.9-C125 3*G3/4 1*G1 1/2
LUY120-14 12/424 14/203 6BTA5.9-C180 3*G1 1/4 1*G2
LUY161-14 16.5/582 14/203 6CTA8.3-C230 3*G1 1/4 1*G2
LUY184-12 18.4/650 12/174 6CTA8.3-C230 3*G1 1/4 1*G2
LUY202-10 21.2/748 10/145 6CTA8.3-C230 3*G1 1/4 1*G2
LUY214-9 21.4/756 8.6/125 6CTA8.3-C230 3*G1 1/4 1*G2
LUY239-7 23.9/844 7/102 6CTA8.3-C230 3*G1 1/4 1*G2
LUY208-14 21.8/769 14/203 6LTAA8.8-C315 3*G1 1/4 1*G2
LIUY230-12 23/812 12/174 6LTAA8.8-C315 3*G1 1/4 1*G2
LUY250-10 25/883 10/145 6LTAA8.8-C315 3*G1 1/4 1*G2
LUY270-9 27/954 8.6/125 6LTAA8.8-C315 3*G1 1/4 1*G2
LUY290-9 29/1024 8.6/125 6LTAA8.8-C315 3*G1 1/4 1*G2
LUY180-19 18/636 19/276 6CTAA8.3-C260 1*G2 1*G3/4
LUY215-21 21.8/769 21/306 6CTAA8.8-C315 1*G2 1*G3/4
LUY231-17 23.1/816 17/247 6CTAA8.8-C315 1*G2 1*G3/4
LUY130-17 13/460 17/246.5 6BTAA5.9-C205 1*G2 1*G3/4
LUY180-19 18/636 19/276 6CTAA8.3-C260 1*G2 1*G3/4
LUY215-21 21.8/769 21/306 6CTAA8.8-C315 1*G2 1*G3/4
LUY231-17 23.1/816 17/247 6CTAA8.8-C315 1*G2 1*G3/


Manufacture& Overseas Project
Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer 2
Small Low Pressure Portable Rotary Screw Air Compressors Mounted One Two Wheel For Jack Hammer 3

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.



>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.












About us


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.










Certification





F&Q

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
