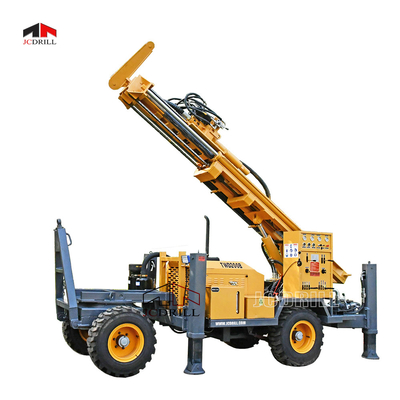

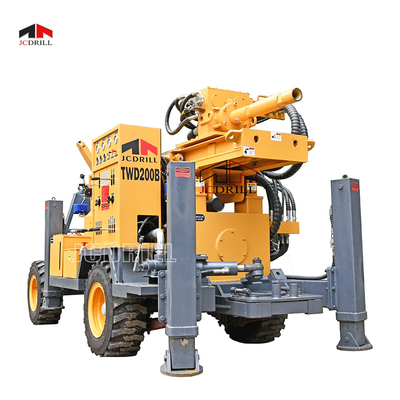

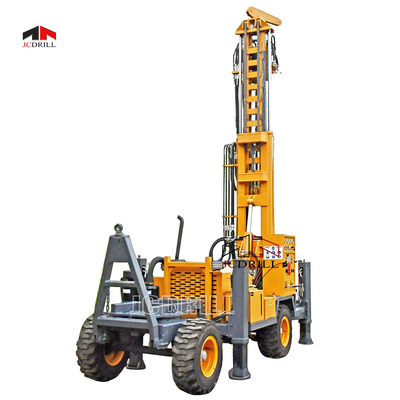

Twd200 Rock Portable Water Well Rig Diesel Engine Trailer Mounted Borehole

Twd200 Rock Portable Water Well Rig Diesel Engine Trailer Mounted Borehole
Twd200 Rock Portable Water Well Rig Diesel Engine Trailer Mounted Borehole Twd200 Rock Portable Water Well Rig Diesel Engine Trailer Mounted Borehole Twd200 Rock Portable Water Well Rig Diesel Engine Trailer Mounted Borehole

Large Image :  Twd200 Rock Portable Water Well Rig Diesel Engine Trailer Mounted Borehole

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

Twd200 Rock Portable Water Well Rig Diesel Engine Trailer Mounted Borehole

Model Number: TWD200 Drilling Depth: 200m
Drilling Diameter: 355mm Drill Pipe Length: 3000mm 4500mm
Usage: Drilling Water Well Drilling Methold: DTH Drilling MUD Drilling
Engine Power: 55KW Or Others Mud Pump: BW250/BW450
Warranty: 1year
High Light:

rock portable water well rig


trailer mounted portable water well rig


rock small bore well drilling machine

TWD200 Multi-functional track mounted water well drilling rig




>> Introduction

TWD Series Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

>> TWD series trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.

>> TWD series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

>> Characteristic


77KW,4Cylinder,water cooling Diesel Engine


Famous Brand Hydraulic System

Big Torque


Fast Rotation Speed

gear box.jpg
c.jpg >> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW250 or B450 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
>> The power of drilling rig comes from a diesel engine,High power diesel engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The rotary head,have two gear,rotation speed is 0-80 and115rpm stepless adjustment and the drilling rigs with high rotary torque.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

>> Specification

Specification Unit TWD180 TWD200
Geology drilled   All Kind All Kind
Drilling Type   DTH&MUD DTH&MUD
Drill system and operation   Hydraulic Hydraulic
Hole Diameter mm Φ90—Φ305 Φ90—Φ355
Hole Depth m 180 200
Rotation Torque Nm 4200-5600 4200-5600
Rotatin Speed rpm 45-115 0-115
Drill pipe diameter mm 76/89/102 76/89/102
Drill pipe length mm 3000 3000
Max.Feed Speed M/min 2-17 2-17
Max.lifting Speed M/min 1.5-12.4 1.5-12.4
Feed Stroke mm 350 350
Max.Pull back Capacity T 12 14
lifting force of Winch T 1.2(Optional) 1.5
Diesel Engine type   4Cylinder,water cooling 4Cylinder,water cooling
Diesel Engine Brand   Quanchai Yuchai
Rated Horse power Kw 55 77
Compressor required (Optional)
Pressure Required Mpa 15-30 15-30
Air consumption m³/min 1.5-2.5 1.5-2.5
Mud Pump(Optional/Separate)
Model   BW250 BW250/BW450
Displacement L/Min   250/450
Discharge pressure(Mpa) Mpa 2.5-7 2.5-7/2-5
Trailer Type 4 wheels trailer,front wheels with steering
Mobility   Towed by pickup or light truck
Net Weight T 3750 4100
Shipping LXWXH mm 4000*1820*2150 4150*1850*2160
Ground Clearance mm 300 305

>> Package & Delivery


Our Service


>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.


>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.





>> Overseas Service&Project



>> About us



JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.


We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.


With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.





>> Certification


>> FAQ

Q: Are you original manufacturer?


Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.



A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.


A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
