Product Details:
|
| Model Number: | JXY400 | Drilling Depth: | 0-400m |
|---|---|---|---|
| Drilling Diameter: | 75-600mm | Drill Pipe Length: | 4.2m |
| Usage: | Water Well Drilling | Drilling Methold: | DTH Drilling & Mud Drilling |
| Rotation Speed: | 0-80rpm | Mud Pump: | BW250/BW450 |
| Warranty: | 1year | ||
| High Light: | geotechnical investigation core drill machine,400m core drill machine,core drill rig 400m |
||

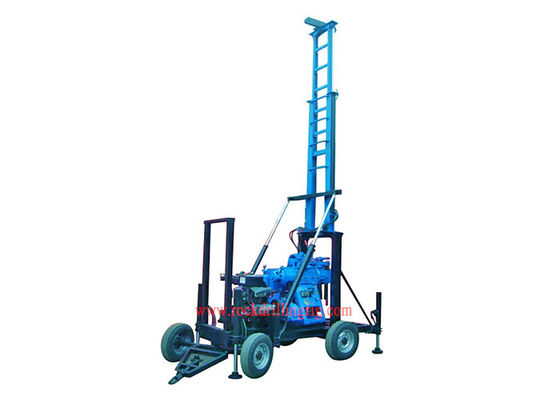

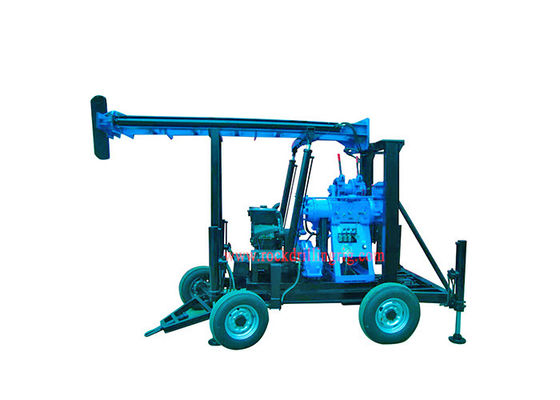

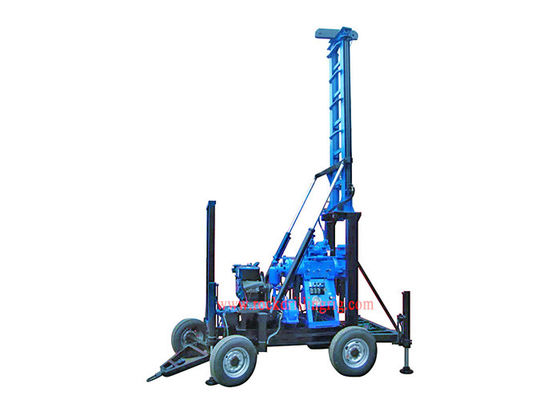

Hydraulic Core Drill Machine for Water or Geotechnical Investigation (JCDRILL)
The type of trailer mounted drilling rig is a small drilling rig for 400m deep, widely applied for Geology
general check exploration, Earth physics exploration, Road and high layer building ground survey, Water
Bore Well, blast opening and so on, drilling engineering, etc.
| Drilling depth | m | 75 | 219 | 273 | 400 | 600 |
| Drilling Dia. | mm | 400 | 160 | 130 | 100 | 30 |
| Open hole Dia. | mm | 600 | ||||
| End hole Dia. | mm | 75 | ||||
| Drilling rod | mm | 42,50,60,76 | ||||
| Drilling angle | 0-90° | |||||
| Rotary Spindle | ||||||
| Spindle forward speed | r/min | 50-1150 | ||||
| Spindle reverse speed | r/min | 29-137 | ||||
| Spindle stroke | mm | 600 | ||||
| Spindle inner diameter | mm | 62 | ||||
| Spindle lifting capacity | Kg | 6000 | ||||
| Spindle Max.Torque | N/M | 2800 | ||||
| Main Winch (Hydraulic) | ||||||
| Single line lifting speed | m/s | 0.5-1.9 | ||||
| Tightrope diameter | mm | 14 | ||||
| Hoist single line lifting capacity | Kg | 4000 | ||||
| Roller diameter | mm | 300 | ||||
| Roller cubic measure | m | 50 | ||||
| Tools Winch | ||||||
| Tightrope diameter | mm | 6 | ||||
| Roller diameter | mm | 140 | ||||
| Roller cubic measure | m | 450 | ||||
| Drilling rig Power(choose one between the following two) | ||||||
| Diesel engine | kw/hp | 17.6/24 | ||||
| Electric motor | KW | Y160L,18.5kw | ||||
| Trailer | ||||||
| Loading Capacity | T | 8.5 | ||||
| Weight&Size | ||||||
| Weight | kg | 3000 | ||||
| Dimension | mm | 3980×1950×2750 | ||||
Application
Advantage
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series,
in this system, technology date and problem solve solution and preventive measures will be provided in any
maintain project, all the spare parts will be used in new OEM products with installation instructions, packing
list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order
confirmation, last for the working life of the equipment.
