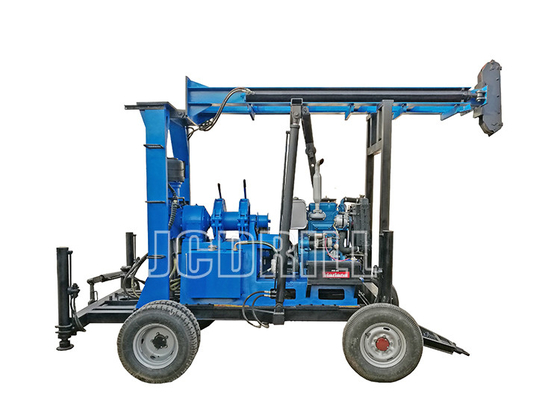

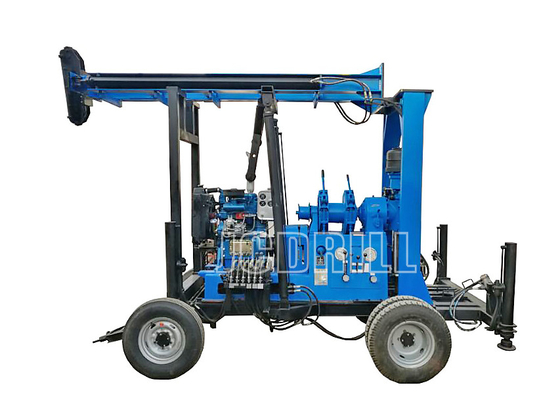

400m Deep Trailer Mounted Borehole Water Well Drilling Rig

400m Deep Trailer Mounted Borehole Water Well Drilling Rig
400m Deep Trailer Mounted Borehole Water Well Drilling Rig 400m Deep Trailer Mounted Borehole Water Well Drilling Rig

Large Image :  400m Deep Trailer Mounted Borehole Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JXY400T
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

400m Deep Trailer Mounted Borehole Water Well Drilling Rig

Model Number: JXY400T Drilling Depth: 0-400m
Drilling Diameter: 75-600mm Drill Pipe Length: 4.2m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 50-1150r/Min Drill Pipe: 50/60mm
Mud Pump: BW250 Warranty: 1year
High Light:

borehole Water Well Drilling Rig


400m Water Well Drilling Rig


400m water rig

400m Deep Trailer Mounted Borehole Water Well Drilling Rig


>> Application

The JXY400T trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment. With hydraulic feed mechanism, improve drilling efficiency.
Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation, flexible and reliable; Can realize remote speed change, more humanization operation;
It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.

The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good rigidity.

Falling tower for hydraulic operation, convenient and reliable

400m Deep Trailer Mounted Borehole Water Well Drilling Rig 0

>> Characteristics
1. Power Supply
It can be driven by either electric motor or diesel engine.
2. Improved Structure
Gearbox, vertical shaft box, mud pump, diesel engine, etc, all integrated on one base.
Not only simplify the connection parts, guarantee the accuracy, reduce weight, save the lubricating oil, but also conducive to dustproof and lubrication, improve work efficiency and prolong the service life.
3. Tractor or Trailer Mounted Mobile Base
A. Hydraulic mobile base makes machine move backward 400mm, hydraulic control, efficient, convenient to operate;
B. It is configured with four wheels, can be mounted on tractor or trailer. Easy to work in mountains and rugged places.
4. Hydraulic drill tower, hydraulic legs
No need to erect drill tower manually, very convenient to use.
5. Three-wing Bit, Alloy Bit, Diamond Bit
Different bits to adapt to different geological formations, such as soil, sand, gravel, hard rock, etc. Very effective in diamond drilling.
6. Direct Use
The complete set includes drilling rig, drilling tower, mud pump, etc. To ensure you can use directly after receiving our machine.

400m Deep Trailer Mounted Borehole Water Well Drilling Rig 1

>> Specification

Drilling depth M 75 219 273 400 600
Drilling Dia. mm 400 160 130 100 30
Open hole Dia. mm 600
End hole Dia. mm 75
Drilling rod mm 42, 50, 60, 76
Drilling angle   0-90°
Rotary Spindle
Spindle forward speed R/min 50-1150
Spindle reverse speed R/min 29-137
Spindle stroke mm 600
Spindle inner diameter mm 62
Spindle lifting capacity Kg 6000
Spindle Max. Torque N/M 2800
Main Winch (Hydraulic)
Single line lifting speed M/s 0.5-1.9
Tightrope diameter mm 14
Hoist single line lifting capacity Kg 4000
Roller diameter mm 300
Roller cubic measure M 50
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure M 450
Drilling rig Power(choose one between the following two)
Diesel engine Kw/HP 17.6/24
Electric motor KW Y160L, 18.5kw
Loading Capacity T 8.5
Weight Kg 3000
Dimension mm 3980×1950×2750

>> Package & Shipment

400m Deep Trailer Mounted Borehole Water Well Drilling Rig 2

>> Overseas Service&Project

400m Deep Trailer Mounted Borehole Water Well Drilling Rig 3

>> About us



JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.


We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.


With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.





>> Related Products


>> FAQ

Q: Are you original manufacturer?


Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.



A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.


A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
