DTH Hydraulic Trailer Borehole Rig With Mud Pump

DTH Hydraulic Trailer Borehole Rig With Mud Pump
DTH Hydraulic Trailer Borehole Rig With Mud Pump DTH Hydraulic Trailer Borehole Rig With Mud Pump

Large Image :  DTH Hydraulic Trailer Borehole Rig With Mud Pump

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

DTH Hydraulic Trailer Borehole Rig With Mud Pump

Description
Model Number: TWD200 Drilling Depth: 200m
Drilling Diameter: 254mm Drill Pipe Length: 2000/3000m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Engine Power: 33KW Mud Pump: BW250/BW200
Warranty: 1year
High Light:

Hydraulic borehole rig

,

Trailer Borehole Rig

,

DTH Borehole Rig

JCDRILL DTH Driling Hydraulic Trailer Type Water Well Drill Rig

Trailer mount portable water well drill rig machine using rotary drilling method for sale is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures.

Trailer mount portable water well drill rig machine using rotary drilling method for sale is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating.Trailer mount portable water well drill rig machine using rotary drilling method for sale can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements.

Trailer mount portable water well drill rig machine using rotary drilling method for sale is currently the strongest drilling rig in China.

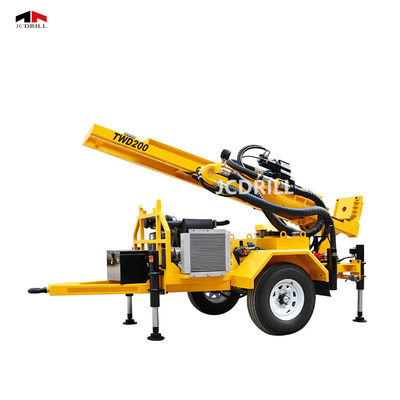

DTH Hydraulic Trailer Borehole Rig With Mud Pump 0

Specification

Geology drilled All kinds
Drill depth 0-200 m
Drilling Diameter 90 - 200mm(DTH.max.6''hammer)
Drilling Diameter 90 - 250mm(Mud Drilling)
Rig assembly 1 complete unit, main engine driven
Mobility 2 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
Foam pump Hydraulic driven(Optional)
Weight 2700 kg
Rotation & Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2600 N-m
Speed 0 - 80 rpm.
Head travel 2.25 meter
Pull-up capacity 8.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Feed Stroke 2350mm
Diesel engine
Brnd Deutz
Power 33KW
Model F3-912
Speed 2300r/min
Cooling type air
Drill Pipe
Drill pipe length 2.00 meter
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Foam Pump(Optional)
Flow capacity 400 liter/min
Foam Tank 50 liter
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 180 liter
Stabilizing Jack
2 rear hydraulic & 1 mechnical jacks(2 front Hydraulic jack optional).
Bore 150 mm.
Stroke 520 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 40 bar
Oil tank capacity 8 liter
Dimension
Overall length 4100mm
Overall width 1890mm
Overall height 2100 mm
Showing

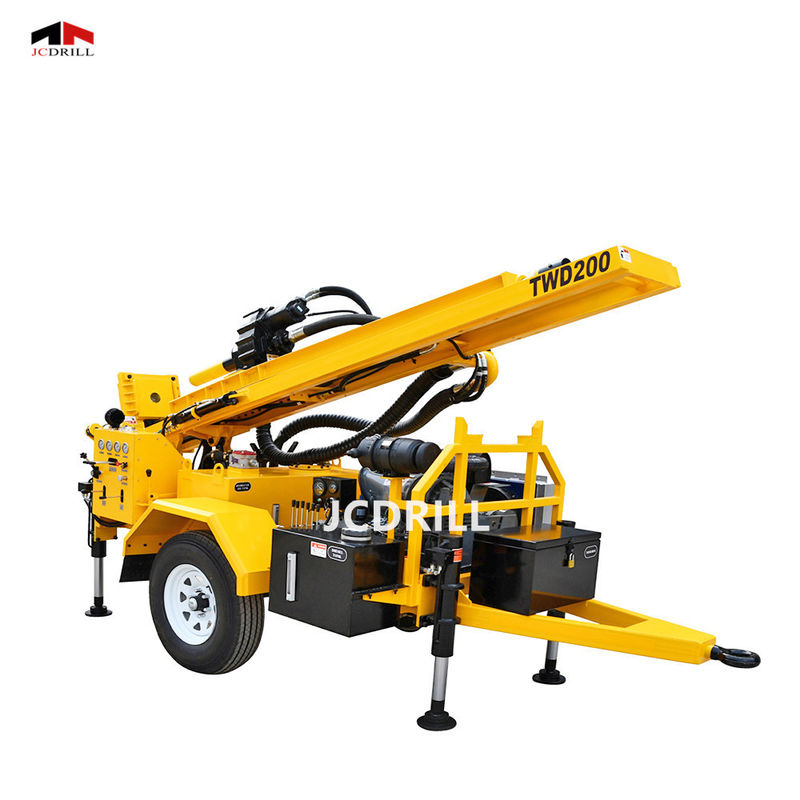

DTH Hydraulic Trailer Borehole Rig With Mud Pump 1



Service

DTH Hydraulic Trailer Borehole Rig With Mud Pump 2

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
