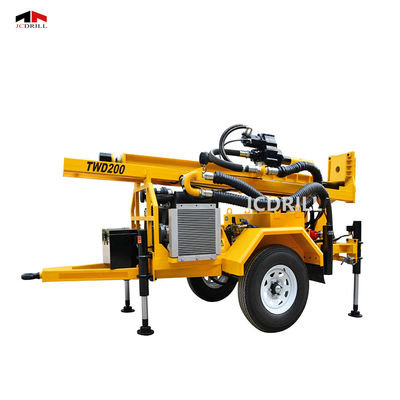

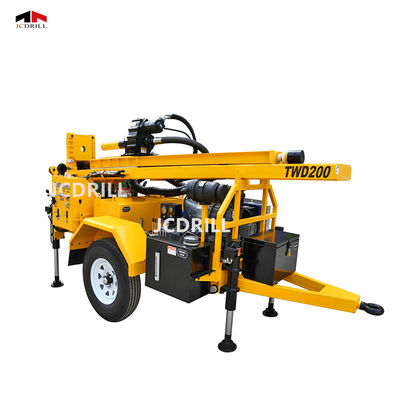

200 Meters Capacity Mud ISO Borehole Drilling Rig

200 Meters Capacity Mud ISO Borehole Drilling Rig
200 Meters Capacity Mud ISO Borehole Drilling Rig 200 Meters Capacity Mud ISO Borehole Drilling Rig

Large Image :  200 Meters Capacity Mud ISO Borehole Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

200 Meters Capacity Mud ISO Borehole Drilling Rig

Model Number: TWD200 Drilling Depth: 0-200m
Drilling Diameter: 90-254mm Drill Pipe Length: 2000/3000m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-80rpm Engine Power: 33KW
Drill Pipe: 76/89mm Mud Pump: BW250
Warranty: 1year
High Light:

200 meters capacity borehole drilling rig


Mud borehole drilling rig


ISO borehole drill rig

TWD200 Trailer Mounted Water Well Drill Rig with 200meters Drilling Capacity



1 This drilling machine is small type machine and the job can be installed in less than ten minutes.can be used at indoor and outdoor site.

2 The well pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water.

3 Research and Develop by ourself,it breaks difficult problem that easy to drill and hard to disassemble.

4 All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate.

200 Meters Capacity Mud ISO Borehole Drilling Rig 0


Geology drilled All kinds
Drill depth 0-200 m
Drilling Diameter 90 - 200mm(DTH.max.6''hammer)
Drilling Diameter 90 - 250mm(Mud Drilling)
Rig assembly 1 complete unit, main engine driven
Mobility 2 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
Foam pump Hydraulic driven(Optional)
Weight 2700 kg
Rotation & Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2600 N-m
Speed 0 - 80 rpm.
Head travel 2.25 meter
Pull-up capacity 8.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Feed Stroke 2350mm
Diesel engine
Brnd Deutz
Power 33KW
Model F3-912
Speed 2300r/min
Cooling type air
Drill Pipe
Drill pipe length 2.00 meter
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Foam Pump(Optional)
Flow capacity 400 liter/min
Foam Tank 50 liter
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 180 liter
Stabilizing Jack
2 rear hydraulic & 1 mechnical jacks(2 front Hydraulic jack optional).
Bore 150 mm.
Stroke 520 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 40 bar
Oil tank capacity 8 liter
Overall length 4100mm
Overall width 1890mm
Overall height 2100 mm
Packing& Delivery

200 Meters Capacity Mud ISO Borehole Drilling Rig 1


200 Meters Capacity Mud ISO Borehole Drilling Rig 2

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
