150m Truck Mounted DTH Water Well Drilling Rig

150m Truck Mounted DTH Water Well Drilling Rig
150m Truck Mounted DTH Water Well Drilling Rig 150m Truck Mounted DTH Water Well Drilling Rig

Large Image :  150m Truck Mounted DTH Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD150
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

150m Truck Mounted DTH Water Well Drilling Rig

Model Number: TWD150 Drilling Depth: 150m
Drilling Diameter: 254mm Drill Pipe Length: 2000/3000mm
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Drill Pipe: 76/89mm Mud Pump: BW200
Warranty: 1year
High Light:

150m Water Well Drilling Rig


truck mounted water drilling rig 150m


DTH water well drilling rig

150m Small Water Well Rotary Drill Rig with Trailer TWD150

TWD150 combines an onboard power pack, drill pipe storage and foam pump on a single axle trailer. This makes for a quick set up in most locations and is an ideal multipurpose rig for many water well drilling operations.

TWD150 has mud pump built in this high head pump can drill deeper faster than alternative skid mounted centrifugal mud pumps and takes its power direct from the trailer power pack.

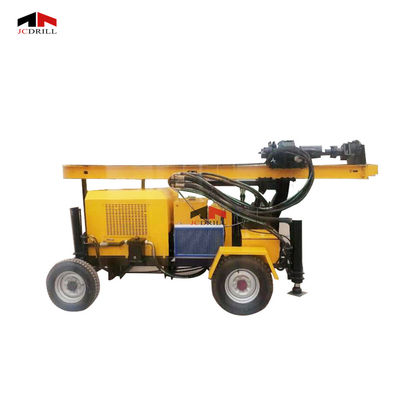

150m Truck Mounted DTH Water Well Drilling Rig 0


Description TWD150B
Geology drilled All kinds
Drill depth 0-150 m
Drilling Diameter 90-254mm(Mud drilling)
Drilling Diameter 90-254mm(DTH Drilling)
Drill system and operation Hydraulic
Rig assembly Main engine driven
Mobility 4 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
DTH Hammer 4-6Inch
Foam pump Optional
Weight 2600 kg
Rotation&Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2250 N-m
Rotation Speed-Fast 0-110Rpm
Rotation Speed-Slower 0-55Rpm.
Head travel 2.25 meter
Pull-up capacity 7.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Diesel engine
Power 44KW
Brand HBE
Model 4DHG
Type 4Cylinder,Naturally aspirated
Drill pipe
Drill pipe length 2000mm
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Mud pump(Optional)
Flow capacity 200 liter/min
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 160 liter
Stable Jack
2 front jacks and 2 rear jacks. Hydraulic
Bore 60 mm.
Stroke 600 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 25 bar
Oil tank capacity 4 liter
Overall length 3500 mm
Overall width 1800 mm
Overall height 1900 mm
Overall height 1901 mm

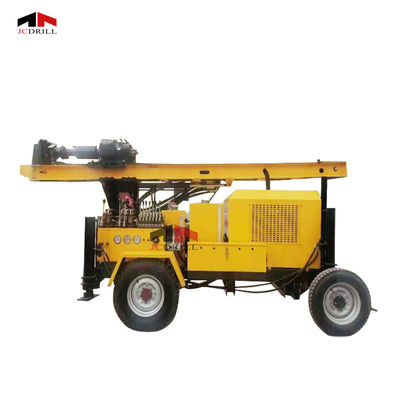

150m Truck Mounted DTH Water Well Drilling Rig 1


Q: Are you original manufacturer?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have

the whole series products you need.

Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take?

A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.

Q: How about after sales service?

A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

Q: Spare Parts When You Need Them

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
