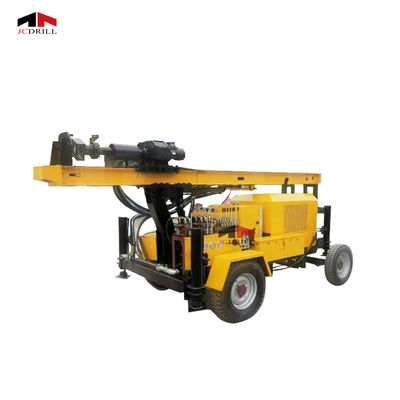

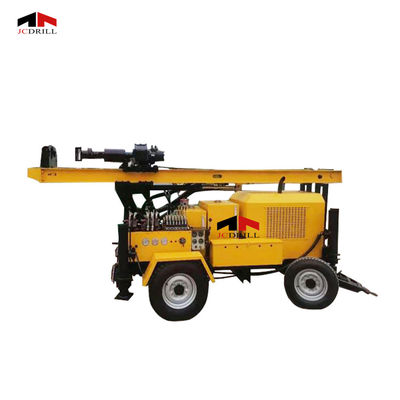

Portable Trailer Mounted Hydraulic 44KW Small Well Drilling Rig

Portable Trailer Mounted Hydraulic 44KW Small Well Drilling Rig
Portable Trailer Mounted Hydraulic 44KW Small Well Drilling Rig Portable Trailer Mounted Hydraulic 44KW Small Well Drilling Rig

Large Image :  Portable Trailer Mounted Hydraulic 44KW Small Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: TWD150
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

Portable Trailer Mounted Hydraulic 44KW Small Well Drilling Rig

Description
Model Number: TWD150 Drilling Depth: 0-150m
Drilling Diameter: 90-254mm Drill Pipe Length: 2000mm
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-110rpm Engine Power: 44KW
Drill Pipe: 76/89mm Mud Pump: BW200
Warranty: 1year
High Light:

110rpm portable hydraulic water well drilling rig

,

44KW small well drilling rig

,

110rpm small well drilling rig

TWD150 Portable Trailer Mounted Hydraulic Water Well Drilling Rig

TWD150 series drilling rig is a light, efficient and versatile drilling and drilling equipment. The drilling rig adopts two-wheeled trailer type, which makes the transition convenient and quick.

TWD150 mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations. The efficiency is ten times higher than the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive.

In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 3200-kg that allows it to be pulled by a pick-up it is packed with features.

Portable Trailer Mounted Hydraulic 44KW Small Well Drilling Rig 0

Specification

Description TWD150B
Geology drilled All kinds
Drill depth 0-150 m
Drilling Diameter 90-254mm(Mud drilling)
Drilling Diameter 90-254mm(DTH Drilling)
Drill system and operation Hydraulic
Rig assembly Main engine driven
Mobility 4 wheel tandem road trailer
Transportation Towed by pickup or light truck
Drill pipe (diameter x length) 76/89 mm x 2 m
DTH Hammer 4-6Inch
Foam pump Optional
Weight 2600 kg
Rotation&Feed System
Top head drive by a hydraulic cylinder
Rotation torque 2250 N-m
Rotation Speed-Fast 0-110Rpm
Rotation Speed-Slower 0-55Rpm.
Head travel 2.25 meter
Pull-up capacity 7.5Ton
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Diesel engine
Power 44KW
Brand HBE
Model 4DHG
Type 4Cylinder,Naturally aspirated
Drill pipe
Drill pipe length 2000mm
Drill pipe diameter 76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
Mud pump(Optional)
Flow capacity 200 liter/min
Max. working pressure 40 bar
Hydraulic System
Hydraulic tank capacity 160 liter
Stable Jack
2 front jacks and 2 rear jacks. Hydraulic
Bore 60 mm.
Stroke 600 mm
Air System
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 25 bar
Oil tank capacity 4 liter
Dimension
Overall length 3500 mm
Overall width 1800 mm
Overall height 1900 mm
Overall height 1901 mm

Our Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on.
