557rpm Trailer Mounted 200m Portable Well Drilling Rig

557rpm Trailer Mounted 200m Portable Well Drilling Rig
557rpm Trailer Mounted 200m Portable Well Drilling Rig 557rpm Trailer Mounted 200m Portable Well Drilling Rig 557rpm Trailer Mounted 200m Portable Well Drilling Rig 557rpm Trailer Mounted 200m Portable Well Drilling Rig

Large Image :  557rpm Trailer Mounted 200m Portable Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JINCHENG
Certification: ISO
Model Number: JXY200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000usd-20000usd/set
Packaging Details: standard package for shipping by sea or accordign to customers'requirement
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000sets/month

557rpm Trailer Mounted 200m Portable Well Drilling Rig

Dimension(L*W*H): 3300*1700*2500mm Warranty: 1year
Water Hole Depth: 200m Rotation Torque: 2400Nm
Drill Rod Length: 2000mm Mud Pump: BW250
Power Type: Diesel Voltage: 24V
Weight: 1950kgs Core Components: Motor, Pump, Gear, Bearing, Engine, Gearbox
Water Hole Diameter: 100-500mm Drilling Rod: 42 50 60mm
Forward Speed: 64-557rpm Engine: CMS
High Light:

200m portable well drilling rig


557rpm portable well drilling rig


200m trailer mounted drill rig

Product Description

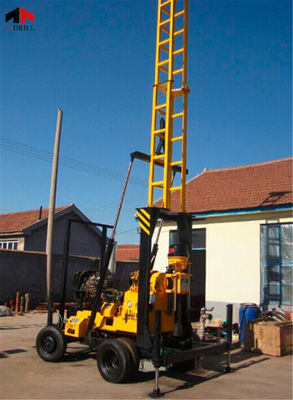

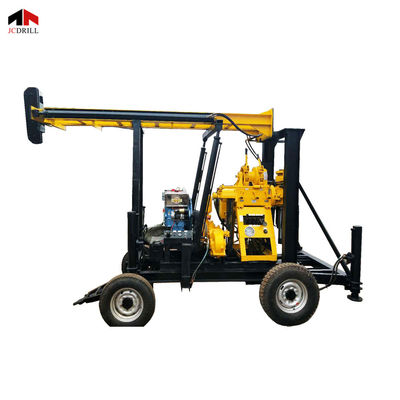

1.The JXY-200 trailer mounted water well drilling rig is equipped with wheel running gear and hydraulic oil cylinder
pillar, transferring, convenient and easy to drill horizontal adjustment.
2.With hydraulic feed mechanism, improve drilling efficiency.
3.Advanced hydraulic system design makes the control handles concentrated, compact layout reasonable, easy operation,
flexible and reliable; Can realize remote speed change, more humanization operation;
4.It equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to master the hole.
5.Falling tower for hydraulic operation, convenient and reliable
6.Diesel engine with electric start, reduce labor intensity.
Introduction Max.200m&500mm
7.The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
8.Compact mechanical transmission structure, light weight, large diameter of spindle bore, hydraulic stabilizer legs, good
9.It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural
water supply holes in sediments and hard rock.
10.High efficiency and low cost.


557rpm Trailer Mounted 200m Portable Well Drilling Rig 0


Max.Drilling depth m 200
Max.Drilling Dia. mm 500
Max.Open hole Dia. mm 500
End hole Dia. mm 75
Drilling rod mm 42,50,60
Drilling angle   0-90°
Rotary Spindle
Spindle forward speed r/min 64,128,287,557
Spindle stroke mm 450
Spindle inner diameter mm 62
Spindle lifting capacity Kg 6000
Spindle Max.Torque N/M 2400
Main Winch (Hydraulic)
Single line lifting speed m/s 17,35,75,151
Tightrope diameter mm 12
Hoist single line lifting capacity Kg 1800
Roller diameter mm 245
Roller cubic measure m 70
Tools Winch
Tightrope diameter mm 6
Roller diameter mm 140
Roller cubic measure m 450
Drilling rig Power(choose one between the following two)
Diesel engine kw/hp 16.13/22
Electric motor KW 15
Loading Capacity T 2.5
Weight kg 1950
Dimension mm 3300×1700×2500


Q: Are you original manufacturer?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: Which Incoterms 2010 terms can we work?
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF,CFR,CIP.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q:Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be deliveredwithin 72 hours or no more than one week.
