|Hole Depth:||300m||Drill Syestem:||Hydraulic|
|Hole Diameter:||90-320mm||Mud Pump:||BW450|
Tractor Mounted Drilling Rig,
Hydraulic Water Well Drilling Rig

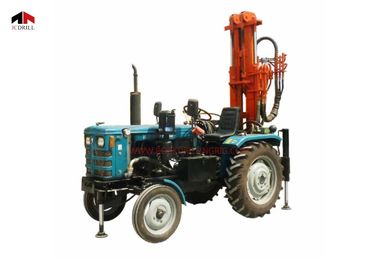

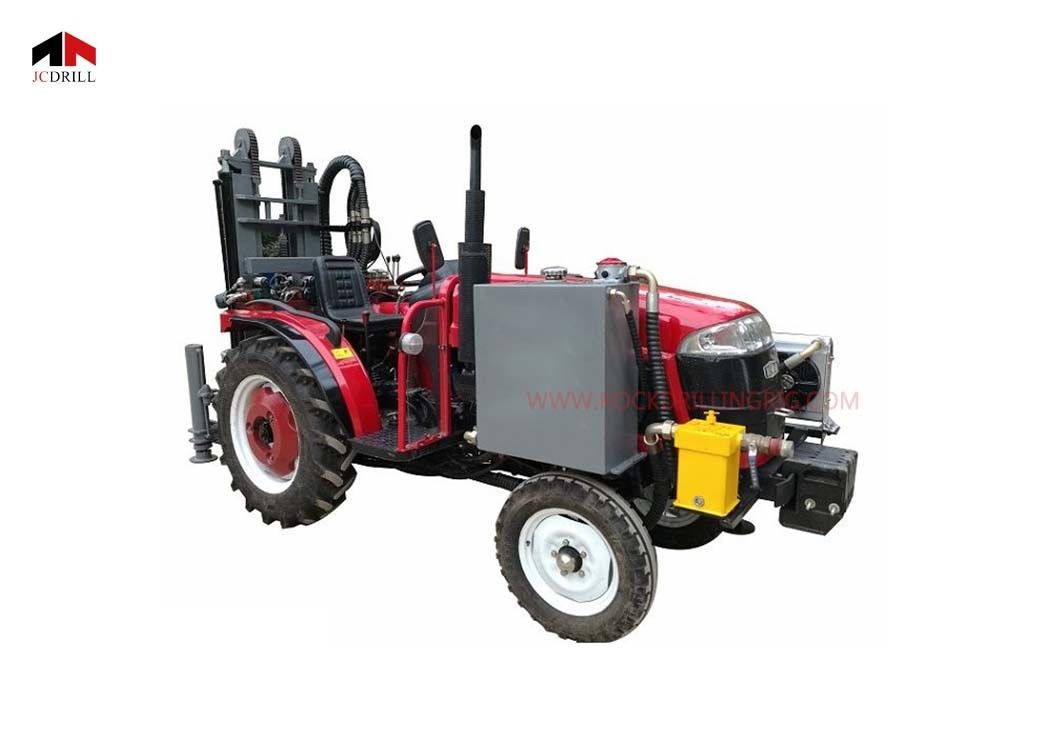

300m 4 X 4 Tractor Mounted Water Well Drilling Rig Water Drilling Equipment
JCDRILL Water Well Drill Rig
TD300 300m 4 X 4 tractor mounted water well drilling rig uses the tractor diesel engine as the working power of the rig. The rig working part is integrated with the tractor. The tractor is the rig, the transportation machine, and the working power of the rig. When going to the work site, the tractor has the transportation transfer capability. The air compressor can be mounted, which saves the investment of the transportation vehicle, lowers the cost and makes the work more convenient. It is also equipped with a tricycle to load the drill pipe. Because the fuselage is small and flexible, the tractor is more suitable for driving and operating in various road conditions and occasions in the wild, villages, etc. Rural hutongs and farmyards can enter the well.
In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 2600kg that allows it to be pulled by a pick-up it is packed with features. The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism.When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.
|Drill depth||0-300 m|
|Drilling Diameter||90 - 320mm|
|Drill system and operation||Hydraulic|
|Rig assembly||1 complete unit, Tractor driven|
|Mobility||4 wheel tractor|
|Drill pipe (diameter x length)||76/89*3000mm|
|Rotation & Feed System|
|Top head drive by a hydraulic cylinder through heavy duty chain.|
|Rotation torque||4000 N-m|
|Head travel||3.2 meter|
|Pull-up capacity||12500 kgs|
|Pull-down Capacity||6800 kgs|
|Pull-up speed-slow feed||1.22 meter/min|
|Pull-up speed-rapid feed||12.26 meter/min|
|Pull-down speed-slow feed||0-1.88 meter/min|
|Pull-down speed-rapid feed||0- 16.90 meter/min|
|Drill pipe length||3 meter|
|Drill pipe diameter||76/89 mm|
|Thread||2 3/8 REG API|
|Flow capacity||250/450 liter/min|
|Max. working pressure||20/40 bar|
|Hydraulic tank capacity||140 liter|
|1 front jacks and 2 rear jacks.|
|Lubricator of venturi-type for down-the-hole drills.|
|Max. pressure||25 bar|
|Oil tank capacity||4 liter|
|Overall length||3480 mm|
|Overall width||1450 mm|
|Overall height||2250 mm
Standard sea transportation package or packed as customer's requirement.
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment and one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Jincheng provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of “Survival by quality, Development by credit’’.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “JINCHENG” a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
|Q: Are you original manufacturer?||Q: Which payment terms are available to us?||Q: Which Incoterms 2010 terms can we work?|
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.
|A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.||
A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
|Q: How long will the delivery time take?||Q: How about after sales service?||
Q:Spare Parts When You Need Them
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.
|A: 365×24 Year-round Service
We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
