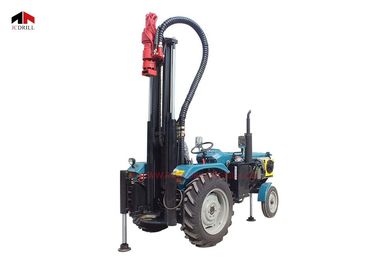

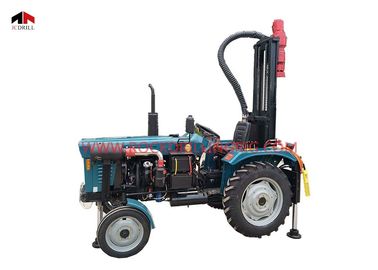

Diesel Engine 200m 20KW Water Well Drilling Rig

Diesel Engine 200m 20KW Water Well Drilling Rig
Diesel Engine 200m 20KW Water Well Drilling Rig Diesel Engine 200m 20KW Water Well Drilling Rig

Large Image :  Diesel Engine 200m 20KW Water Well Drilling Rig

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: TD200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard Export Packing
Delivery Time: One Week
Payment Terms: L/C, T/T, , Western Union
Supply Ability: 2000set/year

Diesel Engine 200m 20KW Water Well Drilling Rig

Drilling Depth: 200m Drilling Diameter: 90-220mm
Drill Pipe: 60/76*1500mm Drilling Methold: Air&Mud Drilling
Power Type: Diesel Engine Mud Pump: BW160/BW200/BW250(Optional)
Rotation Torque: 2400 N-m Rotation Speed: 60-115 Rpm
Weight: 2600kg Dimensions: 3400*1350*2150mm
Color: Customized Air Compressor: 20 Bar
Nama: 200 M Tractor Mounted Water Well Drilling Rig
High Light:

20KW Water Well Drilling Rig


200m Water Well Drilling Rig

Small Water Well Drilling Rig 200m Tractor Mounted Shallow Well Drilling Equipment​



TD200 water well drilling rig is a kind of portable water well drilling rigs which can be moved around conveniently, Drilling with air compressor and mud pump both methods.


The rig uses the tractor diesel engine as the working power of the rig. The rig working part is integrated with the
tractor. The tractor is the rig, the transportation machine, and the working power of the rig. When going to the work
site, the tractor has the transportation transfer capability. The air compressor can be mounted, which saves the
investment of the transportation vehicle, lowers the cost and makes the work more convenient. It is also equipped
with a tricycle to load the drill pipe. Because the fuselage is small and flexible, the tractor is more suitable for
driving and operating in various road conditions and occasions in the wild, villages, etc. Rural hutongs and
farmyards can enter the well.
In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures.
It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural
water supply holes in sediments and hard rock. Weighing about 2600kg that allows it to be pulled by a pick-up it is
packed with features.
The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has
low failure rate.The tower assembly has a hydraulic compensation mechanism.When the tower is grounded during
construction, the bearing capacity is greater and the stability is higher.


Diesel Engine 200m 20KW Water Well Drilling Rig 0


1. Overall parameters
Drilling depth 200 m
Maximum open hole caliber 200-300 mm
Diameter of drill rod 60/76 mm x 1.5 m
Drilling angle 90~75
Weight 2600 kg
Dimension 3400*1350*2150mm
2. Rotation
Rotation torque 2400 N-m
Speed 60-115 rpm
3. Diesel Engine
Power 20 KW
4. Mud pump(on Board)
Flow capacity 160 liter/min
Max. working pressure 10 bar

Packing& Delivery

Diesel Engine 200m 20KW Water Well Drilling Rig 1
