Product Details:
|
Drilling Depth: | 200m | Drilling Diameter: | 90-220mm |
---|---|---|---|
Drill Pipe: | 60/76*1500mm | Drilling Methold: | Air&Mud Drilling |
Power Type: | Diesel Engine | Mud Pump: | BW160/BW200/BW250(Optional) |
Rotation Torque: | 2400 N-m | Rotation Speed: | 60-115 Rpm |
Weight: | 2600kg | Dimensions: | 3400*1350*2150mm |
Color: | Customized | Air System: | 25 Bar |
Highlight: | water borehole drilling equipment,water well drilling machine |

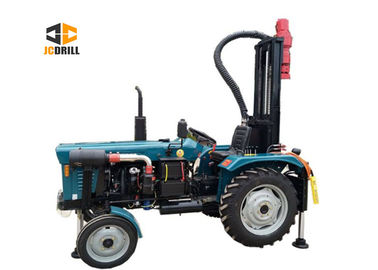

200m Tractor Mounted drilling Rig 1.5m Drill Rod Water Well Drilling Rig
Application
TD200 water well drilling machine is a kind of portable water well drilling rigs which can be moved around conveniently,Drilling with air compressor and mud pump both ok.
Characteristics
The rig uses the tractor diesel engine as the working power of the rig. The rig working part is integrated with the
tractor. The tractor is the rig, the transportation machine, and the working power of the rig. When going to the work
site, the tractor has the transportation transfer capability. The air compressor can be mounted, which saves the
investment of the transportation vehicle, lowers the cost and makes the work more convenient. It is also equipped
with a tricycle to load the drill pipe. Because the fuselage is small and flexible, the tractor is more suitable for
driving and operating in various road conditions and occasions in the wild, villages, etc. Rural hutongs and
farmyards can enter the well.
In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures.
It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural
water supply holes in sediments and hard rock. Weighing about 2600kg that allows it to be pulled by a pick-up it is
packed with features.
The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has
low failure rate.The tower assembly has a hydraulic compensation mechanism.When the tower is grounded during
construction, the bearing capacity is greater and the stability is higher.
Specification
1.Overall parameters | |
Drilling depth | 200 m |
Maximum open hole caliber | 200-300 mm |
Diameter of drill rod | 60/76 mm x 1.5 m |
Drilling angle | 90~75 |
Weight | 2600 kg |
Dimension | 3400*1350*2150mm |
2. Rotation | |
Rotation torque | 2400 N-m |
Speed | 60-115 rpm |
3.Diesel Engine | |
Power | 20 KW |
4.Mud pump(on Board) | |
Flow capacity | 160 liter/min |
Max. working pressure | 10 bar |
