Product Details:
|
| Drilling Depth: | 200m | Drilling Diameter: | 200-500mm |
|---|---|---|---|
| Drill Pipe: | 50*4200mm | Drilling Methold: | Mud Drilling |
| Power Type: | Diesel Engine | Mud Pump: | BW160 |
| Rotation Torque: | 2400 N-m | Rotation Speed: | 60-120 Rpm |
| Weight: | 1950kg | Dimensions: | 3300*1700*2500mm |
| High Light: | water borehole drilling equipment,water well drilling machine |
||

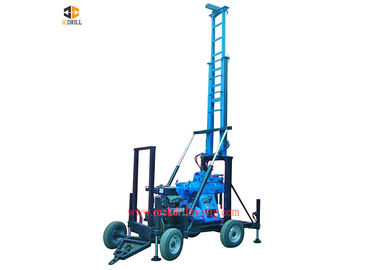

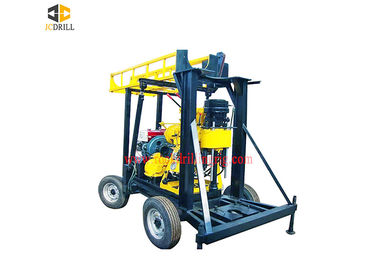

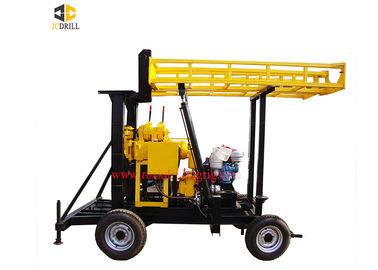

200m Vertical Spindle Type 4.2m Drill Rod Water Well Drilling Rig
Application
JXY200 water well drilling machine, the drilling rig adopts two wheeled trailer type, which makes the transition convenient and quick. JXY200 is mainly suitable for drilling small aperture wells.
Characteristics
1. The JXY200 trailer mounted water well drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment.
2. With hydraulic feed mechanism, improve driling efficiency.
3. Advanced hydraulic system design makes the contraol handles concentrated, compact layout reasonable, easy operation, flexible and reliable; Can realize remote speed change, more humanization operation;
4. It equipped with a pressure gauge instructions at the bottom of the bore pressure, esay to master the hole.
5. The drilling rig has 8 grades forward rotation speed and 2 grades reverse rotation speed, wide speed adjustable range.
6. Compact mechanical transmission structure, light weight, large diameter of spiindle bore, hydraulic stabilizer legs, good rigidity.
7. Falling tower for hydraulic operation, convenient and reliable.
8. Diesel engine with electric start, reduce labor intensity.
9. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock.
10. High efficiency and low cost.
Specification
| 1.Overall parameters | |
| Drilling depth | 200 m |
| Maximum open hole caliber | 200-500 mm |
| Diameter of drill rod | 50 mm x 4.2 m |
| Drilling angle | 90~75 |
| Weight | 1950 kg |
| Dimension | 3300*1700*2500mm |
| 2. Rotation | |
| Rotation torque | 2400 N-m |
| Speed | 64,128,287,557 |
| 3.Diesel Engine | |
| Power | 17 KW |
| MODEL | Weichai |
| 4.Mud pump(on Board) | |
| Flow capacity | 160 liter/min |
| Max. working pressure | 10 bar |
