|Drilling Depth:||110m||Drilling Diameter:||90-200mm|
|Move Type:||Trailer Mounted||Drill Pipe Length:||2m|
|Drilling Methold:||DTH Drilling & Mud Drilling||Engine Power:||24 KW|
|Mud Pump:||On Board||Pull Back:||8ton|
water well drilling equipment,
water borehole drilling equipment

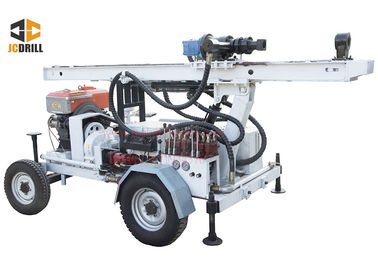

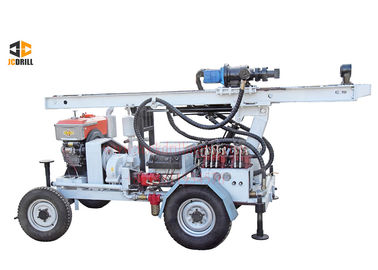

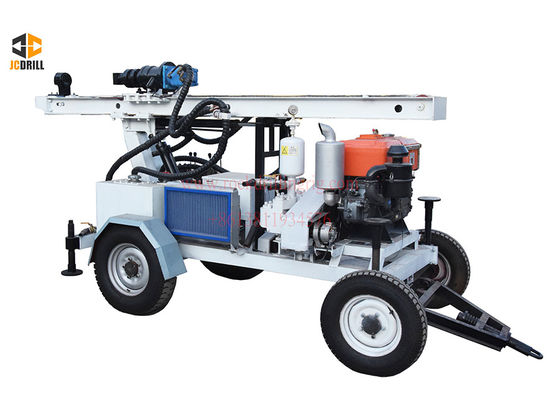

24kw Engine Power Small Portable Water Well Drilling Rig Dth Drilling Machine
TWD100A series drilling rig is a light, efficient and versatile drilling and drilling equipment. The drilling rig adopts two-wheeled trailer type, which makes the transition convenient and quick.TWD100 mainly suitable for drilling small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in mountainous and rock formations. The efficiency is ten times higher than the traditional rotary drilling rig, and the economic benefits created for the users are extremely impressive.
In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures. It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 2100-kg that allows it to be pulled by a pick-up it is packed with features.
1. TWD100A combines an onboard power pack, drill pipe storage and foam pump on a single axle trailer. This makes for a quick set up in most locations and is an ideal multipurpose rig for many water well drilling operations.
2. TWD100A has mud pump built in this high head pump can drill deeper faster than alternative skid mounted
centrifugal mud pumps and takes its power direct from the trailer power pack.
3. The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive andhas low failure rate.The tower assembly has a hydraulic compensation mechanism. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.
|Drill depth||0-110 m|
|Drilling Diameter||90 - 180mm|
|Drill system and operation||Hydraulic|
|Rig assembly||1 complete unit, main engine driven|
|Mobility||2 wheel tandem road trailer|
|Transportation||Towed by pickup or light truck|
|Drill pipe (diameter x length)||60/76 mm x 1.5 m(2m optional)|
|Rotation & Feed System|
|Top head drive by a hydraulic cylinder through heavy duty chain.|
|Rotation torque||1200 N-m|
|Head travel||1.95 meter|
|Pull-up capacity||5000 kgs|
|Pull-down Capacity||5000 kgs|
|Pull-up speed-slow feed||1.22 meter/min|
|Pull-up speed-rapid feed||12.26 meter/min|
|Pull-down speed-slow feed||0-1.88 meter/min|
|Pull-down speed-rapid feed||0- 16.90 meter/min|
|Drill pipe length||2.00 meter|
|Drill pipe diameter||60/76 mm|
|Thread||2 3/8 REG API Mod|
|Power pack speed||3000 rpm.|
|Load power pack||max. 47 hp.|
|Flow capacity||200 liter/min|
|Max. working pressure||40 bar|
|Hydraulic tank capacity||140 liter|
|2 front jacks and 2 rear jacks.|
|Lubricator of venturi-type for down-the-hole drills.|
|Max. pressure||25 bar|
|Oil tank capacity||4 liter|
|Overall length||3000 mm|
|Overall width||1550 mm|
|Overall height||2000 mm|
