Product Details:
|
| Drilling Rig Type: | Trailer Mounted | Drilling Depth: | 150m |
|---|---|---|---|
| Drilling Diameter: | 90-254mm | Drilling Methold: | DTH & Mud Drilling |
| Engine Power: | 44KW | Drill Pipe: | 76/89mm X 2m |
| Rotation Torque: | 2250 N-m | Rotation Speed: | 55-110 Rpm |
| Pull-up Capacity: | 7.5ton | Dimension: | 3500*1800*1900mm |
| Weight: | 2600kg | ||
| High Light: | water borehole drilling equipment,water well drilling machine |
||

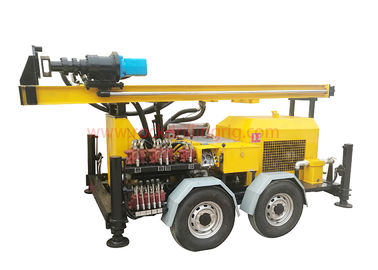

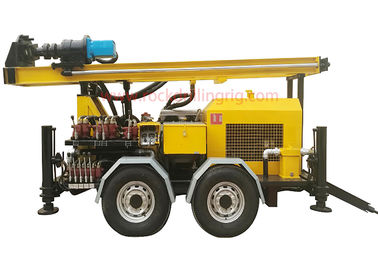

150m Four Wheels DTH And Mup Drilling Diesel Engine Water Well Drilling Rig
Application
TWD150B series drilling rig is a light, efficient and versatile drilling and drilling equipment. The drilling rig adopts
two-wheeled trailer type, which makes the transition convenient and quick.TWD150B mainly suitable for drilling
small-aperture wells, geothermal air-conditioning holes and other wells, especially for water intake projects in
mountainous and rock formations. The efficiency is ten times higher than the traditional rotary drilling rig, and the
economic benefits created for the users are extremely impressive.
In particular, it can drilling on hard rock layerand it can work efficiently under various geological structures.
It is the most popular machine meeting most requirements for a combination drilling machine able to complete rural
water supply holes in sediments and hard rock. Weighing about 3200-kg that allows it to be pulled by a pick-up it is
packed with features.
Characteristics
TWD150B combines an onboard power pack, drill pipe storage and foam pump on a single axle trailer.
This makes for a quick set up in most locations and is an ideal multipurpose rig for many water well drilling operations.
TWD150B has mud pump built in this high head pump can drill deeper faster than alternative skid mounted
centrifugal mud pumps and takes its power direct from the trailer power pack.
The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and
has low failure rate.The tower assembly has a hydraulic compensation mechanism. When the tower is grounded
during construction, the bearing capacity is greater and the stability is higher.
Specification
| Description | TWD150B |
| Geology drilled | All kinds |
| Drill depth | 0-150m |
| Drilling diameter | 90-254mm |
| Drill system and operation | Hydraulic |
| Rig assembly | Main engine driven |
| Mobility | 4 wheel tandem road trailer |
| Transportation | Towed by pickup or light truck |
| Drill pipe (diameter x length) | 76/89 mm x 2 m |
| DTH Hammer | 4-6 inch |
| Weight | 3200kg |
| Rotation&Feed System | |
| Rotation torque | 2250 N-m |
| Rotation Speed-Fast | 0-110Rpm |
| Rotation Speed-Slower | 0-55Rpm. |
| Pull-up capacity | 7.5 Ton |
| Diesel engine | |
| Power | 44KW |
| Dimension | |
| Overall length | 3500mm |
| Overall width | 1800mm |
| Overall height | 1900mm |
Packing&Delivery
