Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig

Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig
Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig

Large Image :  Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig

Product Details:
Place of Origin: Zhejiang,China
Brand Name: JCDRILL
Certification: CE,ISO,
Model Number: KG610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: nude packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 set per month

Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig

Description
Machine Type: Crawler Mounted Application: Mining,Quarry,DTH Drilling
Drilling Diameter: 105-202mm Drilling Hardness: F=6-20
Rotary Speed: 0-110rpm Lifting Force: 25 KN
Climing Capacity: ≤30° Dimension: 6700*2250*2850mm
Weight: 7100 Kg Drilling Depth: 40m
Diesel Engine: 92 KW Method Of Feed: Motor-Roller Chain
High Light:

rock drilling equipment

,

dth drilling rig

,

reverse circulation drilling machine

More Powerful KG610 Down the Hole Drill Equipment Rock Blast Earth Drilling Rig



Application

The KG610/KG610H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Cummins four-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The folding frame track,four-wheel drive are adopted and track leveling and the imported walking motor of plunger piston improve the working pressure and climbing capacity.The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position.The double motor is installed to raise the rotary torque and revolving speed;and the lifting hydraulic cylinder and chain are expanded to raise the lifting force and reliability.The dust collector is enlarged to produce a better effect on dust collection.The thickened profile folder is used for the housing,thus improving its level of intensity and rigidity;and the additional ring makes handing and lifting convenient

The KG610H down the hole drill rig for open use is equipped with a dust collector as optional parts,thus making operation more environment-friendly and reliable.

Characteristics

KG series Blast Hole Drilling Rig for granite are specially designed drill equipment, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate crawler drill hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling and etc.

Specifiction

KG610 drilling rig
Model KG610/KG610H
Rock rigidity f=6-20
Diameter of hole Φ105-202mm
Depth of economical drilling 40m
Rotation speed 0-110r/min
Rotation torque 4500N·m
Lift power 25000N
Feed way Motor-roller chain
Feed distance 4010mm
Walk speed 0-2.5Km/h
Gradeability ≤30°
Ground clearance 440mm
Weight 7100kg
Size of drill machine 6700x2250x2850
Sliding carriage pitch angle Blow 135°,up50°, total 185°
Sliding carriage swing angle Left100°,right45°,total 145°
Sliding carriage suppling length 900mm
Power CUMMINS QSB3.9-C125(92KW/2200r/min)
Drill pipe Φ76x3000mm/φ89X3000mm
Air consumption 15-26m³/min
Max height of horizontal hole 2850mm
Min height of horizontal hole 900mm

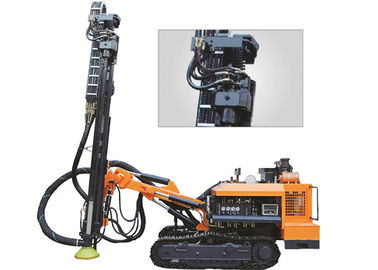

Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig 0

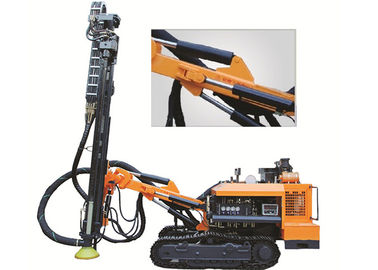

Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig 1

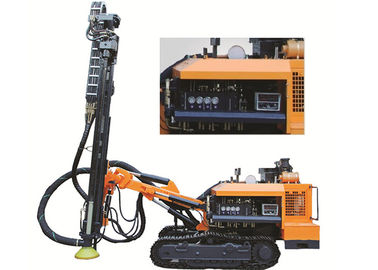

Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig 2

Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig 3

Packing& Delivery
 Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig 4

Powerful Kg610 Down The Hole Drilling Machine Rock Blast Earth Drilling Rig 5

Our Service

Pre-service:
Professional engineers to provide pre-sales technical advice and guidance supporting the planning, such as unit selection, matching, room design, answer difficult questions encountered by the user during use and provide technical guidance;
The sale:
Our company will sent professional and technical personnel to the installation site for installation and commissioning of the unit after receiving user notification , and do a good job with the user acceptance.
Standard unit responsible for guiding installation, commissioning
After-service:
The warranty period: from the date of acceptance or the date of one year warranty accumulated 1,000 hours (whichever occurs both), as a result of parts factory assembled negligence or improper design and selection of raw materials and other reasons caused the damage or other unit fault, may be responsible for the warranty by the supplier.
