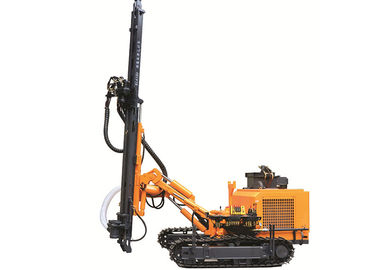

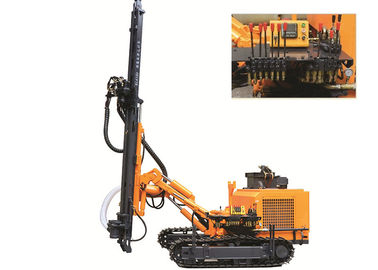

KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine

KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine
KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine

Large Image :  KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine

Product Details:
Place of Origin: Zhejiang,China
Brand Name: JCDRILL
Certification: CE,ISO,
Model Number: KG410
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 10000-20000 USD
Packaging Details: Wooden Box
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 set per month

KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine

Description
Machine: DTH Drilling Rig Application: Mining,Quarry,DTH Drilling
Drilling Depth: 25m Drilling Diameter: 90-115mm
Drilling Hardness: F=6-20 Rotary Speed: 0-120 Rpm
Lifting Force: 40 KN Climing Capacity: ≤30°
Dimension: 6000*2100*2000mm Weight: 4500 Kg
High Light:

rock drilling equipment

,

dth drilling rig

,

reverse circulation drilling machine

KG410 Down the hole drilling rig for open mine use, rock ground drilling Rig


Application
The KG410 down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity, and the additional ring makes handling and lifting convenient.



The KG410H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-fhendly and reliable.
KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine 0

KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine 1

KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine 2
Characteristics

KG410 DTH Borehole Drill Rig Machine has optimized hydraulic system, drill arm components and

walking components on the basis of KG920 drill machine. The KG410 type machine has large engine power(4DKCG2-80 (58KW 2400r/min)), stronger grade ability, more reasonable drilling angle, higher rotation speed and propulsion speed, long motor life and better reliability.

Specifiction

KG410 drilling rig
Model KG410
Rock rigidity f=8-12
Diameter of hole Φ90-115mm
Depth of economical drilling 25m
Rotation speed 0-120r/min
Rotation torque 1800N·m
Lift power 40000N
Feed way oil cylinder-plate type chain
Feed distance 3980mm
Walk speed 0-2.2Km/h
Gradeability ≤30°
Ground clearance 280mm
Weight 4700kg
Size of drill machine 6000x2100x2000
Sliding carriage pitch angle Blow 135°,up50°, total 185°
Sliding carriage swing angle Left100°,right45°,total 145°
Sliding carriage suppling length 900mm
Power YUCHAI 4DKC4G2-80
Drill pipe Φ64x3000mm/76x3000mm
Air consumption 10-17m³/min
Max height of horizontal hole 2840mm
Min height of horizontal hole 350mm



KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine 3


Packing& Delivery
 KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine 4
KG410 Dth Drilling Machine Rock Ground Drilling Rig 40 KN Lifting Force For Open Mine 5

Our Service

Pre-service:
Professional engineers to provide pre-sales technical advice and guidance supporting the planning, such as unit selection, matching, room design, answer difficult questions encountered by the user during use and provide technical guidance;
The sale:
Our company will sent professional and technical personnel to the installation site for installation and commissioning of the unit after receiving user notification , and do a good job with the user acceptance.
Standard unit responsible for guiding installation, commissioning
After-service:
The warranty period: from the date of acceptance or the date of one year warranty accumulated 1,000 hours (whichever occurs both), as a result of parts factory assembled negligence or improper design and selection of raw materials and other reasons caused the damage or other unit fault, may be responsible for the warranty by the supplier.
