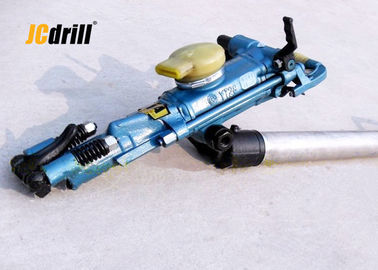

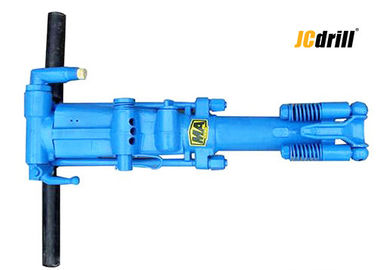

Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type

Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type
Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type

Large Image :  Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: YT26
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 10000Set/Year

Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type

Description
Model Number: YT26 Application: Concrete And Rock Drilling, Mining And Quarrying
Power Type: Pneumatic Working Pressure: 0.4-0.63Mpa
Air Consumption: 16-40m3/min Impact Frequency: ≥31HZ
No-Load Speed: ≥200r/min Hole Angle Range: 0-360°
Rotary Speed: 30-60 R/min Impact Energy: ≥65J
Cylinder Dia.*Stroke: 64*70mm Dimension: 650x534x12mm
Weight: 26kgs
High Light:

pneumatic jack hammer

,

pneumatic rock drilling machine

 YT26 Air compressor Power Type Hand Held Rock Drills 30 - 60 r/min Rotary Speed with air leg



Application

YT series hand held rock drill, feather small volume, light weight, and low air consumption, can drill

rock in dry. It is suitable for drilling vertical downward or gradient blasting holes or secondary blasting

holes in the surface of rocks in construction of mines, stone pits, road building in mountainous area and water conservation.

YT series rock drill , equipped with independent strong blowing system, is suitable for drilling vertical

downward blasting holes.

Characteristics

1. Moil point, wide chisel, narrow chisel: used for breaking;

2. Splinting rock tool: used for cleaving rocks;

3. Spade: used for excavating the frozen and hard earth;

4. Bended, horseshoe tamping spade: use for tamping roadbed of railway;

5. Square, round tamping plate: used for small area tamping.

Specification

Type   YT26
Weight Kgs 26
LxL(Handle) x H mm 650x534x12
Cylinder stroke mm 64*70
Air consumption L/S ≤50
Air hose size mm 19
Water hose size mm 13
Bore dia mm 32-42
Drilling depth mm 5
Shank mm 22(25)x108
*Both hand held and with airleg available.

Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type 0

Packing& Delivery

Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type 1                        Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type 2

Service

Light Weight Hand Held Pneumatic Rock Drilling Machine Air Compressor Power Type 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
