Product Details:
|
| Model Number: | YT26 | Application: | Concrete And Rock Drilling, Mining And Quarrying |
|---|---|---|---|
| Power Type: | Pneumatic | Working Pressure: | 0.4-0.63Mpa |
| Air Consumption: | 16-40m3/min | Impact Frequency: | ≥31HZ |
| No-Load Speed: | ≥200r/min | Hole Angle Range: | 0-360° |
| Rotary Speed: | 30-60 R/min | Impact Energy: | ≥65J |
| Cylinder Dia.*Stroke: | 64*70mm | Dimension: | 650x534x12mm |
| Weight: | 26kgs | ||
| Highlight: | pneumatic jack hammer,air operated jack hammers |
||

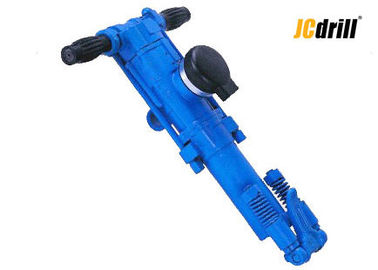

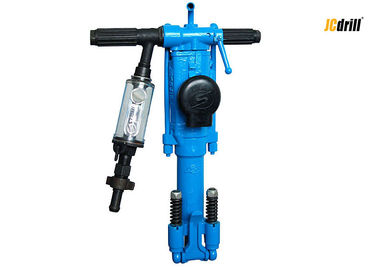

Atlas Copco Pneumatic Jack Hammer Pusher Leg Rock Drill for Quarry Blast Hole YT26
Characteristics
1. Moil point, wide chisel, narrow chisel: used for breaking;
2. Splinting rock tool: used for cleaving rocks;
3. Spade: used for excavating the frozen and hard earth;
4. Bended, horseshoe tamping spade: use for tamping roadbed of railway;
5. Square, round tamping plate: used for small area tamping.
Application
YT series hand held rock drill, feather small volume, light weight, and low air consumption, can drill
rock in dry. It is suitable for drilling vertical downward or gradient blasting holes or secondary blasting
holes in the surface of rocks in construction of mines, stone pits, road building in mountainous area and water conservation.
YT series rock drill , equipped with independent strong blowing system, is suitable for drilling vertical
downward blasting holes.
Specification
| Type | YT26 | |
| Weight | Kgs | 26 |
| LxL(Handle) x H | mm | 650x534x12 |
| Cylinder stroke | mm | 64*70 |
| Air consumption | L/S | ≤50 |
| Air hose size | mm | 19 |
| Water hose size | mm | 13 |
| Bore dia | mm | 32-42 |
| Drilling depth | mm | 5 |
| Shank | mm | 22(25)x108 |
| *Both hand held and with airleg available. | ||
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
