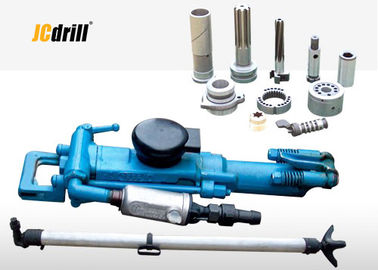

Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry

Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry
Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry

Large Image :  Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: YT24
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 10000Set/Year

Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry

Description
Model Number: YT24 Application: Concrete And Rock Drilling, Mining And Quarrying
Power Type: Pneumatic Working Pressure: 0.4-0.63Mpa
Air Consumption: 16-40m3/min Impact Frequency: ≥31HZ
No-Load Speed: ≥200r/min Hole Angle Range: 0-360°
Rotary Speed: 30-60 R/min Impact Energy: ≥65J
Cylinder Dia.*Stroke: 70*70mm Dimension: 678x228x184mm
Weight: 24kgs
Highlight:

air operated jack hammers

,

pneumatic rock drilling machine

 High Efficiency Small Pneumatic Rock Drill for 0.4 - 0.63 Mpa Working Pressure YT24



Application

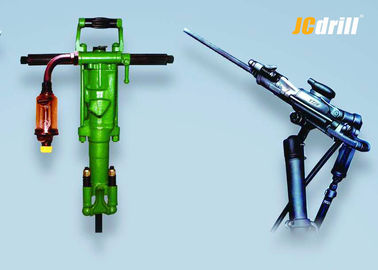

YT24 jack hammer air leg rock drill is rock drilling equipment which have lower noise and more efficient. It's widely used in coal mine, railway, traffic, water conservancy,etc. it can be used with FT140BD short air leg and FT140B long air leg.



We have a wide range of pusher leg and stopper rock drills to cover all construction, tunneling and mining applications in different rock formations. They are robust but simply designed, with high impact energy and low air consumption.



This air leg pneumatic Rock Drill is widely used in metallurgy, coal industry, road construction, mining and other drilling operations.

Characteristics

1. Easily-accessible position throttle

2. Integral muffler,lower noise

3. It accepts heavy duty bits

4. Reliable structure,easy and stable operation

5. Drill diam. can be from 32mm-60mm.

6. Hand-held and air legs rock drill accessible.

7. Provide the ultimate combination of performance and economy.

8. Smart,and durable.

Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry 0

Specification

1 Type   YT24
2 Weight Kg 24
3 Length (mm) 678
4 Cylinder diameter mm φ70
5 Piston stroke mm 70
6 Working pressure Mpa 0.4~0.5
7 Impact energy J 44.7
8 Impact frequency Hz ≥31
9 Air consumption L/s ≤66.7
10 Working water pressure Mpa 0.2~0.3
11 Air pipe inner dia mm φ19
12 Water pipe inner dia mm φ13
13 Rock drill hole dia mm φ34~φ42
14 Rock drill hole depth  m 5
15 Shank size mm 22×108

Packing& Delivery

Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry 1                        Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry 2

Service

Small Air Leg Pneumatic Rock Drill High Efficiency For Metallurgy / Coal Industry 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
