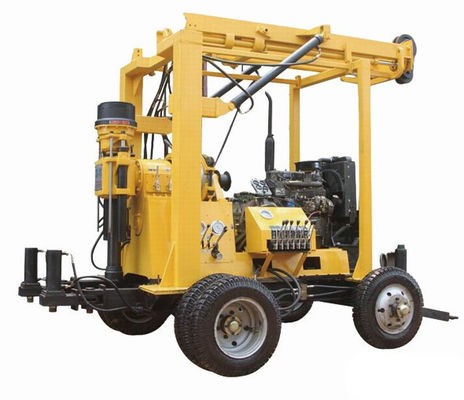

Multifunctional Trailer Mounted Water Well Drilling Rig With 80 Rpm Rotation Speed

Multifunctional Trailer Mounted Water Well Drilling Rig With 80 Rpm Rotation Speed
Multifunctional Trailer Mounted Water Well Drilling Rig With 80 Rpm Rotation Speed Multifunctional Trailer Mounted Water Well Drilling Rig With 80 Rpm Rotation Speed

Large Image :  Multifunctional Trailer Mounted Water Well Drilling Rig With 80 Rpm Rotation Speed

Product Details:
Place of Origin: China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: JXY300
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard Export package
Delivery Time: 1week
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000set/year

Multifunctional Trailer Mounted Water Well Drilling Rig With 80 Rpm Rotation Speed

Description
Model Number: JXY300 Drilling Depth: 0-600m
Drilling Diameter: 300mm Drill Pipe Length: 4.5m
Usage: Water Well Drilling Drilling Methold: DTH Drilling & Mud Drilling
Rotation Speed: 0-80rpm Engine Power: 41HP
Drill Pipe: 76/89mm Mud Pump: BW250/BW160
Warranty: 1year
Highlight:

water well drilling equipment

,

water borehole drilling equipment

80 rpm Rotation Speed Trailer Mounted Water Well Drilling Rig 300mm Dia 600m Drilling Depth

XYX-3 multifunctional trailer mounted portable water well drilling rig with 600m and 300mm drilling capacity
Introduction
XYX-3 Portable water well drilling rig is a portable drilling rig, adopting the latest technology for diamond
drilling.
It is widely used for water well, geological exploration, mining exploration, geothermal well, irrigation
well, bridge conservancy, etc.



Features
1. Power supply: diesel engine or electric motor as options; diesel engine is started by electric battery.
2. Mobile base: It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
3. Automobile transmission assembly: with 10 grades forward rotation speed and 2 grades reverse rotation speed,can meet various stratum drilling requirements.
4. Mud pump: designed wih BW-200 or BW-250 mud pump, XY-600F is with much larger water flushing rate, with better scraps cleaning effects.
5. For different stratum: soil, sand, gravel, rocks. XY-600F can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.
6. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity
and big transfer torque.
7. The entire machine is featured by strong adaptability, high motive power, low cost and broad
compatibility.

8. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of
construction efficiency.
9. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.

Specification

Drilling depth
m 100-600
Open hole caliber mm 300
End hole caliber mm 75
Drilling rod mm Φ60
Drilling angle   90°-65°
Spindle
Spindle forward speed r/min 57-1024
Spindle reverse speed r/min 45-212
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity KG 6000
Hoist
Single line lifting speed m/s 0.515 0.894 1.421 1.948
Hug floodgate belt width mm 90
Tightrope caliber mm 12.5 or 14
Hoist single line lifting capacity KG 3000
Reel caliber mm 200
Reel cubic measure m 30
Mud pump
Horizontal double actuator
Displacement L/min 200,125
Triangle conveyer belt type   B×5
Work pressure Mpa 4.6
Water inlet caliber mm 65
Water to exit caliber mm 37
Oil pump
Duplex gear oil pump F532/F314
Front displacement,pressure   32L/min 20Mpa
Behind displacement,pressure   14L/min 20Mpa
Drilling rig Power
Diesel engine Hp 395Kz 41HP
Electric motor KW Y180L-4 30KW



Any more technical question of this borehole drilling rig please feel free contact with our water well drilling rig department:
