Portable DTH Drilling Equipment

Portable DTH Drilling Equipment
Portable DTH Drilling Equipment Portable DTH Drilling Equipment

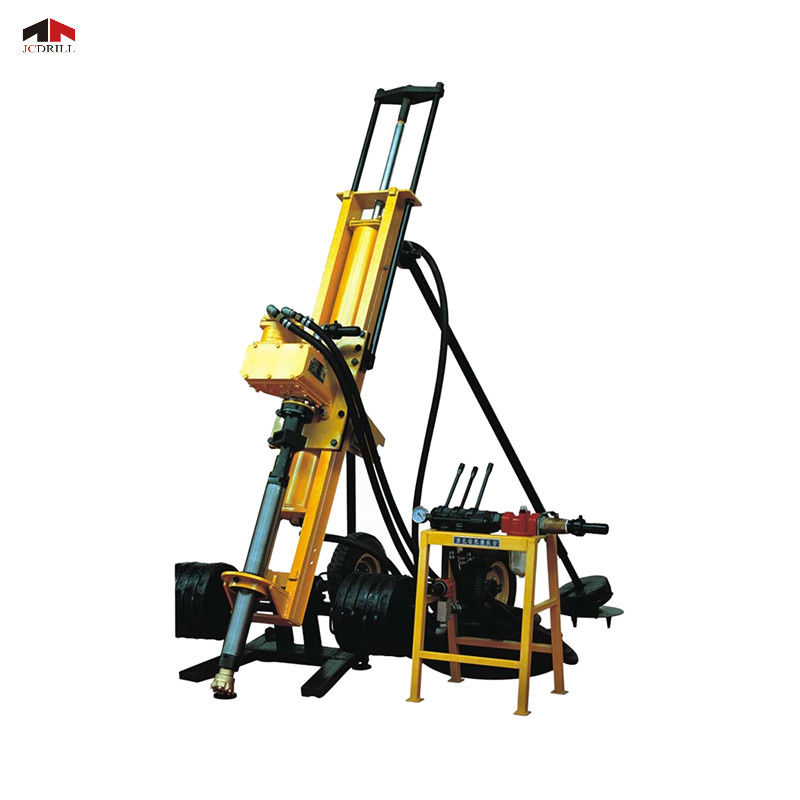

Large Image :  Portable DTH Drilling Equipment

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: DM100A
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export ocean transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000Set/year

Portable DTH Drilling Equipment

Description
Model Number: DM100A Application: Rock Balsting Drilling Rig
Drilling Depth: 25m Drilling Diameter: 70-130mm
Drill Rod: 50*1000mm Rock Hardness: F=8-16
Rotation Speed: 0-80rpm Working Pressure: 5-7bar
Air Consumption: 9-17m3/min Lifting Power: 600N
Feed Stroke: 1.3m Weight: 245kgs
High Light:

rock drilling equipment

,

dth drilling rig

DM100A Portable Pneumatic Rock Drilling Rig DTH Drilling Equipment 0 - 80 Rpm Rotation Speed



Application

The rock blasting drilling rig DM100A/B is high powered with easy operation system. The pneumatic drill could be applied in open mine, water and electricity projects, railway and highway construction project. Within rock hardness range f=8-16,the quarry drilling machine can reach a higher drilling speed; the rubber hose braided with steel wire could bear high pressure; anchor holes could use on the two sides of slides by the M42X10X1.5 screw holes, which also could be used to fix optional (XQ) sled bearing drill holes 0 ° -90 °; or work with vertical shaft underground and Channel drilling 0°-360°borehole and ventilation, drain holes.The construction drilling equipment DM100A/B is really a gear helping hands for you to improve efficiency.

Characteristics

1. Forward,turn,and the impact of all the compressed air as power,structure simple ,power,relocation facilities.

2. In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.
3. Centralized control mechanism,easy to operate.
4. Unique dual muffler,muffler effect, reducing environmental pollution

Specifiction

MODEL DM100A DM100B
Air pressure(Mpa) 0.5-0.7 0.5-0.7
Hole diameter(mm) 75-130 75-130
Air consumption(m3/min) 9-17 6-12
Hole depth(m) 20 20
Feed Stroke(m) 1 1
Lifting power(N) 600 600
Rotation Speed(r/min) 0-80 110
Rock hardness f=8-16 f=8-16
Drive mode Wind motor Motor(Electricity)
Rated power(kw) 4 4
Drill pipe φ50×1m φ50×1m
Size 2700×450×630 2700×420×610
Weight(kg) 245 300

Packing& Delivery

Portable DTH Drilling Equipment 0

Service

12'' High Pressure DTH hammer for fundation,construction and borehole drilling ,305-445mm hole range

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
