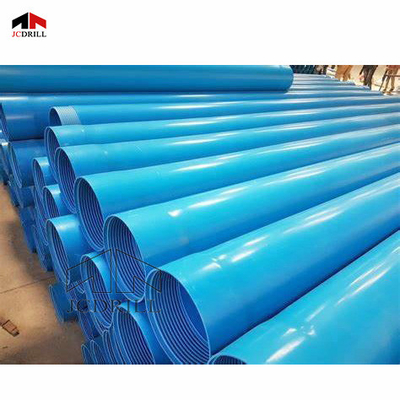

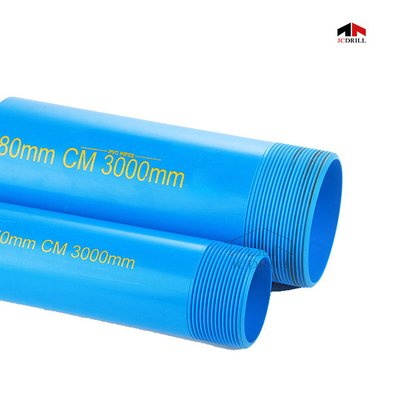

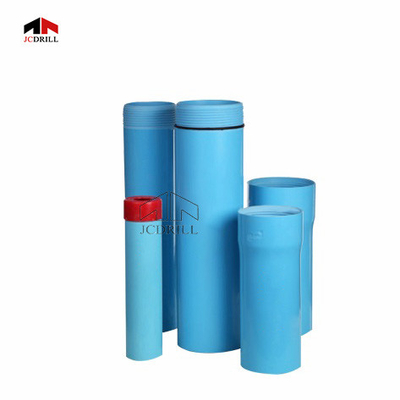

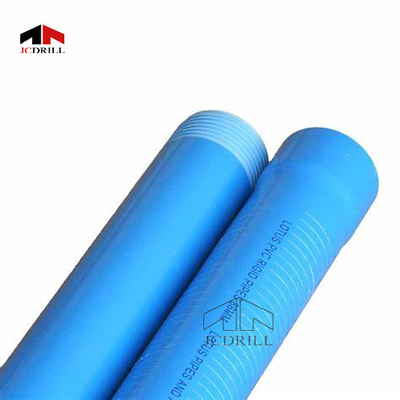

Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted

Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted
Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted
Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted

Large Image :  Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: 110x3000mm
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: 8.33
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram

Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted

Description
High Light:

slotted water well pvc pipe

,

large diameter water well pvc pipe

,

plastic slotted pvc pipe

deep well slotted pvc pipe pvc water well casing pipe

Introduction

PVC perforated pipes have a wide range of applications, and can be divided into well wall pipes, water filter pipes, ventilation pipes, rainwater collection pipes, asphalt pipes, etc. according to their uses.

Used in well-drilling engineering; drainage system; ventilation of grain storage and grain piles; rainwater collection and reuse; agricultural irrigation; water plant mud drainage and many other fields.

It is also used in airports, railways, highways, sports fields, parks, roof gardens, retaining walls, basements, tunnels, slope protection and drainage projects.

It can effectively reduce groundwater pressure, remove excess water, protect soil and buildings from damage due to seepage deformation, and protect flowers and trees from waterlogging.



Specification


Size

(Out Diameter)

(0.80 Mpa) (1.0 Mpa) (1.25 Mpa) (1.6 Mpa) (2.0 Mpa)
mm Inch Weight Thickness Weight Thickness Weight Thickness Weight Thickness Weight Thickness
Kgs/m mm Kgs/m mm Kgs/m mm Kgs/m mm Kgs/m mm
40 1.25     0.41 2 0.47 2.4 0.56 3 0.68 3.7
50 1.5 0.5 2 0.58 2.4 0.72 3 0.85 3.7 1.06 4.6
63 2 0.79 2.5 0.95 3 1.15 3.8 1.41 4.7 1.68 5.8
75 2.5 1.07 2.9 1.3 3.6 1.63 4.5 1.9 5.6 2.39 6.9
90 3 1.53 3.5 1.88 4.3 2.33 5.4 2.8 6.7 3.41 8.2
110 4 1.87 3.4 2.23 4.2 2.82 5.3 3.4 6.6 4.2 8.1
125 4.5 2.41 3.9 2.95 4.8 3.33 6 4.44 7.4 5.4 9.2
160 6 3.89 4.9 4.8 6.2 5.97 7.7 7.24 9.5 8.87 11.8
200 8 6.14 6.2 7.3 7.7 9.31 9.6 11.19 11.9 13.84 14.7
225 9 7.69 6.9 9.1 8.6 11.97 10.8 14.41 13.4 17.53 16.6
250 10 9.51 7.7 11.4 9.6 14.4 11.9 17.7 14.8 21.61 18.4
280 11 11.88 8.6 14.7 10.7 18.2 13.4 22.19 16.6 27.08 20.6
315 12 15.09 9.7 18 12.1 22.89 15 28.17 18.7 34.31 23.2



Material

Large Diameter Plastic Upvc Water Well Pvc Pipe Slotted 1

PVC-U, unplasticised polyvinyl chloride is an ideal material for manufacturing well pipes as it is impervious to corrosion and chemical action, easy to handle and install, light in weight, non-toxic, and non-conductive. Its long service life makes it an economical choice over other materials.






Pictures




Advantages
1. Light weight, easy to load and unload: UPVC pipe is very light, convenient to handle loading unloading, and installing.
2. Good chemicals and drugs resistance: UPVC pipe has its excellent resistance to the erosion caused by acids and alkalines, a great help to the chemical industries.
3. Small resistance to fluidity: The smooth surface of UPVC pipe reduces resistance to the fluids. Its roughness coefficient is only 0.009, much less than other pipes, Under same discharges, smaller cabibre of the pipe can be uesd.
4. Strong mechanical strength: Good resistance to water pressure, outside impact and pressure, is satisfied under any conditions.
5.Good electrical insulation: UPVC pipe has excellent insulation nature against electricity. It can be served as conduits and pipes in construction cable and wire.
6. Water quality unaffected: The solution tests on the PVC pipe show no affect on water quality when the water flows through is. It is considered the best piping material for running water works.
7.Simple installation: Very easy to connect, thus much time and laborcost may be saved.

Packaging & Delivery


FAQ

Q: Are you original manufacturer?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have

the whole series products you need.

Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take?

A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.

Q: How about after sales service?

A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

Q: Spare parts when you need them?

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
