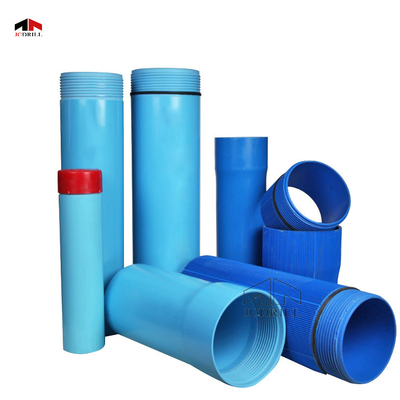

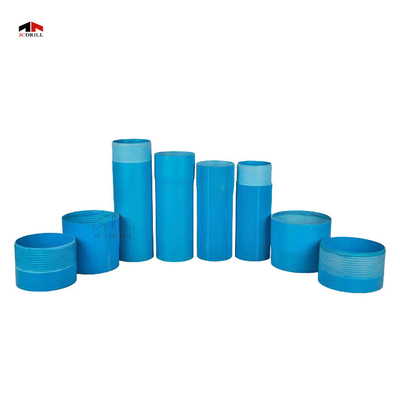

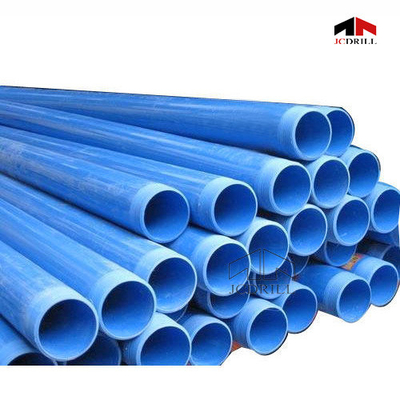

Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply

Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply
Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply
Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply

Large Image :  Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: 110x3000mm
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: 8.33
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram

Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply

Description
High Light:

water supply upvc casing pipe

,

110x3000mm upvc casing pipe

,

water supply plastic casing pipe

PVC Casing Pipe Water Well PVC Casing Pipes with Slots

Introduction

PROPERTIES:

# Suitable for bore or tube well supplies

# Light weight offers total economy in handling, transportation & intallation

# Seamless, Strong & Resilient

# Longer lasting PVC is free from weakness caused by formation, rusting and weathering

# Economically sound

# Durable and maintenance free

# Maximum ambient temperature: 70' C

# Maximum installation depth - 80mtr to 250mtr

# It can be installed vertical inclined



APPLICATIONS:

# Domestic wells, Irrigation wells, industrial wells and mines

# Waste water (Drainage & Sewage)

# Urban and rural areas drinking water scheme



SPECIFICATIONS:

Product Name: UPVC CASING PIPE

Range: 1.5" to 16" Outer Diameter

Standard: IS 12818:2010

Colour: Blue

Length: Available in 3mtr & 6mtr

Grade: CM & CS

Types: Socketed Pipe with thread ended



PLAIN PIPES:

These can be used as extension pipe to screen pipe. They are two types:

# C.S. Pipe: For Shallow-depth (up to 80mtr) red colour code

# C.M. Pipe: For Medium-depth (up to 250mtr) yellow colour code

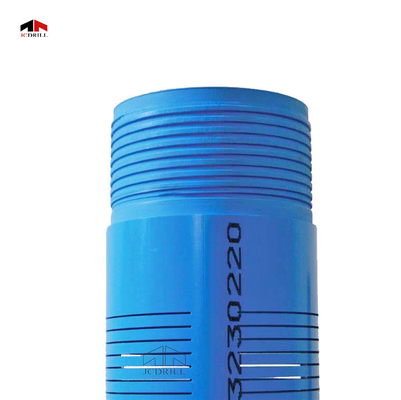

SCREEN PIPES:

These pipes may be plain or ribbed. They have transverse slots and are mainly used in borewells, from the water-table level onwards.



RIBBED SCREEN PIPES:

These pipes have longitudinal and transverse slots. The ribs keep granulated soil away from the slots, and increase the permeability rating to more than double when compared to plain screen pipes.


Specification


Size

(Out Diameter)

(0.80 Mpa) (1.0 Mpa) (1.25 Mpa) (1.6 Mpa) (2.0 Mpa)
mm Inch Weight Thickness Weight Thickness Weight Thickness Weight Thickness Weight Thickness
Kgs/m mm Kgs/m mm Kgs/m mm Kgs/m mm Kgs/m mm
40 1.25     0.41 2 0.47 2.4 0.56 3 0.68 3.7
50 1.5 0.5 2 0.58 2.4 0.72 3 0.85 3.7 1.06 4.6
63 2 0.79 2.5 0.95 3 1.15 3.8 1.41 4.7 1.68 5.8
75 2.5 1.07 2.9 1.3 3.6 1.63 4.5 1.9 5.6 2.39 6.9
90 3 1.53 3.5 1.88 4.3 2.33 5.4 2.8 6.7 3.41 8.2
110 4 1.87 3.4 2.23 4.2 2.82 5.3 3.4 6.6 4.2 8.1
125 4.5 2.41 3.9 2.95 4.8 3.33 6 4.44 7.4 5.4 9.2
160 6 3.89 4.9 4.8 6.2 5.97 7.7 7.24 9.5 8.87 11.8
200 8 6.14 6.2 7.3 7.7 9.31 9.6 11.19 11.9 13.84 14.7
225 9 7.69 6.9 9.1 8.6 11.97 10.8 14.41 13.4 17.53 16.6
250 10 9.51 7.7 11.4 9.6 14.4 11.9 17.7 14.8 21.61 18.4
280 11 11.88 8.6 14.7 10.7 18.2 13.4 22.19 16.6 27.08 20.6
315 12 15.09 9.7 18 12.1 22.89 15 28.17 18.7 34.31 23.2



Material

Plastic Pvc 110x3000mm Upvc Casing Pipe / Hose For Water Supply 1

PVC-U, unplasticised polyvinyl chloride is an ideal material for manufacturing well pipes as it is impervious to corrosion and chemical action, easy to handle and install, light in weight, non-toxic, and non-conductive. Its long service life makes it an economical choice over other materials.




Technology Design



PVC CASING..jpg









Pictures




Tensile Strength

The tensile strength required can be calculated on the basis of pipe weight. In addition to the pipe weight, gravel that gets stuck in the joints during the assembly and settlement phase should be considered in design calculations. The lower load bearing capacity of screen pipes with slots should be considered when developing the well or when pumping (due to large differences in water level). The effect of such pressures cannot be precisely determined. When sinking pipes through clay layers, additional compressive forces are exerted due to swelling clays. This can happen at any depth and in extreme cases may cause considerable strain on the material surface. The values indicated in the tables of this brochure are based on the minimum wall thickness of the pipes, their diameters and material composition.



Impact of Temperature

Temperature conditions prevailing during the laying of PVC-U well pipes will influence the mechanical properties of the material. High temperature between 30° C and 40° C as indicated by the creep strength in relation to time, the PVC-U material properties provide sufficient safety factor for the intended use. It is however important to determine the other influences while encasing the well pipes with concrete to seal the drill holes. Temperature increases can be caused by the hydration heat of concrete. Calculations however show that these temperatures do not normally exceed 15°C. With the temperature of unset concrete reaching approx. 18°C, the temperature within the seal will be slightly more than 30°C and that is within the optimum limits.



Packaging & Delivery


FAQ

Q: Are you original manufacturer?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have

the whole series products you need.

Q: Which payment terms are available to us?

A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

Q: How long will the delivery time take?

A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.

Q: How about after sales service?

A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

Q: Spare parts when you need them?

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
