Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug

Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug
Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug

Large Image :  Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: Hoist Plug-TYQ-K
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug

Description
Model Number: Hoist Plug-TYQ-T01/02 Type: Wireline Core Drilling Tools
Product Name: Hoist Plug Application: Wire Line Core Drilling
Color: Black Package: Wooden Box Package
Series: Hoist Plug-TYQ-T01/02 Weight: 10kg/16.5kg
High Light:

hoisting plug diamond core drilling tools

,

aw rod diamond core drilling tools

,

nw drill rod hoisting plug

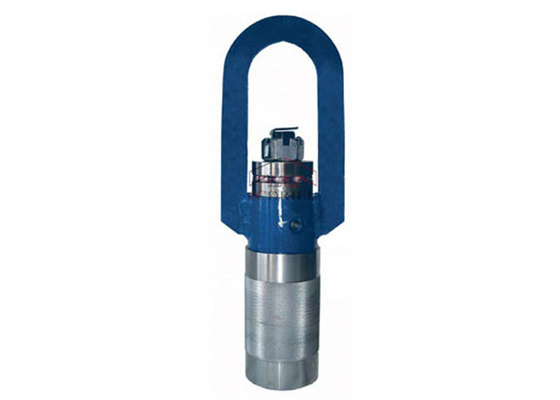

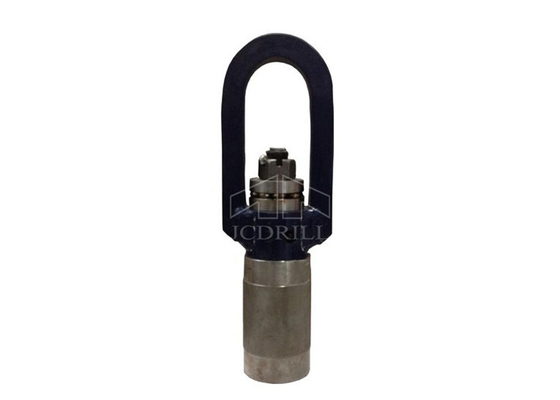

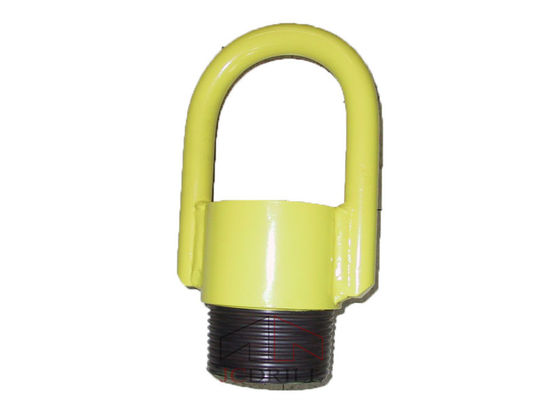

AW BW NW Drill Rod Hoisting Plug



>> Introduction

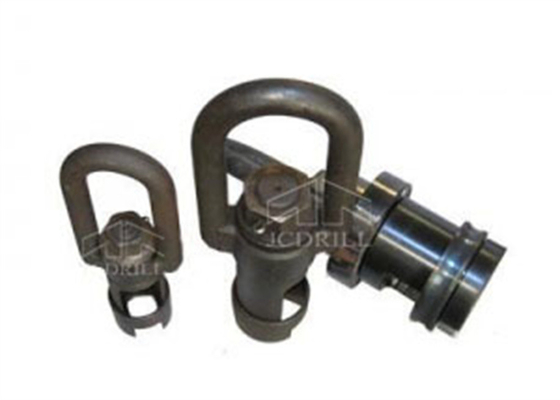

In exploration drilling, hoist plug is used to hoist and lower rods.Jcdrill hoist plugs feature easy and safe operation and available in T and K configu-rations. International standard T hoist plugs have T01 and T02 sizes, in which T01 is suitable for use with A, B and N rods, T02 is suitable for use with H, P and S rods.
The patented K hoist plug feature wider range of application and greater safety in deep and demanding drilling.K hoist plug need to be used with mushroom heads. The blank end of mushroom head fits tightly in the slot of hoist body, and the other end is threaded to be connected with rod string.
>> Characteristics

1. available in T and K types.
2. we have in stock all hoist plugs.
3. long bit life and good performance.
4. cost effictive;
>> Specification
Whole set drilling tools we supply:
diamond circle wrenches ,carbide circle wrenches, casing circle wrenches.Stop Ring, Core lifter, Core lifter case, Locking coupling, adaptor coupling, Landing ring, Inner tube Stabilizer, overshot, Casing tube, Casing bit, hoist plug, fishing tools,wrenches, sub adaptor, foot clamp,etc...
T hoist plug Structure diagram



Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug 0

T01 hoist plug parts and Description

ID# Item Description Spare Parts Unit Weight(kg)
1-6 T01 hoist plug TYQ-T01   set 10.00
1 Raiser ring TYQ-T01-TYHZ   pc 5.30
2 Hex nut TYQ-T01-SJM * pc 0.50
3 Cotter pin KKX-5*120 * pc 0.01
4 Bearing cap TYQ-T01-YG   pc 0.40
5 Bearing ZC-51309 * pc 0.66
6 Spindle TYQ-T01-TYT   pc 3.10
7 Lower Connection TYQ-T01-XJT   pc



T02 hoist plug parts and Description

ID# Item Description Spare Parts Unit Weight(kg)
1-6 T02 hoist plug TYQ-T02   set 16.50
1 Raiser ring TYQ-T02-TYHZ   pc 7.40
2 Lock nut TYQ-T02-SJM * pc 0.60
3 slotted pin KKX-5*120 * pc 0.01
4 Bearing cap TYQ-T02-YG   pc 0.50
5 Bearing ZC-51212 * pc 0.66
6 Spindle TYQ-T02-TYT   pc 4.90
7 Lower Connection TYQ-T02-XJT   pc

>> Our Service

Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug 1

>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.

>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special equirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.





>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up. >> E-mail, call or door-to-door service in later using.









>> Certification

Aw Bw Nw Drill Rod Diamond Core Drilling Tools Hoisting Plug 2
>> About Us


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.











>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us? Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.





A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.





Q: How long will the delivery time take? Q: How about after sales service? Q:Spare Parts When You Need Them

A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.



A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
