Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot

Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot
Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot

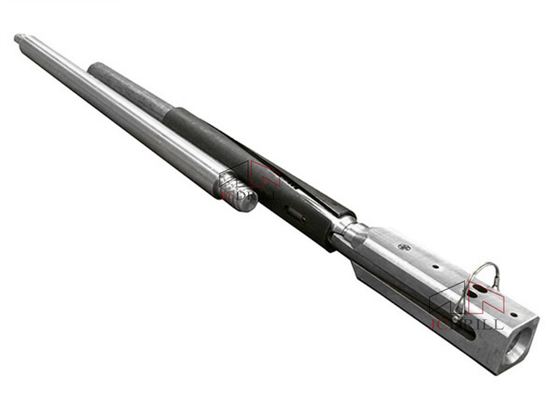

Large Image :  Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: DLG-AQ
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot

Description
Model Number: DLG-AQ Type: Overshot For Wireline Core Drilling
Standard: AQ BQ NQ HQ PQ Product Name: Core Overshot Assembly
Application: Wire Line Core Drilling Color: Black
Package: Wooden Box Package Series: DCDMA Wire Line Q Series
Weight: 3.94 Kg
High Light:

overshot pq core barrel

,

ce nq size core barrel

,

overshot hq core barrel assembly

AQ BQ NQ HQ PQ Ezy Lock Lifting Dog Core Barrel Overshot For Wireline Diamond Core Drill Assembly
>> Introduction

Overshot is a necessary device in wireline drilling. It's dropped on a cable and directly couples onto and lift up the inner tube assembly, eliminating the need to couple and uncouple the rod string each time the core is retrieved.

Ezy Lock Overshot is a modified product based on compact overshot. It protects against accidental release of the core barrel. This is ideal for suface application when hoisting above ground. Q series overhshot are available in A, B, N, H and P size.
Aq Bq Nq Hq Pq Ezy Lock Lifting Dog Core Barrel Overshot 0

The structure and work principle of C series wire line drilling tools C series wire line drilling tools included core barrel assembly and overshot assembly:Outer tube assembly contains locking coupling,adapter coupling ,landing ring,reaming shell,outer tube,outer tube and bit. inner tube assembly including spearhead point,detent mechanism,adjusting mechanism, Pensile institutions, tube assembly remove institutions, In position news agency and Core jams news agency etc.

>> AQ Overshot Assembly structure diagram

ID# Item Decription Unit Weight(Kgs)
1-18 Overshot DLG-AQ Set 3.94
1 Eye bolt D-AQ-XZ Pc 0.1
2 Cable swivel collar D-AQ-ZT Pc 0.2
3 Bearing group D-AQ-ZCZ Set 0.15
4 Lock nut LM-M12 Pc 0.01
5 Slotted pin KKX-2*25 Pc 0.01
6 Jar tube D-AQ-LJT Pc 0.3
7 Upper tube D-AQ-STT Pc 0.58
8 Lower tube D-AQ-XTT Pc 0.7
9 Lower tube sub D-AQ-XJT Pc 0.2
10 Jar bar D-AQ-LG Pc 0.65
11 Locking sleeve D-AQ-TKG Pc 0.3
12 Set screw(2) JDLD-M8*8 Group 0.02
13 Ball GQ-8.7 Pc 0.01
14 Lifting dog spring(2) D-AQ-LGTH Group 0.02
15 Spring pin TXX-10*30 Pc 0.02
16 Spring pin TXX-8*30 Pc 0.01
17 Overshot head D-AQ-LGJ Pc 0.6
18 Lifting dog(2) D-AQ-DLG Pc 0.12
