Api Standard Overshot Assembly Hq Core Barrel For Surface Wireline Drilling

Description
Model Number: Core Barrel HQ Head Type: Double Core Barrel
Standard: AQ BQ NQ HQ PQ Product Name: Core Barrel Assembly
Application: Wire Line Core Drilling Color: Black
Package: Wooden Box Package Series: DCDMA Wire Line Q Series
Weight: 13.70kg Diamters: BC NC HC PC BC3 NC3 HC3 PC3 T Series
Length: 1.5m, 3m
High Light:

api standard hq core barrel

,

surface wireline drilling hq core barrel

,

overshot hq core barrel assembly

api standard overshot assembly double tube mining drilling tools hq core barrel for surface wireline drilling


>> Introduction

A wireline coring system includes core barrel assembly and overshot assembly.The core barrel assembly is composed of inner tube group and outer tube group.Inner & outer tubes have standard length of 1.5 meters and 3 meters.

The head assembly provides: latching and pivoting spearpoint mechanisms to allow insertion and retrieval of the inner tube assembly, a bearing assembly to allow the inner tube to remain stationary and avoid sample damage while drilling, fluid pressure operating indications and fluid control valves.

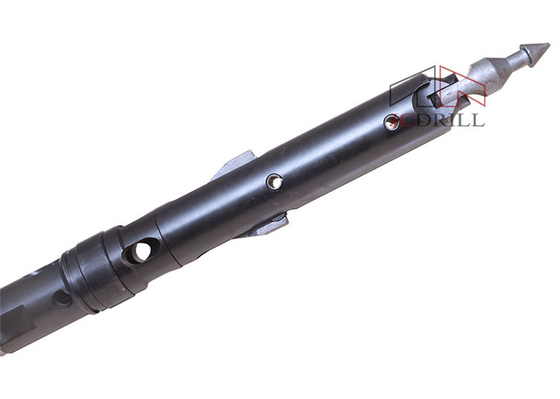

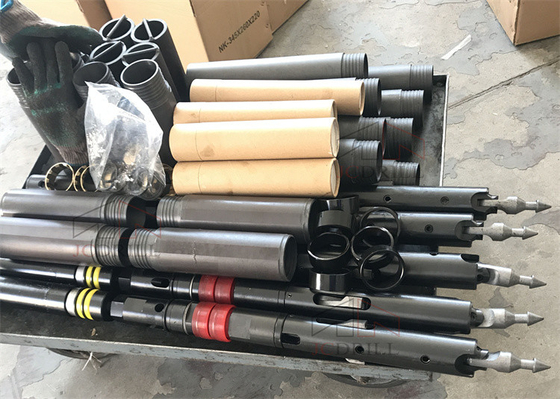

Api Standard Overshot Assembly Hq Core Barrel For Surface Wireline Drilling 0


All head assemblies incorporate a shut off valve assembly which provides a fluid pressure signal to the drill operator when the valve members are compressed, indicating a full or blocked inner tube.

The core barrel assembly is composed of the inner-tube group and outer-tube group.The inner-tube group is composed of:Head Assembly,Inner Tube,Core Lifter Case,Core Lifter,Stop Ring.
The inner-tube group collects the core sample during the drilling process and is independent of the outer-tube group. The outer-tube group is composed of the remainder of the core barrel components:

Locking Coupling,Adapter Coupling,Outer Tube.
The outer-tube group always remains at the bottom of the hole and houses the inner-tube group during the drilling process.



ID# Item Description Unit Weight(Kg)
AQ
1-11 3m core barrel SZJ-AQ-3000 Set 24.27
1-11 1.5m core barrel SZJ-AQ-1500 Set 15.29
BQ
1-11 3m core barrel SZJ-BQ-3000 Set 40.45
1-11 1.5m core barrel SZJ-BQ-1500 Set 25.49
NQ
1-11 3m core barrel SZJ-NQ-3000 Set 64.88
1-11 1.5m core barrel SZJ-NQ-1500 Set 47.31
HQ
1-11 3m core barrel SZJ-HQ-3000 Set 98.30
1-11 1.5m core barrel SZJ-HQ-1500 Set 67.53
PQ
1-11 3m core barrel SZJ-PQ-3000 Set 142.50
1-11 1.5m core barrel SZJ-PQ-1500 Set 100.29



Double tube surface
Size(surface exploration drill) Metric system(mm) Imperial system(in)
Hole diameter Core diameter Hole diameter Core diameter
BQ 60 36.4 2.36 1.43
NQ 75.7 47.6 2.98 1.88
HQ 96.1 63.5 3.78 2.5
PQ 122.7 85 4.83 3.34
Triple tube surface
NQ3 75.7 45 2.98 1.78
HQ3 96.1 61.1 3.78 2.41
PQ3 122.7 83 4.83 3.27

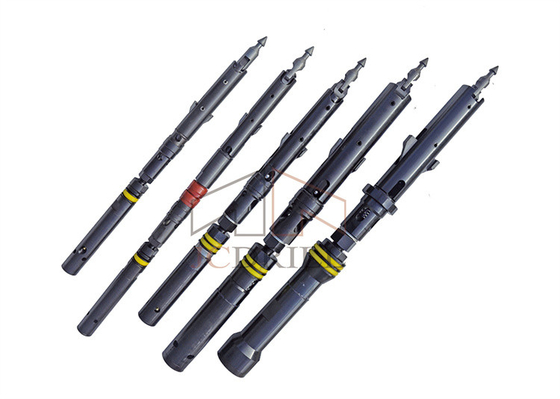

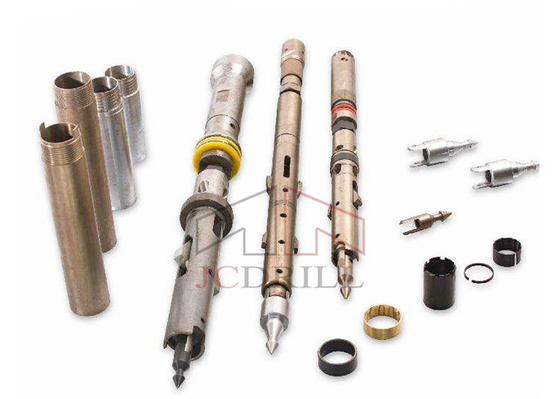

>> HQ Head Assembly structure diagram

ID# Item Decription Unit Weight(kg)
1-29 Head Assembly HQ-TKZC Set 18.90
1 Spearhead HQ-TK-LMT Pc 0.27
2 Detent Spring HQ-TK-DWTH Pc 0.01
3 Detent pin HQ-TK-DWX Pc 0.02
4 Spearhead point base HQ-TK-MTZ Pc 0.8
5 Latch retracting case HQ-TK-HSG Pc 2.9
6 Spring pin TXX-11*35 Pc 0.01
7 Spring pin(2) TXX-12.7*70 Group 0.08
8 Bolt LS-M8*25 Pc 0.01
9 Washer HQ-TK-DP Pc 0.2
10 Compression spring HQ-TK-YSTH Pcs 0.2
11 Upper latch body HQ-TK-TKJ Pc 2.2
12 Link(2) HQ-TK-LJB Pair 0.12
13 Latch(2) HQ-TK-TKB Pair 0.66
14 Spring pin TXX-12.7*50 Pc 0.03
15 Landing shoulder HQ-TK-XGH Pc 0.15
16 Seal valve HQ-TK-MFF Pc 0.02
17 Lower latch body HQ-TK-XGJT Pc 2.3
18 Stover lock nut HQ-TK-TJLM Pc 0.25
19 Spindle HQ-TK-ZZ Pc 2.7
20A Shut-off valve hard HQ-TK-FP Pc 0.05
20B Shut-off valve soft HQ-TK-FP-H Pc 0.05
21 Adjusting washer(2) HQ-TK-JGD Group 0.28
22 Bearing(2) ZC-569306 Group 0.35
23 Thrust ring HQ-TK-ZCHT Pc 0.25
24 Spindle bushing HQ-TK-ZCZ Pc 1.6
25 Bearing ZC-51305 Pc 0.17
26 Compression spring HQ-TK-ZZTH Pc 0.3
27 Lock nut ZSLM-M24 Pc 0.1
28 Inner tube cap Assembly HQ-TK-NGJTZC Pc 3.07
28A Inner tube cap HQ-TK-NGJT Pc 2.8
28B Grease fitting ZYZ-M6*1 Pc 0.01
28C Ball(2) GQ-22 Group 0.08
28D Check valve body HQ-TK-FYG Pc 0.18
