Product Details:
|
| Model Number: | DLG-HTW | Type: | Overshot For Wireline Core Drilling |
|---|---|---|---|
| Standard: | BTW NTW HTW | Product Name: | Core Overshot Assembly |
| Application: | Wire Line Core Drilling | Color: | Black |
| Package: | Wooden Box Package | Series: | DCDMA Wire Line TW Series |
| Weight: | 13.70kg | ||
| High Light: | tw series mining drilling tools,surface wireline borehole mining drilling tools,tw series wireline core barrel |
||

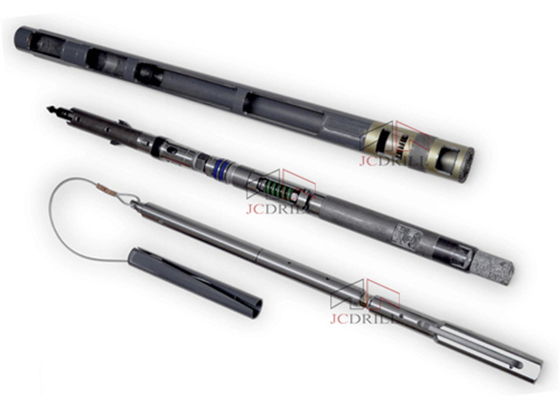

Double Tube Mining Drilling Tools TW Series Core Barrel For Surface Wireline Borehole Drilling
>> Introduction

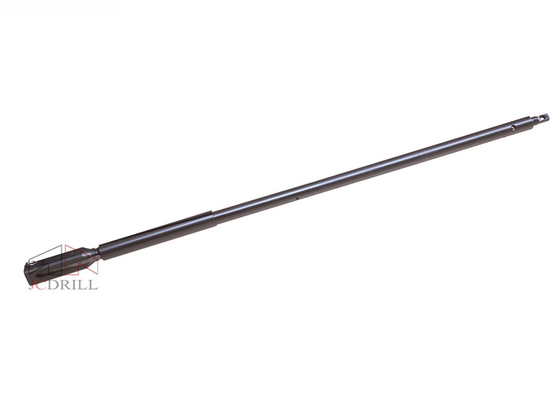

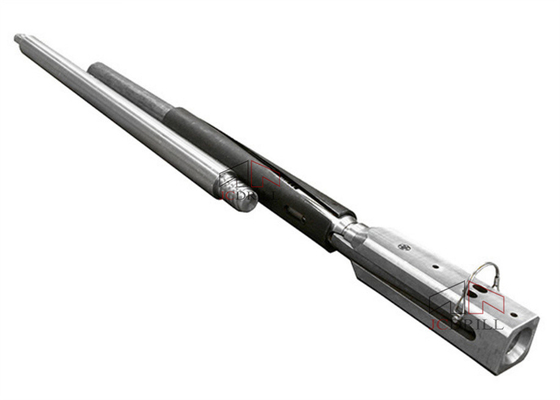

Overshot is a necessary device in wireline drilling. It's dropped on a cable and directly couples onto and lift up the inner tube assembly, eliminating the need to couple and uncouple the rod string each time the core is retrieved.
Ezy Lock Overshot is a modified product based on compact overshot. It protects against accidental release of the core barrel. This is ideal for suface application when hoisting above ground. TW series overhshot are available in BTW,NTW and HTW size.
>> HTW Overshot Assembly structure diagram
| ID# | Item | Decription | Unit | Weight(Kgs) |
| 1-25 | Overshot | DLQ-HTW | Set | 13.70 |
| 1 | Eye bolt | D-NQ-XZ | Pc | 0.10 |
| 2 | Cable swivel collar | D-NQ-ZT | Pc | 0.15 |
| 3 | Inner ring | D-NQ-ZCT | Pc | 0.01 |
| 4 | Bearing | ZQ-51102 | Pc | 0.02 |
| 5 | Plain washer | PDQ-12 | Pc | 0.01 |
| 6 | Lock nut | ZSLM-M12 | Pc | 0.05 |
| 7 | Cable swivel body | D-NQ-ZNQ | Pc | 2.46 |
| 8 | Crease Fitting | ZYZ-M6*1 | Pc | 0.01 |
| 9 | Jar tube | D-NQ-LJT | Pc | 2.80 |
| 10 | Locking sleeve | D-NQ-TKG | Pc | 2.30 |
| 11 | Jar bar | D-NQ-LG | Pc | 1.00 |
| 12 | Stover lock nut | D-NQ-TJLM | Pc | 0.06 |
| 13 | Adjusting washer | D-NQ-TZDP | Group | 0.02 |
| 14 | Overshot cap | D-NQ-XYG | Pc | 0.05 |
| 15 | Overshot Spring | D-NQ-YSTH | Pc | 0.03 |
| 16 | Overshot Sleeve | D-NQ-SJT | Pc | 0.25 |
| 17 | Overshot Head | D-NQ-LGJ | Pc | 2.50 |
| 18 | Set screw | JDLD-M10*6 | Pc | 0.01 |
| 19 | Ball(2) | GQ-8.7 | Group | 0.02 |
| 20 | Lifting dog spring(2) | D-NQ-LGTH | Group | 0.01 |
| 21 | Guiding sleeve | D-NQ-DXT | Pc | 1.10 |
| 22 | Round pin | D-NQ-YZX | Pc | 0.08 |
| 23 | Spring pin | TXX-6*45 | Pc | 0.01 |
| 24 | Lifting dog(2) | D-NQ-DLG | Pc | 0.60 |
| 25 | Stop hppk and pin | D-NQ-GDXG | Pc | 0.02 |
| 25A | Stop hook | D-NQ-DLG | Pc | 0.01 |
| 25B | Stop pin | D-NQ-GDXG | Pc | 0.01 |
