Btw Diamond Core Drilling Tools Api Standard Overshot Assembly

Btw Diamond Core Drilling Tools Api Standard Overshot Assembly
Btw Diamond Core Drilling Tools Api Standard Overshot Assembly Btw Diamond Core Drilling Tools Api Standard Overshot Assembly Btw Diamond Core Drilling Tools Api Standard Overshot Assembly Btw Diamond Core Drilling Tools Api Standard Overshot Assembly

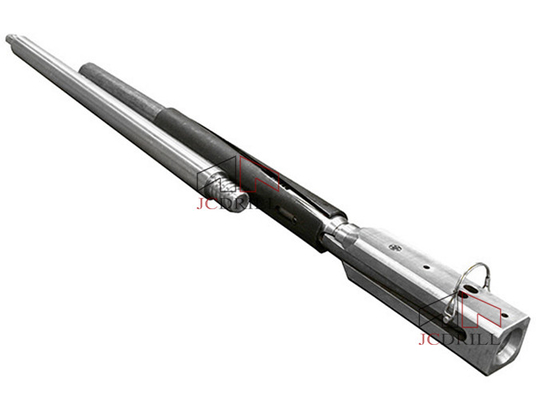

Large Image :  Btw Diamond Core Drilling Tools Api Standard Overshot Assembly

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: DLG-NTW
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Delivery Time: 15 To be negotiated
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000 Set/Sets per Year

Btw Diamond Core Drilling Tools Api Standard Overshot Assembly

Description
Model Number: DLG-NTW Type: Overshot For Wireline Core Drilling
Standard: BTW NTW HTW Product Name: Core Overshot Assembly
Application: Wire Line Core Drilling Color: Black
Package: Wooden Box Package Series: DCDMA Wire Line TW Series
Weight: 12.56kg
High Light:

btw diamond core drilling tools

,

btw overshot assembly

,

api standard overshot assembly

API Standard Overshot Assembly For Sale /overshot With Grapples Core Borehole Driling
>> Introduction

Overshot is a necessary device in wireline drilling. It's dropped on a cable and directly couples onto and lift up the inner tube assembly, eliminating the need to couple and uncouple the rod string each time the core is retrieved.

Ezy Lock Overshot is a modified product based on compact overshot. It protects against accidental release of the core barrel. This is ideal for suface application when hoisting above ground. TW series overhshot are available in BTW,NTW and HTW size.

Btw Diamond Core Drilling Tools Api Standard Overshot Assembly 0

>> NTW Overshot Assembly structure diagram

ID# Item Decription Unit Weight(Kgs)
1-24 Overshot DLQ-NTW Set 12.56
1 Eye bolt D-NQ-XZ Pc 0.10
2 Cable swivel collar D-NQ-ZT Pc 0.15
3 Inner ring D-NQ-ZCT Pc 0.01
4 Bearing ZC-51102 Pc 0.02
5 Plain washer PDQ-12 Pc 0.01
6 Lock nut ZSLM-M12 Pc 0.05
7 Cable swivel body D-NQ-ZHC Pc 2.46
8 Crease Fitting ZYZ-M6*1 Pc 0.01
9 Jar tube D-NQ-LJT Pc 2.80
10 Locking sleeve D-NQ-TKG Pc 2.30
11 Jar bar D-NQ-LG Pc 1.00
12 Stover lock nut D-NQ-TJLM Pc 0.06
13 Adjusting washer D-NQ-TZDP Group 0.02
14 Overshot cap D-NQ-XYG Pc 0.05
15 Overshot Spring D-NQ-YSTH Pc 0.03
16 Overshot Sleeve D-NQ-SJT Pc 0.25
17 Overshot Head D-NQ-LGJ Pc 2.50
18 Set screw JDLD-M10*6 Pc 0.01
19 Ball GQ-8.7 Group 0.02
20 Lifting dog spring(2) D-NQ-LGTH Group 0.01
21 Round pin D-NQ-YZX Pc 0.05
22 Spring pin TXX-6*45 Pc 0.01
23 Lifting dog(2) D-NQ-DLG Pc 0.60
24 Stop hppk and pin D-NQ-GDXG Pc 0.02
24A Stop hook D-NQ-DLG Pc 0.01
24B Stop pin D-NQ-GDXG Pc 0.01

>> Package & Shipment

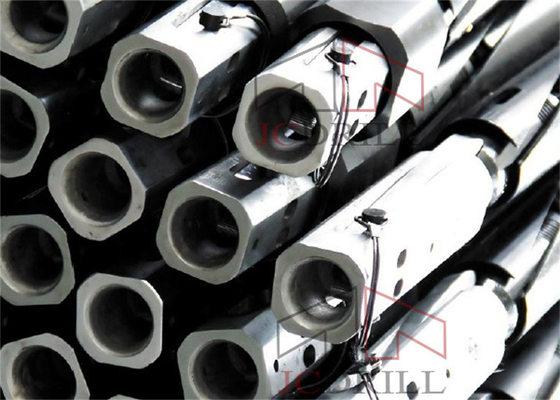

Btw Diamond Core Drilling Tools Api Standard Overshot Assembly 1
>> About Us


JCDRILL provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.



We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network, which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.



With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
