|Model Number:||TWD200 DTH Water Well Drilling Rig||Drilling Depth:||200m|
|Drilling Diameter:||355mm||Drill Pipe Length:||3000mm 4500mm|
|Usage:||Drilling Water Well||Drilling Methold:||DTH Drilling MUD Drilling|
|Engine Power:||77KW Or Others||Mud Pump:||BW250/BW450|

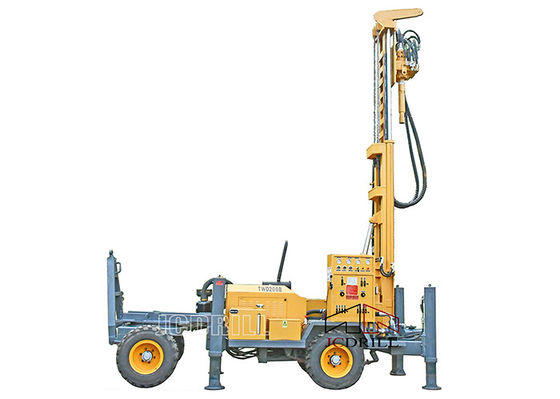

DTH Diesel Engine Full Hydraulic Borehole Water Well Drill Rig
TWD Series Multi-functional trailer mounted water well drilling rig is a efficient,multi-function full hydraulic water welldrilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.
>> TWD series trailer mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
>> TWD series deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
77KW,4Cylinder,water cooling Diesel Engine
Famous Brand Hydraulic System
Fast Rotation Speed
>> Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
|Geology drilled||All Kind||All Kind|
|Drill system and operation||Hydraulic||Hydraulic|
|Drill pipe diameter||mm||76/89/102||76/89/102|
|Drill pipe length||mm||3000||3000|
|Max.Pull back Capacity||T||12||14|
|lifting force of Winch||T||1.2(Optional)||1.5|
|Diesel Engine type||4Cylinder,water cooling||4Cylinder,water cooling|
|Diesel Engine Brand||Quanchai||Yuchai|
|Rated Horse power||Kw||55||77|
|Compressor required (Optional)|
|Trailer Type||4 wheels trailer,front wheels with steering|
|Mobility||Towed by pickup or light truck|
