500m Hydraulic Dth Track Mounted Reverse Circulation RC Drilling Rig

Description
Model Number: JRC500 Application: RC Reverse Circulation Drilling
Drilling Depth: 500m Drilling Diameter: 105-350mm
Drill Rod: 3000mm Rock Hardness: F=8-16
Rotation Speed: 0-100rpm Working Pressure: 1.05-2.4Mpa
Air Consumption: 11.3-21 M³/min Feed Stroke: 3.66m
Rotary Torque: 8500-10000N.m Dust Collector: Wet & Dry Optional
Pull Back Capacity: 28Ton Name: 500m Hydraulic Dth Track Mounted Reverse Circulation Drilling Rig
High Light:

dth reverse circulation drilling rig

,

track mounted rc drilling rig

,

500m reverse circulation drilling rig

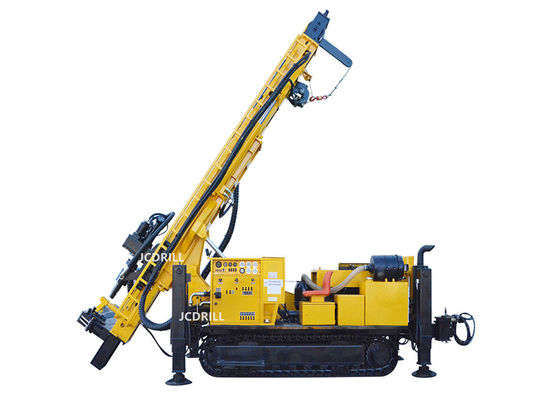

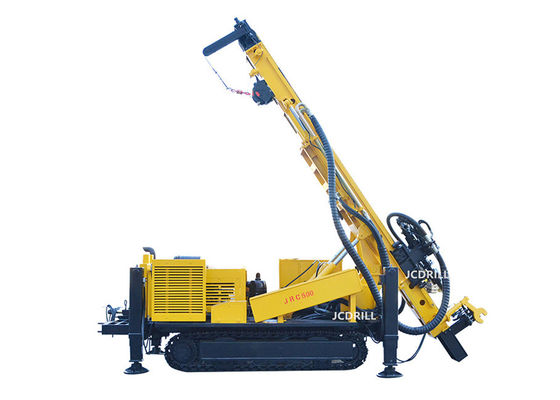

JRC500 Hydraulic DTH track mnounted reverse circulation mining rc drilling rig



The rc drilling is to use a pneumatic hammer to drive a tungsten steel drill bit to break the rock formation. A pneumatic reciprocating piston repeatedly called a hammer, which in turn drives a tungsten steel drill bit that is used to break hard rock. When the compressed air is blown out, the pressure deviation will produce a reverse circulation, so that the cuttings will enter the inner tube upward. When the cuttings reach the ground, they are connected to the cyclone separator through a hose for sample reduction, and then the sample falls into the sample bag from the bottom opening. These sample bags are marked with the location and depth of the collected samples and can be transported directly to the laboratory for analysis.

500m Hydraulic Dth Track Mounted Reverse Circulation RC Drilling Rig 0

Application

JRC500 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.

The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction .

500m Hydraulic Dth Track Mounted Reverse Circulation RC Drilling Rig 1500m Hydraulic Dth Track Mounted Reverse Circulation RC Drilling Rig 2500m Hydraulic Dth Track Mounted Reverse Circulation RC Drilling Rig 3

Specifiction

1 Geology drilled   All kinds
2 Drilling Type   DTH & RC
3 Drill system and operation   Hydraulic
4 Hole Diameter mm Φ90—Φ400
5 Hole Depth m 500
6 Rotation Torque KN 85-100
7 Rotation Speed rpm 0-80 1st Gear
0-160 2nd Ger
8 Drill pipe diameter mm 76/89/114
9 Drill pipe length mm 4/4500
10 Max. Feed Speed M/min 18
11 Max. Lifting Speed M/min 5-20
12 Feed Stroke mm 3400
13 Max. Lifting force T 28
14 Lifting force of Main winch(Optional) T 4
15 Lifting force of hoist T 1.5
16 Lifting height of tool winch m 100
17 Diesel Engine type CUMMINS
18 Rated Horse power Kw 180
19 Electrical System Volt 24
20 Compressor Type Rotary Screw/Movable
21 Pressure Required Mpa 1.05—4.5
22 Air consumption m³/min 16—60
23 Net Weight T 13
24 Shipping Length mm 7550
25 Shipping Width mm 2260
26 Shipping Height mm 2700
27 Ground Clearance mm 300
28 Volume of Flow mm 20

Characteristics

1: Diesel engine mounted hydraulic system,all the system include the walking,rotation,feed,lifting,Leg,lifting, compensation system,rod change is hydraulic.

2: Reverse circulation system working together with DTH technology,air compressor provice pressed air for impact and dust collect.

3. During working,use the reverse circulation hammer,double tube,pressed air enter between two tube and dust out from the inner tube.

4. Also it’s available to positive circulation use normal drilling tool.

5. The working system composed of feed system,guide(mast),rotary head, compensation system, centralizer,rod exchange cystem, winding and so on.

6. Axes pressure,feed speed,rotary speed is adjustable.

7. The walking system is a self-walking system,convient for moving,wich could install four hydraulic leg,when load on truck,it doesn’t need hiking up,it can load on truck directly.

8. Four hydraulic leg use for keep the balance of the drilling during working.

9. The sub winding could hoisting Max.1ton drilling tool,it also could help to rod change.

10.The guide(mast) could working in 45°-90°,guide have a extention system,which ensure the guide could moving toward the drilling surface,to keed the balance of the guide.

11. Gradienter,angle lable and centralizer to ensure the precision accuracy of hole.

12. The air system have a special lubrication system to lubricating the hammer to extend the service life.
