Product Details:
|
Model Number: | JRC300 | Application: | RC Reverse Circulation Drilling |
---|---|---|---|
Drilling Depth: | 300m | Drilling Diameter: | 105-350mm |
Drill Rod: | 3000mm | Rock Hardness: | F=8-16 |
Working Pressure: | 1.05-2.4Mpa | Air Consumption: | 11.3-21 M³/min |
Feed Stroke: | 3.66m | Rotary Torque: | 8500N.m |
Pull Back Capacity: | 12Ton | Name: | 300m DTH Track Mounted Reverse Circulation Rock Drilling Equipment |
Highlight: | reverse circulation rock drilling equipment,track mounted rock drilling equipment,300m rock drilling equipment |

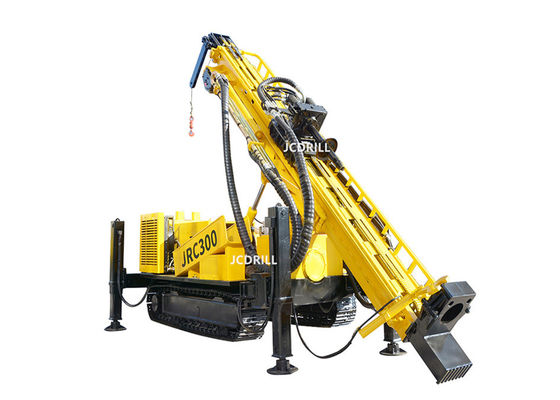

JRC300 Good price hydraulic DTH track mnounted reverse circulation RC drilling rig
The type of RC Drilling Rig, for small and medium open-pit mining , quarrying and infrastructure construction projects, and research and develop a efficient , energy-saving advanced drilling equipment. It inherits the advantages of other rc drilling rigs , while injecting a new design concept, so it has many features, such as easy to maintain, walking safely and stably.
Specification
mm | 76/89/102/114/127 | ||
10 | RC Drill pipe diameter | mm | 102/114/127 |
11 | Drill pipe length | mm | 3000 |
12 | Max. Feed Speed | M/min | 5-30 |
13 | Max. Lifting Speed | M/min | 5-18 |
14 | Feed Stroke | mm | 3400 |
15 | Max. Lifting force | T | 12 |
16 | Lifting force of Main winch(Optional) | T | 4 |
17 | Lifting force of tool winch | T | 1.5 |
18 | Lifting height of tool winch | m | 7.5 |
19 | Diesel Engine type | CUMMINS | |
20 | Rated Horse power | Kw | 112 |
21 | Electrical System | Volt | 24 |
22 | Type | Open | |
23 | Diameter | mm | 300 |
24 | Clamping Force | KN | 157 |
25 | Clamping Rod Diameter | mm | 76-219 |
26 | Net Weight | T | 13 |
27 | Shipping Length | mm | 7550 |
28 | Shipping Width | mm | 2260 |
29 | Shipping Height | mm | 2700 |
30 | Hydraulic Leg Feed Stroke | mm | 600 |
31 | Gradeability | ° | 21 |
32 | Ground Clearance | mm | 300 |
33 | Volume of Flow | mm | 200 |
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
