|Model Number:||JRC300||Application:||RC Reverse Circulation Drilling|
|Drilling Depth:||300m||Drilling Diameter:||105-350mm|
|Drill Rod:||3000mm||Rock Hardness:||F=8-16|
|Rotation Speed:||0-100rpm||Working Pressure:||1.05-2.4Mpa|
|Air Consumption:||11.3-21 M³/min||Feed Stroke:||3.66m|
|Rotary Torque:||8500N.m||Dust Collector:||Wet & Dry Optional|
|Pull Back Capacity:||12Ton||Diesel Engine Type:||CUMMINS|
|DTH Drill Pipe Diameter:||76/89/102/114/127mm|
multipurpose Rock Drilling Rig,
CUMMINS Rock Drilling Rig,
300 meters Rock Drilling Rig

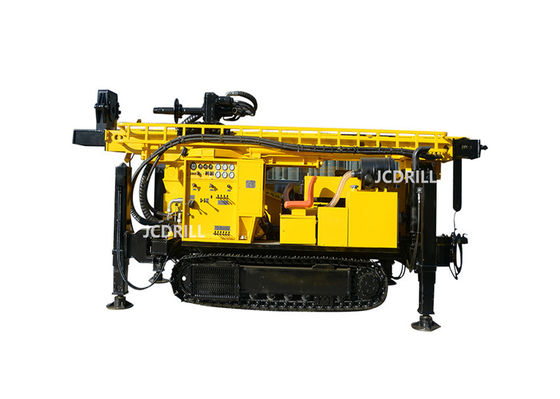

JRC300 Multi-purpose hydraulic DTH crawler reverse circulation RC drilling machine
RC drilling obtains cuttings samples, not cores. The principle of drilling is to use a pneumatic hammer to drive a tungsten steel drill bit to break the rock formation. A pneumatic reciprocating piston repeatedly called a hammer, which in turn drives a tungsten steel drill bit that is used to break hard rock. When the compressed air is blown out, the pressure deviation will produce a reverse circulation, so that the cuttings will enter the inner tube upward. When the cuttings reach the ground, they are connected to the cyclone separator through a hose for sample reduction, and then the sample falls into the sample bag from the bottom opening. These sample bags are marked with the location and depth of the collected samples and can be transported directly to the laboratory for analysis.
|1||Geology drilled||All kinds|
|2||Drilling Type||DTH & RC|
|3||Drill system and operation||Hydraulic|
|7||Rotation Speed(Forward rotation)||rpm||0-40 1st Gear|
|0-80 2nd Ger|
|8||Rotation Speed(Revise rotation)||rpm||40 1st Gear|
|80 2nd Ger|
|9||DTH Drill pipe diameter||mm||76/89/102/114/127|
|10||RC Drill pipe diameter||mm||102/114/127|
|11||Drill pipe length||mm||3000|
|12||Max. Feed Speed||M/min||5-30|
|13||Max. Lifting Speed||M/min||5-18|
|15||Max. Lifting force||T||12|
|16||Lifting force of Main winch(Optional)||T||4|
|17||Lifting force of tool winch||T||1.5|
|18||Lifting height of tool winch||m||7.5|
|19||Diesel Engine type||CUMMINS|
|20||Rated Horse power||Kw||112|
|25||Clamping Rod Diameter||mm||76-219|
|30||Hydraulic Leg Feed Stroke||mm||600|
|33||Volume of Flow||mm||200|
JRC300 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction.
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
