|Hole Depth:||200m||Drill System:||Hydraulic|
crawler mounted drill rig,
construction drilling equipment

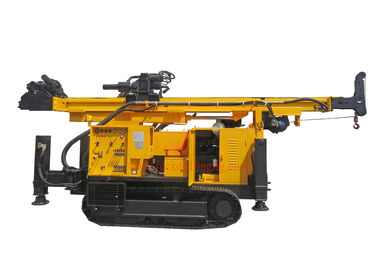

JRC200 hydraulic crawler mounted reverse circulation ( RC ) drilling rig
JRC200 reverse circulation drilling rig is a new multi-purpose, high-efficiency, environmental protection, multi-track-type rig, which uses the latest foreign gas lift reverse circulation drilling technology, rock dust can be effectively collected through a dust collector to avoid environmental pollution.You can also collect slagging cyclone separator can be used in geological prospecting department of sampling analysis.It is a geological exploration drilling, drilling wells, monitoring wells, ground source heat pump air-conditioning and other deep hole of choice for equipment.
The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction .
1.Diesel engine mounted hydraulic system, all the system include the walking, rotation, feed, lifting, Leg, lifting, compensation system, rod change is hydraulic.
2:Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.
3.During working, use the reverse circulation hammer, double tube, pressed air enter between two tube and dust out from the inner tube.
4.Also it's available to positive circulation use normal drilling tool.
5.The working system composed of feed system, guide(mast),rotary head, compensation system, centralizer, rod exchange system, winding and so on.
6.Axes pressure, feed speed, rotary speed is adjustable.
Standard sea transportation package or packed as customer's requirement
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment and one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
Jincheng provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of “Survival by quality, Development by credit’’.
We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “JINCHENG” a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.
With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
