Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield
Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield

Large Image :  Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield

Product Details:
Place of Origin: China (Mainland)
Brand Name: JCDRILL
Certification: ISO9001,CE
Model Number: All Models
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: $5.00 - $50.00/pc
Packaging Details: Iron shelf
Delivery Time: 3-15 work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000000pcs/year

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield

Description
Parts Name: DTH Drill Pipes Brand: JCDRILL
Color: Customized Factory Visit: Support
Sample Order: Support Usage: Mining ,water Well ,blasting
High Light:

dth button bits

,

down the hole hammer bits

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield

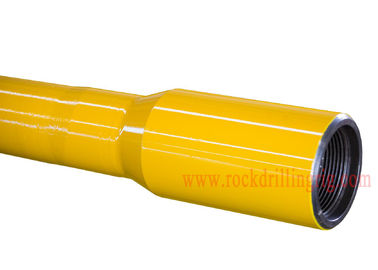

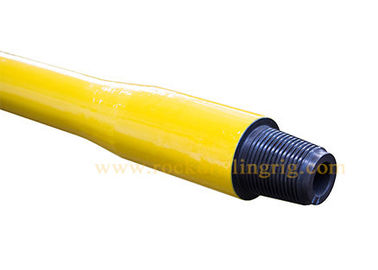

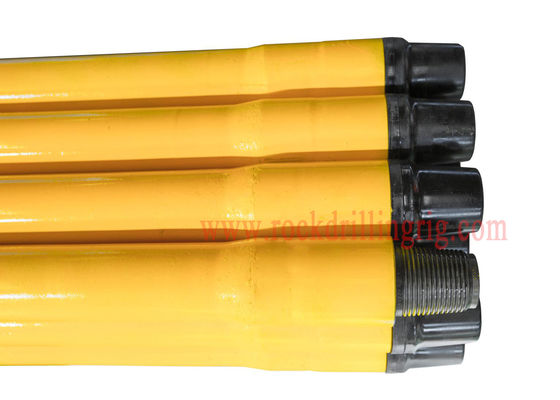

JCDRILL DTH Drill Pipe
Description

This DTH drill pipe, the shortened form of down the hole drill pipe, is a kind of outer flat drill rod. It is mainly used in rotary percussive drilling that contains gases and liquids. Its main components include pipe (rod) body and joint.

Our down the hole drill pipe is manufactured based on the API standards. And according to specific requirements, we also provide this kind of TH drill pipe in different Chinese and American specifications.

As for its advantages, it has features of big rigidity, good sealing capacity, flat outer structure, and low torque and resistance when rotating.

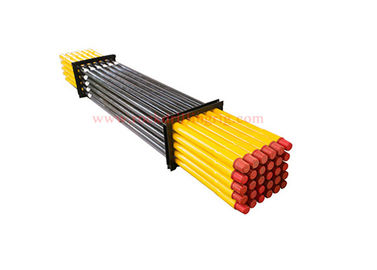

As to the packaging, a bundle of DTH drill pipes will be packed by one set of steel frame, and a bundle will have 30 to 40 drill pipes.

Xuanhua Jinke Drilling Machinery Co.,Ltd is a leading manufacturer of down the hole drill pipe in China. Besides DTH drill pipe, we still supply clients worldwide with DTH hammer bits, DTH hammer, DTH drilling tool, tungsten carbide, and so on. Both ISO9001: 2000 and API 5DP certificates are available for our products, and our products have been quite popular among clients from Mongolia, Kazakhstan, Russia, Iran, Afghanistan, Oman, Turkey, Thailand, Vietnam, Myanmar, Malaysia, Indonesia, Singapore, Taiwan, Colombia, Mexico, Brazil, Canada, Australia, etc. Besides, OEM service is also available.

If you need, please contact us freely.

Specification

Product: Friction Welded drill rods,dth drill pipe

1.Size: 2-3/8"(60mm)---5" (127mm)

2.Steel grade: E75 X95 G105 S135

3.Tool connection: 2-3/8" API Reg pin & box,2-7/8"IF,3-1/2"IF, 4"FH

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 0

Drill pipe is hollow, thick-walled piping that transmits drilling fluid and torque through the wellbore to the drill bit on a drilling rig. It is manufactured to withstand severe internal and external pressure, distortion, bending, and vibration as it both rotates and lifts the bottom hole assembly (BHA). Drill pipe is threaded on each end in a section of pipe referred to as the tool joint. It is manufactured, sampled, tested, and inspected in accordance with standard specifications such as the American Petroleum Institute (API).

Technical Parameters of DTH Drill Pipe (Outer Flat Drill Rod):

Diameter Length Wrench Flats Threads
50-194mm 500-10700mm 40,57,65,75,83,95mm F42×10 F48×10 2 3/8''API REG 2 7/8''API REG 3 1/2''API REG 2 3/8''API IF 3 1/2”BECO 4”BECO 4 1/2”BECO 5 1/4”BECO

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 1

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 2

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 3

Application

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 4

Factory

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 5

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 6

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 7

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 8

Process sheet

Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 9

Business Information

Minimum Order Quantity: N/A
Price: Negotation
Packaging Details: Standard Export Delivery Package
Delivery Time: 7days
Payment Terms: T/T,Western Union
Supply Ability: Based on Detailed Order

Certification
Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 10
Delivery
Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 11
Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 12
FAQ
1. Shipping time for an order
     We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
   Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
   We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
Mining / Water Well DTH API Drill Pipe Customized Color In Oilfield 13
