Water Well Deep Hole Rotary Pneumatic Drilling Hammer With Foot High Air Pressure

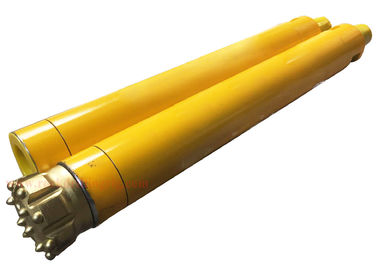

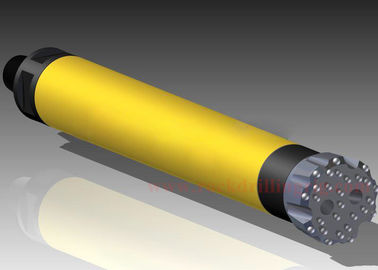

JCDRILL DTH Hammer
Description
The DTH is the abbreviation of Down The Hole and sometimes it is also called RAB in some markets, then the RAB is short for Rotary Air Blasting.
A rotation drill rig, air compressor and the DTH drill string are the essential unit for DTH drilling while the “DTH drill string” is always made up of DTH drill rods, DTH hammer and DTH bits. As one of key component, the DTH hammer acts as a role of converting the air pressure to the impact energy, simultaneously transferring impact energy and rotation force to DTH bits.
As specialist manufacturer and provider of DTH drilling tools, hereby we recommend our newest generation DTH hammer which is improved by absorbing art technology, selecting superior alloy steel and robust design. It is proved by more than thousands times of test that our newest DTH hammer has longer life , lower air consumption and 15% higher penetration speed compared the conventional DTH hammer in the market. In addition, it can work at the air pressure from 6 Bar to 35 Bar(0.6~ 3.5Mpa). At last, we developed various type of DTH hammer which can be compatible with DHD, COP, QL, MISSION and SD shank of DTH bits and performs very well. Therefore, the newest generation DTH Hammer is very popular among our customers and has a good market share as soon as it launched in the market.
Characteristics
It is a kind of valveless high air pressure DTH hammer with foot valve.
The rock hammer has the fellow advantages
1: Valveless air distribution. more reliable.
2. The rock impacter are simple design of the piston, long life.
3. More efficient energy transfter,faster drilling speed, lower air consumption and lower oil consumption.

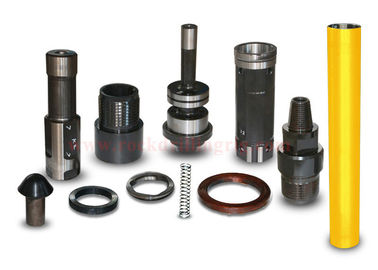

4. Fewer internal parts, simple structure, long life, less failure and easier to maintain because all the parts are heat treated.
5. Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected multi-step thread.
Application
| Model | External Diameter | Bit Shank | Hole Range | Working Pressure | Air Consumption | |
| HD35 | 82mm | DHD3.5 | 90-110mm | 1.0-1.5Mpa | 1.0-1.5Mpa | 4.5-9m3/min |
| HD45 | 99mm | COP44 DHD340 | 110-135mm | 1.2-2.5Mpa | 1-2.4Mpa | 6-15m3/min |
| HSD4 | 99mm | SD4 | 110-135mm | 1.2-2.5Mpa | 1-2.4Mpa | 6-15m3/min |
| HQL4 | 99mm | QL40 | 110-135mm | 1.2-2.5Mpa | 1-2.4Mpa | 6-15m3/min |
| HD55 | 125mm | COP54 DHD350R | 135-155mm | 1.2-2.5Mpa | 1-2.4Mpa | 9-23m3/min |
| HD55C | 125mm | HD55C DHD350Q | 135-155mm | 1.0-2.5Mpa | 1-2.4Mpa | 9-23m3/min |
| HSD5 | 125mm | SD5 | 110-135mm | 1.0-2.5Mpa | 1-2.4Mpa | 9-23m3/min |
| HQL5 | 125mm | QL50 | 135-155mm | 1.0-2.5Mpa | 1-2.4Mpa | 9-23m3/min |
| HD65 | 142mm | COP64 DHD360 | 110-135mm | 1.0-2.5Mpa | 1-2.4Mpa | 10-28.5m3/min |
| HSD6 | 142mm | SD6 | 155-190mm | 1.0-2.5Mpa | 1-2.4Mpa | 10-28.5m3/min |
| HQL6 | 146mm | QL60 | 155-190mm | 1.0-2.5Mpa | 1-2.4Mpa | 10-28.5m3/min |
| HD85 | 180mm | COP84 DHD380 | 110-135mm | 1.0-2.5Mpa | 1-2.4Mpa | 15-34m3/min |
| HSD8 | 180mm | SD8 | 110-135mm | 1.0-2.5Mpa | 1-2.4Mpa | 15-34m3/min |
| HQL8 | 180mm | QL80 | 195-254mm | 1.0-2.5Mpa | 1-2.4Mpa | 15-34m3/min |
| HSD10 | 226mm | SD10 | 254-311mm | 1.0-2.5Mpa | 1-2.4Mpa | 22-55m3/min |
| HN100 | 226mm | NUMA100 | 254-311mm | 1.0-2.5Mpa | 1-2.4Mpa | 22-60m3/min |
| HN1120 | 275mm | DHD1120 | 305-445mm | 1.0-2.5Mpa | 1-2.4Mpa | 30-78m3/min |
| HSD12 | 275mm | SD12 | 305-445mm | 1.0-2.5Mpa | 1-2.4Mpa | 30-78m3/min |
| HN120 | 275mm | HUMA120 | 305-445mm | 1.0-2.5Mpa | 1-2.4Mpa | 30-78m3/min |
| HN125 | 275mm | NUMA125 | 305-445mm | 1.0-2.5Mpa | 1-2.4Mpa | 30-78m3/min |
DTH hammers specifications:
| Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 1-3" Middle-low pressure DTH hammers |
BR1 BR2 BR3 |
RD40 box RD50 box API 2 3/8" Reg |
Φ64-Φ76mm Φ70-Φ90mm Φ90-Φ110mm |
0.7-1.75Mpa | 0.7 Mpa | 4.5 m3/min |
| 1.0 Mpa | 4 m3/min | |||||
| 1.4 Mpa | 5 m3/min | |||||
| 3" hammers | DHD3.5 COP32/COP34 M30 |
API 2 3/8"Reg | Φ90-Φ110mm | 1.0-1.5Mpa | 1.0 Mpa | 4.5 m3/min |
| 1.5 Mpa | 9 m3/min | |||||
| 4" hammers | DHD340 COP44 QL40 SD4 M40 |
API 2 3/8"Reg | Φ105-Φ130mm | 1.0-2.5Mpa | 1.0 Mpa | 6 m3/min |
| 1.8 Mpa | 10 m3/min | |||||
| 2.4 Mpa | 15 m3/min | |||||
| 5" hammers | DHD350 COP54 QL50 SD5 M50 |
API 2 3/8"Reg API 3 1/2"Reg |
Φ130-Φ156mm | 1.0-2.5Mpa | 1.0 Mpa | 9 m3/min |
| 1.8 Mpa | 15 m3/min | |||||
| 2.4 Mpa | 23 m3/min | |||||
| 6" hammers | DHD360 COP64 QL60 SD6 M60 |
API 3 1/2"Reg | Φ152-Φ203mm | 1.0-2.5Mpa | 1.0 Mpa | 10 m3/min |
| 1.8 Mpa | 20 m3/min | |||||
| 2.4 Mpa | 28.5 m3/min | |||||
| 8" hammers | DHD380 COP84 QL80 SD8 M80 |
API 4 1/2"Reg | Φ200-Φ279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| 1.8Mpa | 26m3/min | |||||
| 2.4Mpa | 34m3/min | |||||
| 10" hammers | SD10 NUMA100 |
API 6 5/8"Reg | Φ254-Φ330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| 1.8Mpa | 40m3/min | |||||
| 2.4Mpa | 55m3/min | |||||
| 12" hammers | DHD1120 SD12 NUMA120 NUMA125 |
API 6 5/8"Reg | Φ305-Φ381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| 1.8Mpa | 56m3/min | |||||
| 2.4Mpa | 78m3/min | |||||
