Product Details:
|
| Parts Name: | Rock Drill Rods | Application: | Mining, Blasting,road Construction Hole Drilling |
|---|---|---|---|
| Processing Type: | Forging | Brand: | JCDRILL |
| Mining Object: | Granite, Marble, Sandstone,limestone | Length: | Customization |
| High Light: | tapered drill rod,rock drill steel,integral drill rods |
||

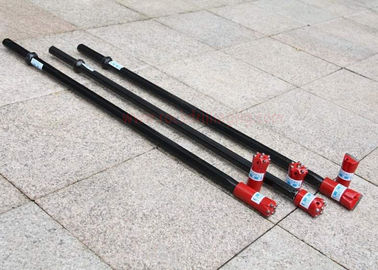

JCDRILL Mining Tunnelling Rock Drill Rods Support Extension Rod With Double Side
JCDRILL Thread Rock Drill Rods
JC Extension drill rods are made from the same steels as , produced by CNC maching and advanced heat treatment, we are able to supply full range of extension rods in different lengths with various threads shown as below.
Thread size: R22,R25,R32, R38, T38, T45, T51.
Rod size: Round 32, Round 39, Round 46, Round 52.
Length: 915mm to 5450mm.
JCDRILL Thread Drill Rods
|
Extension rod
|
|||
|
R22
|
HEX
|
800mm/1200mm/1600mm
|
2ft/3ft/5ft
|
|
R25
|
HEX
|
915mm/1220mm/1525mm/1830mm/2435mm/3050mm
|
3ft/4ft/5ft/6ft/8ft/10ft
|
|
R32
|
HEX
|
915mm/1220mm/1525mm/1830mm/3050mm/3660mm
|
3ft/4ft/5ft/6ft/10ft/12ft
|
|
T38
|
ROUND
|
3050mm/3660mm
|
10ft/12ft
|
|
T45
|
ROUND
|
3050mm/3660mm/4265mm
|
10ft/12ft/14ft
|
|
T51
|
ROUND
|
3660mm/4265mm/6095mm
|
12ft/14ft/20ft
|
|
FM rod
|
|||
|
R32/R32
|
ROUND
|
915mm/1220mm/1525mm/1830mm/3050mm/3660mm
|
3ft/4ft/5ft/6ft/10ft/12ft
|
|
T38/R32
|
ROUND
|
1830mm/3050mm/3660mm/4263mm/4875mm
|
6ft/10ft/12ft/14ft/16ft
|
|
T38/R35
|
ROUND
|
4305mm/4915mm/5525mm/6135mm
|
14ft/16ft/18ft/20ft
|
|
T38/R38
|
ROUND
|
3050mm/3660mm/4265mm
|
10ft/12ft/14ft
|
|
T45/T45
|
ROUND
|
1525mm/1830mm/3050mm/3660mm/4265mm/ 6095mm
|
5ft/6ft/10ft/12ft/14ft/20ft
|
|
T51/T51
|
ROUND
|
1525mm/1830mm/3660mm/4265mm/6095mm
|
5ft/6ft/12ft/14ft/20ft
|
Specification
