|Parts Name:||Integral Drill Rod||Material:||Carbon Steel|
|Application:||Mining, Blasting,road Construction Hole Drilling||Processing Type:||Forging And Casting|
|Other Name:||Integral Drill Steels||Machine Type:||Drilling Tool|
|Thread Protector:||Plastic, Metal, Rubber||Shank:||H22x108mm|
|Length:||400mm To 6000mm||Hole Diameter:||19mm To 41mm|
tapered drill rod,
rock drill steel,
integral drill rods

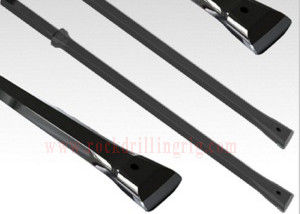

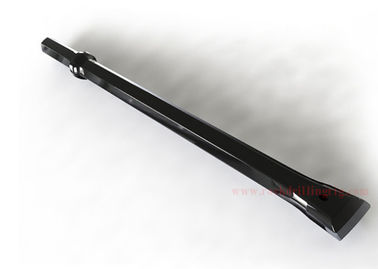

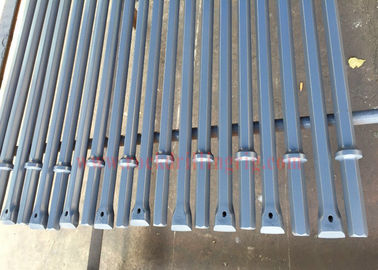

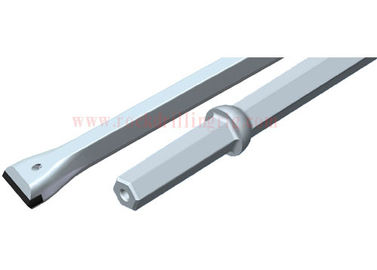

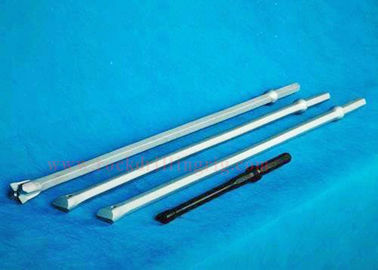

H19 H22 Integral Drill Rods , Integral Drill Steel 108mm Shank Rock Breaker
Integral Drill Steels: Integral Drill Steel is mainly used in small-hole drilling, such as stone quarrying, foundation drilling, tunneling, underground mining, road cutting, and trenching and so on, and equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, which can be used for drilling bore hole diameter from 23mm to 45mm usually.
1. The Integral rods strong energy of single impact and the low energy consumption in rock crushing;
2. The weight ratio of Piston and Bit almost reached 1:1 to provide long effective acting time, which
leads to the improved efficiency in rock crushing and the extended service life of the drilling tool;
3. The Integral rods good performance in central air exhaust and cuttings discharge, which reduces
the repeated crushing of rock;
4. A check valve device is available to drill holes under water.
The HR Series DTH Hammer, an ideal drilling tool, is widely used in such industries relating to
energy,transportation, metallurgy, building etc.
5. Tapered Button bits(7,11,12Degree), Diameters:32mm-50mm, Tips type:4tips or 7tips or 8tips,
Button or Ballistic tips
6. Thread button bits, Diameters from 45mm-102mm, Thread Type:R32,T38,T45,T51 Thread Tip
type: Button or Ballistic tips, Face type:Flat face or drop center
|Shank Style||Effective Length||Head Diameter|
|Hex19 × 108mm||400 ~ 4,000||1’ 4” ~ 13’ 1”||23 ~ 35||27/32 ~ 1 3/8|
|Hex22 × 108mm||400 ~ 9,600||1’ 4” ~ 31’ 6”||26 ~ 41||1 1/32 ~ 1 39/64|
|Hex25 × 108mm||600 ~ 6,400||1’ 11 5/8” ~ 21’||33 ~ 45||1 19/64 ~ 1 25/32|
|Hex25 ×159mm||800 ~ 6,400||2’ 7” ~ 21’||35 ~ 42||1 3/8 ~ 1 21/32|
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
|Every machine issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.||JCDRILL is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services|
1. Shipping time for an order
We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
Strict inspection and testing for every order before shipping out .
3. How to order
Shank Style + rod Length + Head Diameter.
4.How can we trust your company?
We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
