4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied

4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied
4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied 4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied

Large Image :  4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILL
Certification: ISO,CE
Model Number: 10"
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs/Year

4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied

Description
Model Number: 10" Type: Chevron Drag Bits
Usage: Oil Field, Natural Gas, Mining Drlling, Water Well Material: Tungsten Carbide
Application: Mining Drlling, Water Well Drilling Tooth Type: Insert Tooth
Thread: 4-1/2API REG Package: Carton And Wooden Case
Blades: 4 Wings PDC Cutter: High Strength Flat PDC
Processing Type: Forging Nspection: SGS,BV
High Light:

tricone drill bit

,

tricone rock roller bits

ISO CE certificatied 4 wings chevron drill bits for Big Diameter Mining / Water Well Srilling



Application

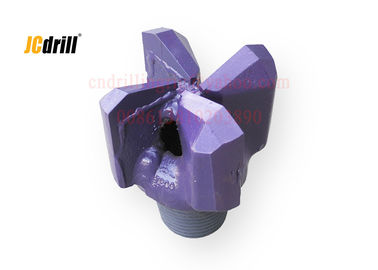

4 wings step drag bits are one piece construction of alloy steel cast with tungsten carbide cutting tips and gauge sides to ensure longer life. It has4 wings and 4 flushing holes. 4 wings step drag bits, are more durable and lasting than 3 wings step drag bits, because of cutting structure, but will penetrate more slowly. 4 wing step drag bits are more stable and tend toward drilling a straighter hole, as its 4 wings have more stable structure and do not make a deviation in the drilling.

4 wings step drag bits are economical tools when drilling softer geological formations and shallower depths, they are primarilydesigned for soft tomedium formations, such as Clay, Loam, Silt ,Mostsoft-to-medium soilsthat have some moisture, etc. And also step drag bits are recommended for drilling in Mining, Exploration, Environmental, Water well, Geo Exchange, etc.



The diameter and thread showed as above are usual size, other sizes are available upon request.

Thread size: 2 3/8'' API Reg, 2 7/8'' API Reg, 3 1/2'' API Reg, 4 1/2'' API Reg, 6 5/8'' API Reg, 2'' API IF, 2 3/8'' API IF, 2 7/8'' API IF, A Rod, N Rod, AW, BW, NW, AWJ, BWJ, NWJ.

Characteristics

1. A solid one piece heat treated, 4140 alloy steel body for bit strength & durability;
2. CNC threaded machining for proper installation &use;
3. Forgings are milled to better seat the carbide inserts.
4. Select tungsten carbide inserts 5.5mm thick are standard.
5. Relief is hand ground behind carbide inserts for maximum performance.

4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied 0

Specification

No. Bit Diameter Bit Design Type Part No
  inch mm Step / Chevron
1 2 1/2〞 64 S/C DB212S/DB212C
2 2 3/4〞 70 S/C DB234S/DB234C
3 2 15/16〞 75 S/C DB21516S/DB21516C
4 3〞 76 S/C DB3S/DB3C
5 3 1/8〞 79 S/C DB318S/DB318C
6 3 1/4〞 83 S/C DB314S/DB314C
7 3 1/2〞 89 S/C DB312S/DB312C
8 3 5/8〞 92 S/C DB358S/DB358C
9 3 3/4〞 95 S/C DB334S/DB334C
10 3 7/8〞 98 S/C DB378S/DB378C
11 4〞 102 S/C DB4S/DB4C
12 4 1/8〞 105 S/C DB418S/DB418C
13 4 1/4〞 108 S/C DB414S/DB414C
14 4 1/2〞 114 S/C DB412S/DB412C
15 4 5/8〞 117 S/C DB458S/DB458C
16 4 3/4〞 121 S/C DB434S/DB434C
17 4 7/8〞 124 S/C DB478S/DB478C
18 5〞 127 S/C DB5S/DB5C
19 5 1/8〞 130 S/C DB518S/DB518C
20 5 1/4〞 133 S/C DB514S/DB514C
21 5 1/2〞 140 S/C DB512S/DB512C
22 5 5/8〞 143 S/C DB558S/DB558C
23 5 3/4〞 146 S/C DB534S/DB534C
24 5 7/8〞 149 S/C DB578S/DB578C
25 6〞 152 S/C DB6S/DB6C
26 6 1/8〞 156 S DB618S
27 6 1/4〞 159 S DB614S
28 6 1/2〞 165 S DB612S
29 6 5/8〞 168 S DB658S
30 6 3/4〞 171 S DB634S
31 6 7/8〞 175 S DB678S
32 7〞 178 S DB7S
33 7 1/8〞 181 S DB718S
34 7 1/4〞 184 S DB714S
35 7 1/2〞 191 S DB712S
36 7 5/8〞 194 S DB758S
37 7 3/4〞 197 S DB734S
38 7 7/8〞 200 S DB778S
39 8〞 203 S DB8S
40 8 1/8〞 206 S DB818S
41 8 1/4〞 210 S DB814S
42 8 1/2〞 216 S DB812S
43 8 5/8〞 219 S DB858S
44 8 3/4〞 222 S DB834S
45 8 7/8〞 225 S DB878S
46 9〞 229 S DB9S
47 9 1/8〞 232 S DB918S
48 9 1/4〞 235 S DB914S
49 9 1/2〞 241 S DB912S
50 9 5/8〞 244 S DB958S
51 9 3/4〞 248 S DB934S
52 9 7/8〞 251 S DB978
53 10〞 254 S DB10S
54 12〞 305 S DB12S
55 12 1/4〞 311 S DB1214S
56 15〞 381 S DB15S
57 17 1/2〞 445 S DB1712S

Packing& Delivery                                                                                                                                            ​

4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied 1 4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied 2

Service

4 Wings Chevron Drill Bits For Mining / Water Well Drilling ISO CE Certificatied 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
