| Model: | YGL-100Q | Rock Hardness: | F=6-20 |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Usage: | Anchor Drilling,construction |
| Drilling Depth: | 40-150m | Drilling Diameter: | 130-250mm |
| Air Consumption: | 11.3-25m3/min | Drill Pipe Length: | 3000mm |
| Hole Angle Range: | 0-90° | Rotary Speed: | 30-80 R/min |
| Rotary Torque: | 6000N.m | Power: | 57kw |
| Weight: | 6100Kgs | Drill Rod Dia.: | 76mm,89mm,102mm |
| Gradeability: | 24° | Feed Stroke: | 3.66m |
| Size: | 6900×2200×2200mm | DTH Hammer: | DHD3.5,Ql-40 DHD340 DHD350Q DHD360 |
| Highlight: | crawler mounted drill rig,construction drilling equipment |
||
Long Feeding Stroke Crawler Drilling Rig , Full Hydraulic Construction Drilling Equipment YGL-100Q
Diesel engine&electric motor drive available
Application

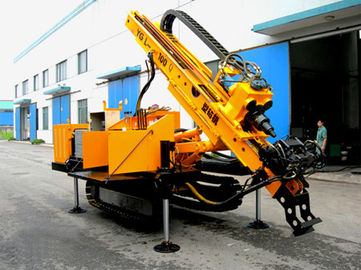

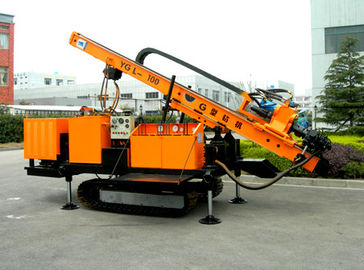

YGL-100Q Crawler Anchor Drilling rig is a kind of full hydraulic power head (top drive) multifunctional crawler drilling rig. This anchor Drilling rig can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse.
Characteristics
1. The great rotary torque and long feeding stroke distance of the engineering drilling rig make the speed of borehole faster, the disposal capability of accident better and efficiency of drilling work higher.
2. Extension mechanism in the output spindle of top drive power head protects drilling tools effectively.
3. The gearshift mechanism of top drive power head adopts the hydraulic shift method which has the strongpoint of the quickness, convenience, reliability, etc. of the gearshift.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
5. The chassis is of steel track with rotator, which makes the machine use easily.
6. Hydraulic elements are all selected from world famous brand products in order to achieve high reliability and performance stability.
7. It can be used with various drilling methods:
Non-cycle liquid dry auger drill
DTH hammer drill in rock layer by air
Mud circulation drill in sand soil layer
DTH hammer with tube drill in broken rock area by air
Specification
| 1 | Drilling depth (m) | 150 ~ 60 |
| 2 | Drilling diameter (mm) | Ф130 ~ 250 |
| 3 | Drill size (mm) | Ф89 × 2000, Ф127 × 2000 |
| 4 | Power head output speed (positive&negative) (rpm) | 37/74; 84/168 |
| 5 | Power head maximum output torque (Nm) | 6000 |
| 6 | Power head stroke (mm) | 2800 |
| 7 | Power head maximum pull force (kN) | 55 |
| 8 | Power Head biggest feeding force (kN) | 40 |
| 9 | Mast slip stroke (mm) | 500 |
| 10 | Gradeability (°) | 20 ° |
| 11 | Slewing angle (°) | 360 ° |
| 12 | Diesel Power (kW) | 75 |
| 13 | Motor Power (kW) | 37 |
| 14 | Rig outside dimensions (transport status) (mm) | about 5000 × 2000 × 2300 |
| 15 | Rig mass (kg) | about 4000 |
| 16 | Options | 1.high-speed fourth gear power head: 180rph |
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate
