Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole

Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole
Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole

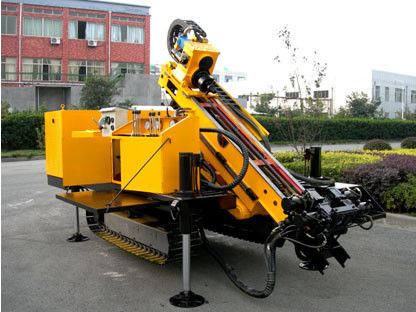

Large Image :  Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: YGL-50
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 2000Set/Year

Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole

Description
Model Number: YGL-50 Drill Rock Hardness: F=6-20
Type: Rotary Drilling Rig Usage: Anchor Drilling,construction
Drilling Depth: 50m Drilling Diameter: 130-200mm
Air Consumption: 16-40m3/min Drilling Pipe Length: 1500mm
Hole Angle Range: 0-90° Rotary Speed: 30-80 R/min
Rotary Torque: 2500N.m Voltage: 12V
Power: 57kw Weight: 2000Kgs
Drill Rod Dia.: 76mm,89mm,102mm
High Light:

anchor drilling rig

,

construction drilling equipment

Mini Multifunctional Crawler Anchor Drilling Rig for Hydro Power Station,Railway,Highway ,Drainage Hole YGL50

Diesel engine&electric motor drive available



Application

YGL-50(Q) drilling rig is a kind of full hydraulic power head (top drive) multifunctional crawler drilling rig. It can be applied in construction of big tonnage stress anchoring hole for hydro power station, railway, highway, drainage hole and geologic calamity fathering for landslide prevention and rock collapse.

Characteristics

1. The great rotary torque of the drilling rig makes the application wider, the borehole speed faster, the accident disposal capability better and drilling work efficiency higher.
2. Extension mechanism (Chinese patent number: ZL03222451.6) in the output spindle of top drive power head protects drilling tools effectively.
3. The gearshift mechanism of top drive power head adopts the hydraulic shift method which has the strongpoint of the quickness, convenience, reliability, etc. of the gearshift.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.
5. The rig is crawler mounted, which makes the machine move easily.
6. Hydraulic elements are all selected from world famous brand products in order to achieve high reliability and performance stability.
7. It can be used by various drilling methods, such as:
Non-cycle liquid dry auger drill

      DTH hammer drill in rock layer by air

      Mud circulation drill in sand soil layer

      DTH hammer with tube drill in broken rock area by air Compact construction, small size and light weight make it  available to use in narrow area.
8.   YGL-50Q drill rig has a special drill arm which can be adjusted to have different height of level during the drill work.

Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole 0

Specification

1 Hole Depth (m) 50
2 Hole Diameter(mm) Ф130~200
3 rill rod specification(mm) Ф89×1500,Ф127×1500
4 Power Head Output Rotation Speed(forward or reverse)(rpm) 40-98 rpm
5 Power Head Max. Output Torque(Nm) 2500NM
6 ower Head Feeding Stroke (mm) 1800mm
7 Max. Power Head Lifting Capability (kN) 30kN
8 Max. Power Head Thrust Force (kN) 15kN
9 Mast Sliding Compensating Stroke(mm) 500mm
10 Climb Ability (°) 20°
11 Diesel engine power (kW) 26
12 Overall dimension(transport state) (mm) 3850×1450×2000
13 Weight (kg) 2000

Packing& Delivery

Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole 1                       Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole 2

Service

Crawler Anchor Drilling Rig for Hydro Power Station / Railway / Highway / Drainage Hole 3

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate
