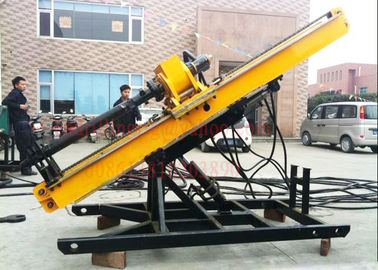

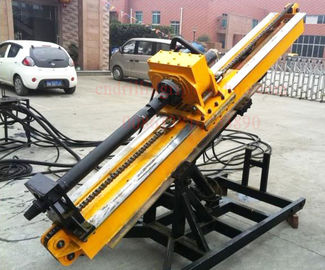

Multifunctional Construction Drilling Equipment Full Hydraulic Operated Top Drive

Description
Model Number: AK50 Drill Rock Hardness: F=6-20
Type: Rotary Drilling Rig Usage: Anchor Drilling,construction
Drilling Depth: 40-60m Drilling Diameter: 100 ~ 168mm
Air Consumption: 16-40m3/min Drilling Pipe Length: 1500mm
Hole Angle Range: 0-360° Rotary Speed: 30-60 R/min
Rotary Torque: 1500N.m Voltage: 12V
Power: 12kw Weight: 120Kgs
Highlight:

crawler mounted drill rig

,

construction drilling equipment

AK50 Front Mounted Adjustable Top Drive Drilling Rigs , Heavy Duty Pretension Anchor Hydraulic Drilling Machine

Diesel engine&electric motor drive available



Application

AK50 construction drilling rig is a full hydraulic operated top drive power head drill machine. It is applied to drill heavy duty pretension anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and grouting pile holes on roof of tunnel (gallery). It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes.

Characteristics

1. It has great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident.
2. Extension mechanism in the output spindle of top drive power head can protect drilling tools effectively. It can increase the hole inclination angle range and drill elevation angle holes, while setting the top drive power head and hole top plate toward the opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with hole site.
4. Rig structure is separate group design, it offers good disassembility , rapid and convenient mount and transport, better working environment and lower labor strength as well as remote control and operation.
5. Mast can be fixed on staging immediately without drill frame with auxiliary parts (horizontal axle and buckles), which makes it possible for greatly reducing rig weight and fast moving.
6. The hydraulic motor, pump are world famous brand products, other main assembly are preferentially selected home made reputed products with high quality. All these ensure the rig has stable running performance, reliable product quality and long service life. It has good interchangeability due to the high grade of standardization and seriesization of wearing parts.
7. Fully hydraulic drive and operation, stepless shift, simple operation, convenient maintanance and few wearing parts.
8. The rig is suitable for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling, etc.

Multifunctional Construction Drilling Equipment Full Hydraulic Operated Top Drive 0

Specification

Drilling depth 60 ~ 40 m
Drilling diameter ¢ 100 ~ 168 mm
drill specifications ¢ 73 × 1500 mm ¢ 89 × 1500 mm
Drilling tilt angle 0 ~ 120 °
power head output speed (positive and negative) 5 ~ 120 rpm
Rated output torque of the power head 2000 Nm
Power head stroke 1800 mm
mast slip stroke 500 mm
power head maximum pull force 30 kN
Power Head biggest feeding force 15 kN
hydraulic system rated pressure 20 Mpa
Motor Type Y180M-4 Power 18.5 kW
Host layman size 3000 × 1000 × 1500 mm
Rig weight 1000 kg
maximum part weight (excluding motor) 200 kg
