Product Details:
|
| Parts Name: | Sub Adapter | Type: | Hole Drilling |
|---|---|---|---|
| Material: | Stainless Steel, E75/R780/N80/L80 | Usage: | Well Drilling, Mining, Blasting |
| Thread: | Male/female | Length: | As Customers Requirement |
| Processing Type: | Forging | Machine Type: | Drilling Tool |
| Thread Protector: | Plastic, Metal, Rubber | Welding Technology: | Friction Welding |
| Highlight: | dth drill bits,down the hole hammer bits |
||

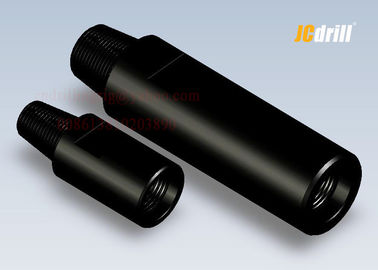

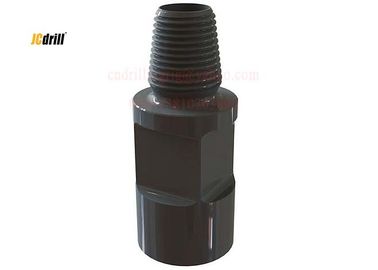

Male / Female Thread Drill Bit Adapter for Down Hole Drilling in Different Size
Application
The adaptor subs are used for connecting different size of rods or casings.
Adaptors are made of high quality alloy steel,now we have rod sub adapters include Box to Box(female to female), Box to Pin (Female to Male), Pin to Pin(Male to Male)in different size and thread.
Connections can be made as per clients' request.
Characteristics
1: Tool Joint: NC26, NC31, NC38, NC40, NC46, NC50
2: Type of Tool joint: NC, IF, FH, XH, REG
3. OD: 57mm-168mm
4. Tool joint material:40Cr, 45Mn2, 35CrMo, 4137H, etc.
5. Apply to connection 50mm drill rod Well Drilling,Geological drilling
Specification
1:Box to Box(female to female)
| Threads API REG | Length | Weight | Wrench Flats | Diameter(mm) | ||
| BOX | BOX | (mm) | (kg) | (mm) | A | B |
| 2 3/8''REG | 2 3/8''REG | 200 | 4.5 | 65 | 77 | 77 |
| 2 3/8''REG | 2 3/8''REG | 200 | 5.8 | 65 | 90 | 90 |
| 2 3/8''REG | 2 3/8''IF | 220 | 6.0 | 65 | 90 | 90 |
| 2 3/8''REG | 2 7/8''REG | 225 | 6.2 | 65 | 90 | 90 |
| 2 3/8''REG | 2 7/8''IF | 220 | 6.0 | 65 | 90 | 90 |
| 2 3/8''IF | 3 1/2''REG | 210 | 10.5 | 95 | 90 | 115 |
| 2 3/8''IF | 2 3/8''IF | 230 | 6.2 | 65 | 90 | 90 |
| 3 1/2''REG | 2 3/8''IF | 200 | 9.0 | 95 | 115 | 90 |
| 3 1/2''REG | 2 7/8''REG | 230 | 10.0 | 95 | 115 | 90 |
| 3 1/2''REG | 2 7/8''IF | 220 | 10.0 | 95 | 115 | 90 |
| 3 1/2''REG | 3 1/2''REG | 220 | 10.5 | 95 | 115 | 115 |
| 3 1/2''REG | 4 1/2''REG | 240 | 18.0 | 120 | 115 | 146 |
2.Box to Pin (Female to Male)
| Threads API REG | Length | Weight | Wrench Flats | Diameter(mm) | ||
| BOX | Pin | (mm) | (kg) | (mm) | A | B |
| 2 3/8''REG | 2 3/8''REG | 140 | 4.0 | 65 | 77 | 77 |
| 2 3/8''REG | 2 3/8''REG | 140 | 5.5 | 65 | 90 | 90 |
| 2 3/8''REG | 2 3/8''IF | 144 | 5.5 | 65 | 90 | 90 |
| 2 3/8''REG | 2 7/8''REG | 130 | 8.0 | 65 | 95 | 95 |
| 2 3/8''REG | 3 1/2''REG | 120 | 10.5 | 95 | 90 | 102 |
| 2 3/8''IF | 2 3/8''REG | 164 | 6.8 | 65 | 90 | 90 |
| 2 7/8''REG | 2 3/8''REG | 154 | 6.5 | 65 | 90 | 90 |
| 2 7/8''REG | 3 1/2''REG | 120 | 11.0 | 95 | 90 | 115 |
| 3 1/2''REG | 2 3/8''REG | 219 | 12.5 | 95 | 115 | 90 |
| 3 1/2''REG | 2 3/8''IF | 160 | 10.5 | 95 | 115 | 115 |
| 3 1/2''REG | 2 7/8''REG | 160 | 10.8 | 95 | 115 | 115 |
| 3 1/2''REG | 2 7/8''IF | 160 | 10.8 | 95 | 115 | 115 |
| 3 1/2''REG | 3 1/2''REG | 160 | 10.5 | 95 | 115 | 115 |
| 4 1/2''REG | 3 1/2''REG | 235 | 10.5 | 95 | 146 | 115 |
| F48×10 | F42×10 | 203 | 4.6 | 40 | 59 | 59 |
| F48×10 | F48×10 | 203 | 5.0 | 40 | 59 | 59 |
| F48×10 | 2''REG | 203 | 5.2 | 40 | 59 | 59 |
3.Pin to Pin(Male to Male)
| Threads API REG | Length | Weight | Wrench Flats | Diameter(mm) | ||
| BOX | Pin | (mm) | (kg) | (mm) | A | B |
| 2 3/8''REG | 2 3/8''REG | 70 | 5.0 | 65 | 90 | 90 |
| 2 3/8''REG | 3 1/2''REG | 97 | 9.0 | 95 | 90 | 115 |
| 3 1/2''REG | 3 1/2''REG | 90 | 10.0 | 95 | 115 | 115 |
| 2 3/8''REG | 2 7/8''REG | 152 | 8.0 | 70 | 90 | 90 |
| 3 1/2''REG | 4 1/2''REG | 240 | 10.5 | 120 | 115 | 140 |
| 4 1/2''REG | 4 1/2''REG | 255 | 11 | 120 | 146 | 146 |
