Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2

Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2
Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2 Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2 Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2

Large Image :  Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2

Product Details:
Place of Origin: China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: BW850/2
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock or according quantity
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 20000Set/Year

Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2

Description
Model Number: BW850/2 Type: Gear Pump
Application: Hole Drilling Power Type: Diesel/Hydraulic/Electric
Material: Metal / Coil Flow: 850L/min
Pressure: 2-3Mpa Dimension: 1000*995*650mm
Liner Diameter: 85mm 65mm Weight: 760kgs
High Light:

mud pumps for drilling rigs

,

water well mud pump

Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2



Application

Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2 0

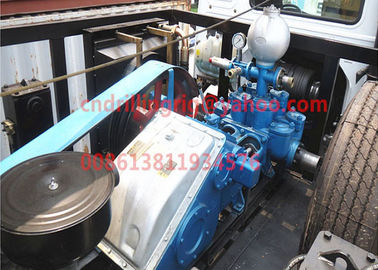

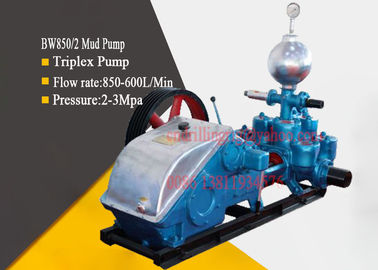

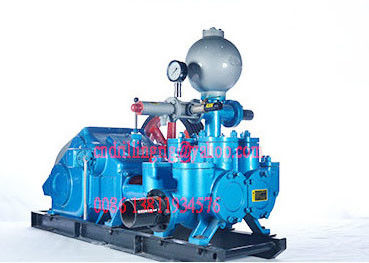

BW850 deep hole drilling hydraulic plunger triplex heavy duty slurry pump

BW850/2 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.



BW850/2 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.

BW850/2 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters driling rig,it also can be used cement perfusion.


They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

Characteristics

BW850/2 mud pumps horizontal, two-cylinder, double-acting, drive with built-in gear reducer and are designed to discharge washing liquid (water, mud) in the hole in exploration and stratigraphic drilling for oil and gas. Mud pumps are also widely used in the food, chemical and construction industries for pumping various non-aggressive liquids.



When drilling, use the pump BW850/2 for supplying washing liquid. To operate this pump may be at different temperatures (from-50 C to +40 C). The washing liquid may be water or various emulsion, a basic requirement for which is:Density,viscosity,the amount of sand,the number of cuttings.


Equipped with ball valves pump BW850/2 can be used for pumping a variety of complex solutions, which must have certain parameters:Density,viscosity,solid particles in the composition.

Specification
Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee



Model No.: BW850/2
Cylinder diameter 150 mm
Piston Stroke 180 mm
Number of Strokes 82, 58 Num./min
Displacement 850, 600 litre/min
Pressure 2.0, 3.0 mpa
Speed of V-Belt wheel 470 rpm
Power input 40/54 kW (hp)
Diameter of suction pipe 127mm (5”)
Diameter of discharge pipe 63.5 mm (2-1/2”)
Overall dimensions (LxWxH) 2000 x 1030 x 1400 mm
Weight 1450 kg

Packing& Delivery​

Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2 1

Service

Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2 2

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process​                                                                                                                                                Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2 3Deep Hole Drilling Mud Pump , Hydraulic Plunger Triplex Heavy Duty Slurry Pump BW850/2 4
