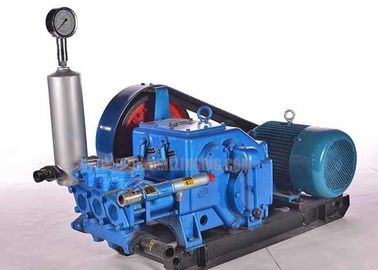

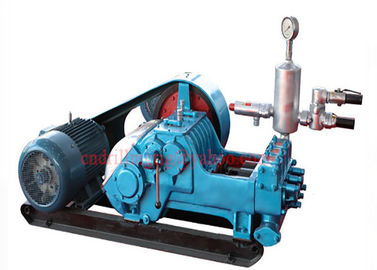

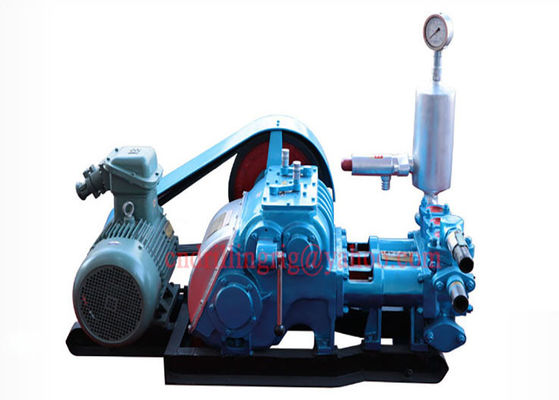

High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered

High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered
High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered

Large Image :  High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered

Product Details:
Place of Origin: China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: BW200
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock or according quantity
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 20000Set/Year

High Pressure Triplex Drilling Mud Pump with Diesel / Hydraulic / Electric Powered

Description
Model Number: BW200 Type: Gear Pump
Application: Hole Drilling Power Type: Diesel/Hydraulic/Electric
Material: Metal / Coil Flow: 200L/min
Pressure: 4Mpa Dimension: 1000*995*650mm
Liner Diameter: 85mm 65mm Weight: 760kgs
Highlight:

water well mud pump

,

triplex mud pump

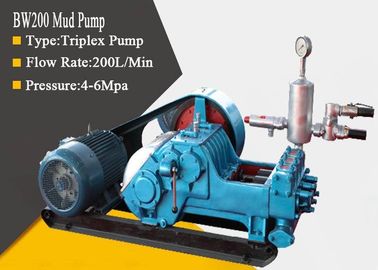

High Pressure Triplex Single Acting Drilling Mud Pump with Diesel / Hydraulic Power BW200



Application

BW200 deep hole drilling hydraulic plunger triplex heavy duty slurry pump

BW200 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.



BW200 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.

BW200 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters driling rig,it also can be used cement perfusion.


They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

Characteristics

1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Exploration: Coal mining exploration, Ore exploration;

3. Water well : Small hole diameter water well drilling;

4. Pipe-installing : Geothermal pipe-installing for heat pump;

5. Foundation piling: Small-diameter hole foundation piling drilling.

Specification
Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee

No. Model Unit BW200
1 Type   Horizontal double cylinder reciprocating double acting piston pump
2 Cylinder quantity   2
3 Cylinder diameter mm 80:65
4 Travel (mm) mm 85
5 Pump Speed Time/min 145
6 Rate of flow L/min 200 125
7 Pressure Mpa 4 6
8 Speed r/min 530
9 Pitch of belt pulley mm 385
10 Belt pulley mm B type,five solts
11 Power   Diesel engine
12 Egnine Brand   Changchai
13 Engine Model   ZS1105
14 Engine Power KW 13.2
15 Suction pipe dia.(mm) mm φ65 mm
16 Scupper pipe dia. mm φ37 mm
17 Dimensions(L×W×H) mm 1050×630×820
18 Weight Kg 480



Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
