Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling

Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling
Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling

Large Image :  Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling

Product Details:
Place of Origin: Hebei,China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: T45
Payment & Shipping Terms:
Minimum Order Quantity: 5Pcs
Price: Negotation
Packaging Details: Standard export package
Delivery Time: In stock or as order quantity
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram

Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling

Description
Parts Name: Thread Rock Drill Rod Material: Carbon Steel
Application: Mining, Blasting,road Construction Hole Drilling Processing Type: Forging
Other Name: Thread Drill Rod Machine Type: Drilling Tool
Thread Protector: Plastic, Metal, Rubber Shank: T45
Length: 600mm To 1200mm Hole Diameter: 48-80mm
Highlight:

integral drill rods

,

rock drill steel

T45 Threaded Drill Rod for Bench Drilling, Length 610mm - 6095mm for Hard Rock Drilling





Application

JCDRILL’ drifting and extension drill rods are for in drifting, tunneling, long-hole drilling, bench and production drilling industries. These rods are produced with round or hexagonal sections in all common thread designs, and in Male/Male (M/M) or Male/Female (M/F) connections. All our drifting and extension drill rods are heat-treated with carburization or high frequency, combinated with phosphorization



T45 Threaded Drill Rod for Bench Drilling are made by hollow drill steels; there are two shapes of extension rods, round type and hexagonal type. This hollow hole are usually named flushing hole, used for transmitting water or air during drilling. And the threads can be used for connecting couplings, shanks, couplings or bits.



Usually for extension rods, there are R22, R25, R28, R32,R3212, R38, T38, T45, T51, ST58, T60 threads, and different lengths of rods are available from 600mm to 6400mm usually.



Characteristics

Hexagonal cross sections rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing.

Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications.

With the longer steel tending to be larger in diameter, conventional extension steel is characterized by a duplicate thread on each end of the steel.



Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

Type: Hex. Drifter Rod, Extension Rod, Speed Rod, MF-Rod



Color: Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process



1. High precision in size and shape

2. Good low temperature toughness

3. Excellent comprehensive mechanical properties

4. High connection strength and sealability

5.  Large inside diameter of tool joint

6. High torque resistance

7. High fatigue strength and long fatigue life



Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling 0



Specification

T45 Thread rock drill rod

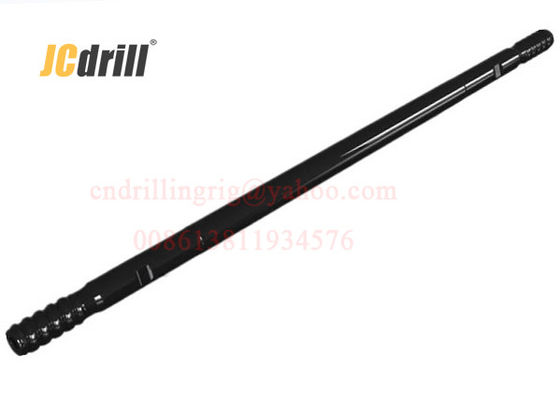

Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling 1Threaded Rock Drill Rods , T45 Drill Extension Rod For Bench Drilling 2



Support

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
