BQ NQ HQ PQ Diamond Core Drilling Tools Wireline Q threads Core Drilling Rod

Wireline Q threads Core Drilling Rod BQ NQ HQ PQ For Mining Exploration

Application

Q thread rods are the undisputed, worldwide choice for wireline coring drill rods.

2. thru-wall heat treated tube body
3. consistent concentricity, straightness
4. tapered threads

TUBING

• High quality alloy steel tubing

• Consistent concentricity, straightness and heat treatment

• All tubing available in DCDMA sizes

THREAD

• Tapered, course threads (3 threads per inch) provides easy make and break

• Load efficiency of 30% provides sufficient strength for average applications

THRU-WALL HEAT TREATMENT

• Provides 140% material strength

• Heat treated box threads significantly increases thread wear life

CASE HARDENING

• Significant research, development and field testing has resulted in a hardening process that is unmatched in the marketplace

• Pin thread crest is hardened to nominal 55 HRc to eliminate damaging ‘adhesion’ wear

• Eliminates the transfer of wear material back and forth which is what happens between threads of equal hardness, leading to large scale galling and joint seizing

Characteristics

Wireline Drill Rod

Description of Wireline Drill Rod:

This wireline drill rod is the equipment that connects the drilling tools and drilling bits, and it is mainly used to transmit power. It mainly consists of a tubing body and two thread ends.

The wireline drill rod features good wear resistance, optimal tensile strength capacity and good torsional property.

Concerning the packing, it is packaged by iron belts.

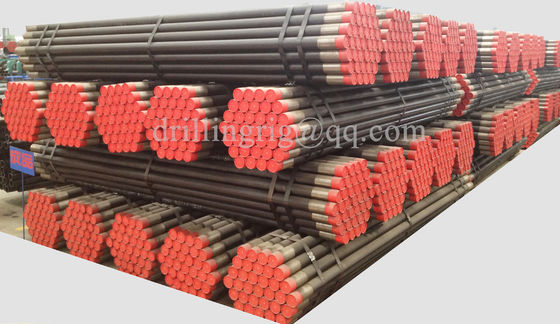

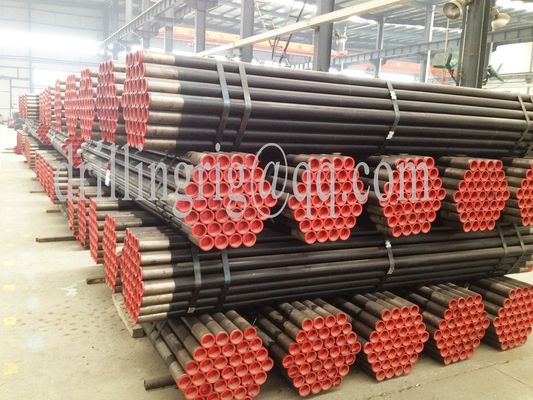

BQ Bundled Specifications (Steel Belt):

3.0m/10ft BQ Drill Rod (37 Pieces)

Dimensions (L×W×H): 3.0×0.4×0.4

Volume: 0.5 m3

Gross Weight: 670 kg

BQ Bundled Specifications (Iron Frame):

3.0m/10ft BQ Drill Rod (30 Pieces)

Dimensions (L×W×H): 3.0×0.35×0.3

Volume: 0.32 m3

Gross Weight: 550 kg

NQ Bundled Specifications (Steel Belt):

3.0m/10ft NQ Drill Rod (37 Pieces)

Dimensions (L×W×H): 3.0×0.5×0.5

Volume: 0.75 m3

Gross Weight: 900 kg

NQ Bundled Specifications (Iron Frame):

3.0m/10ft NQ Drill Rod (25 Pieces)

Dimensions (L×W×H): 3.0×0.38×0.39

Volume: 0.43 m3

Gross Weight: 610 kg

HQ Bundled Specifications (Steel Belt):

3.0m/10ft HQ Drill Rod (37 Pieces)

Dimensions (L×W×H): 3.0×0.625×0.625

Volume: 1.2 m3

Gross Weight: 1300 kg

HQ Bundled Specifications (Iron Frame):

3.0m/10ft HQ Drill Rod (25 Pieces)

Dimensions (L×W×H): 3.0×0.46×0.47

Volume: 0.65m3

Gross Weight: 890 kg

Specification

Packing& Delivery                                                                                                                                              ​

Service

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process                                                                                                                                              ​
