Product Details:
|
| Model Number: | AK60 | Drill Rock Hardness: | F=6-20 |
|---|---|---|---|
| Type: | Rotary Drilling Rig | Usage: | Anchor Drilling,construction |
| Drilling Depth: | 60m | Drilling Diameter: | 90-150mm |
| Air Consumption: | 16-40m3/min | Drilling Pipe Length: | 1500mm |
| Hole Angle Range: | 0-360° | Rotary Speed: | 30-60 R/min |
| Rotary Torque: | 1500N.m | Voltage: | 12V |
| Power: | 12kw | Weight: | 65Kgs |
| High Light: | crawler mounted drill rig,construction drilling equipment |
||

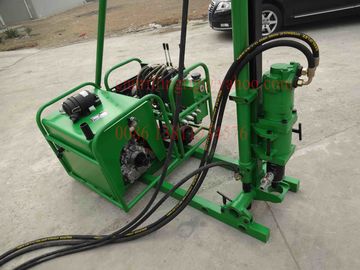

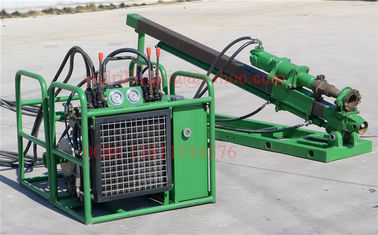

Light Weight Construction Engineering Anchor Drilling Down Hole Equipment ISO / CE AK60
Diesel engine&electric motor drive available
Application
AK-60 construction Anchor Drilling rig is a full hydraulic operated top drive power head drill. This engineering drilling rig is used to drill heavy duty pretension anchor hole at side slope of water power station, railway or highway projects, as well as drainage holes. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill small size water well and high- pressure jet grouting hole. Rig is already widely used in various projects such as water power stations situated in Yunnan, Guangxi, Sichuan, Guizhou and Hubei provinces, and expressways as well such as Ninbo-Taizhou-Wenzhou (in Zhejiang), Huangshan-Hangzhou (in Zhejiang), Dali-Baoshan (in Yunnan).It has become the first priority for medium-duty anchoring-reinforcing projects in China.
Characteristics
1. The construction drilling rig has great drilling capability, wide range of application , rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident.
2. Extension mechanism in the output spindle of top drive power head protects drilling tools effectively. It can increase the hole inclination angle range and drill elevation angle hole, while setting the top drive power head and hole top plate toward the opposite direction.
3. A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with working position.
4. Rig structure is separate group design, it assures good disassembility , rapid and convenient mount and transport, better working environment and lower labor strength as well as remote control and operation.
5. Mast can be fixed on staging immediately without drill frame with auxiliary parts (horizontal axle and buckles), which makes it possible for greatly reduce rig weight and fastener transport.
6. The imported hydraulic motor, other main assembly preferentially selected home made reputed and high quality products ensure its stable running performance, reliable product quality and long service life. It has good interchangeability due to the high grade of standardization and seriesization of wearing parts.
7. Full hydraulic drive and operate, stepless shift, simple operate, convenient maintain and few wearing parts.
8. It can be used with various drilling method such as carbide bit drilling, anger drilling, DTH hammer drilling, follow-up casing drilling etc.
Specification
| Drilling Capacity | AK60(Engine Power) |
| Type | Hydraulic(4part) |
| Hole depth | 60 m |
| Hole diameter | Φ70-Φ150 mm |
| Drilling rod(Diameter×Length ) | 76mm*1500m/89×1500 mm |
| Hole angle range | 0-360° |
| Output speed of top drive power head | 30-60 r/min |
| Output torque of top drive power head | 1500 Nm |
| Feeding stroke of top drive power head | 1800 mm |
| Mast slide stroke | 500 mm |
| Maximum lifting capacity of top drive power head | 40 kN |
| Maximum thrust force of top drive power head | 15 kN |
| Rated pressure of hydraulic system | 20 Mpa |
| Drilling guide type | Hydraulic Cylinder feed |
| Hydraulic Clamp | Available |
| Engine/Motor | KIPOR |
| Type | 4-stroke,direct injection |
| Cylinder | Two-cylinder,V-twin |
| Cooling System | air-cooled |
| Model | KD2V86F |
| Power | 12 kW |
| Working Speed | 3600rpm |
| Weight | 65kgs |

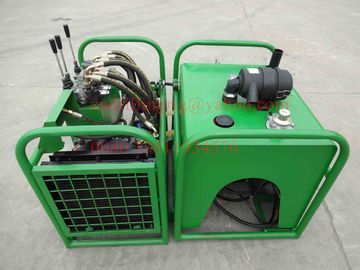

| Hydraulic system | Gear pump |
| Type | Gear pump(3 union pump) |
| Flow rate | 16/12/5L/min |
| Pressure | 18MPa |
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate
