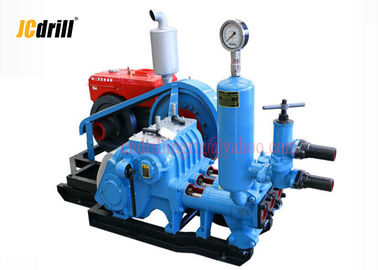

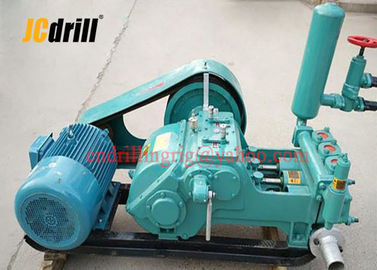

Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex

Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex
Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex

Large Image :  Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex

Product Details:
Place of Origin: China
Brand Name: JCDRILLS
Certification: ISO,CE
Model Number: BW250
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotation
Packaging Details: Standard export transportation package
Delivery Time: In stock or according quantity
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 20000Set/Year

Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex

Description
Model Number: BW250 Type: Gear Pump
Application: Hole Drilling Power Type: Diesel/Hydraulic/Electric
Material: Metal / Coil Flow: 250L/min
Pressure: 2.5Mpa Dimension: 1000*995*650mm
Liner Diameter: 85mm 65mm Weight: 760kgs
Highlight:

mud pumps for drilling rigs

,

triplex mud pump

Rotary Reciprocating Piston Pump , 2.5Mpa Triplex Single Acting Piston Pump



Application

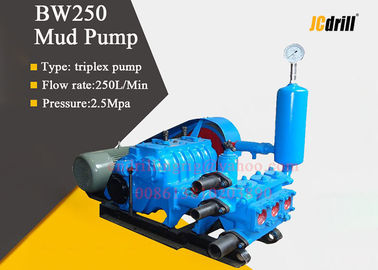

BW 250 water Drilling Mud Pump , 250L/min with 25bar triplex. single acting reciprocation piston pump
BW250 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.



BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.



Characteristics

1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Exploration: Coal mining exploration, Ore exploration;

3. Water well : Small hole diameter water well drilling;

4. Pipe-installing : Geothermal pipe-installing for heat pump;

5. Foundation piling: Small-diameter hole foundation piling drilling.

Specification
Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee



Name BW-250
Type Horizontal,Three-cylinder single-acting,
reciprocal piston pump
Stroke 100 mm
Liner Dia 80mm 65mm
Gears I II III IV I II III IV
Pump Speed 200 116 72 42 200 116 72 42
(times/min)
Displacement 250 145 90 52 166 96 60 35
(liter/min)
Pressure 2.5 4.5 6 6 4 6 7 7
(MPa)
Volume fraction 85%
Combined efficiency 72%
Input power 15 Kw
Triangle Type B ×5 Groove 410 mm
leather belt
pitch dia
Input speed 500 r/min
Max 2.5 m
Suction head
Suction φ76 mm
Pipe Dia
Discharge φ51 mm
Pipe Dia
Measurement 1100 × 995 × 650 mm
Weight 500 Kg

Packing& Delivery​

Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex 0

Service

Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex 1

In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.


We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process​                                                                                                                                                Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex 2Single Acting Reciprocation Piston Mud Pump For Water Well Drilling 25bar Triplex 3
